Product Overview

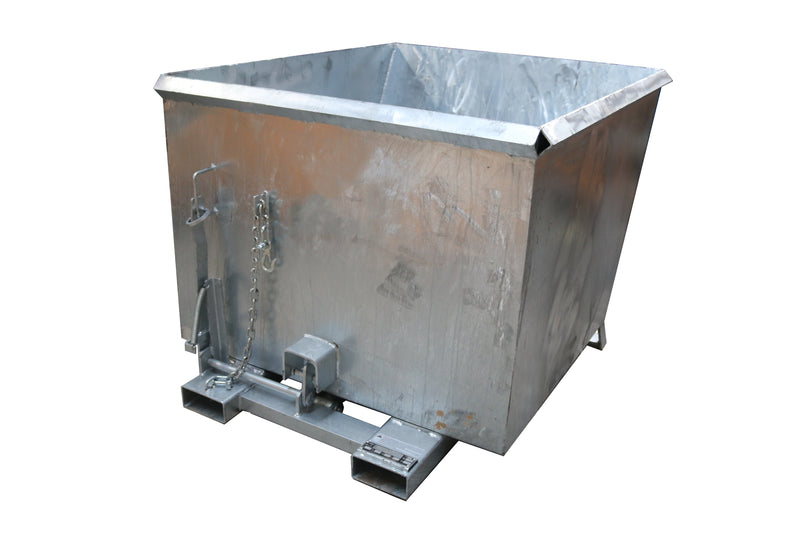

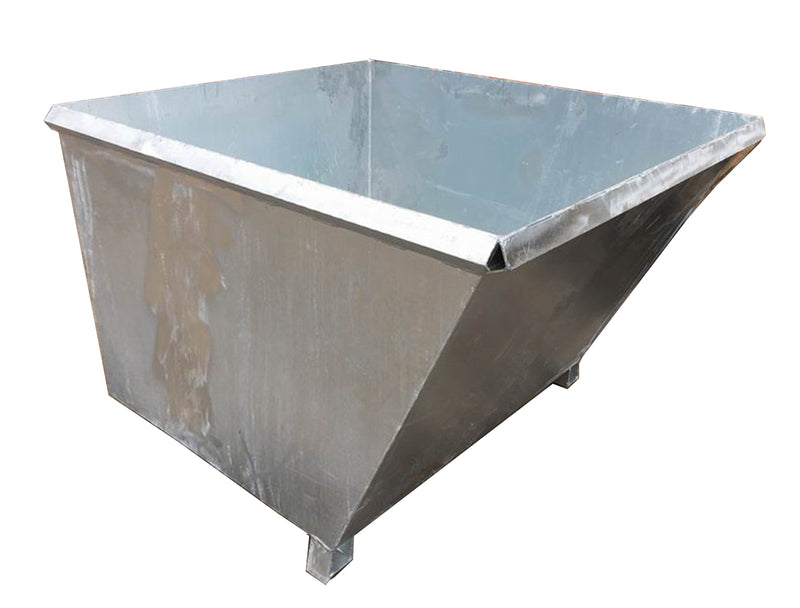

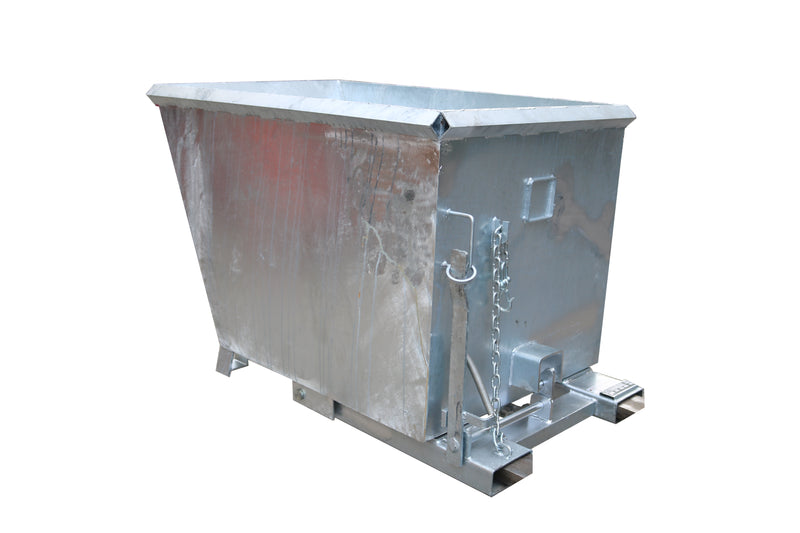

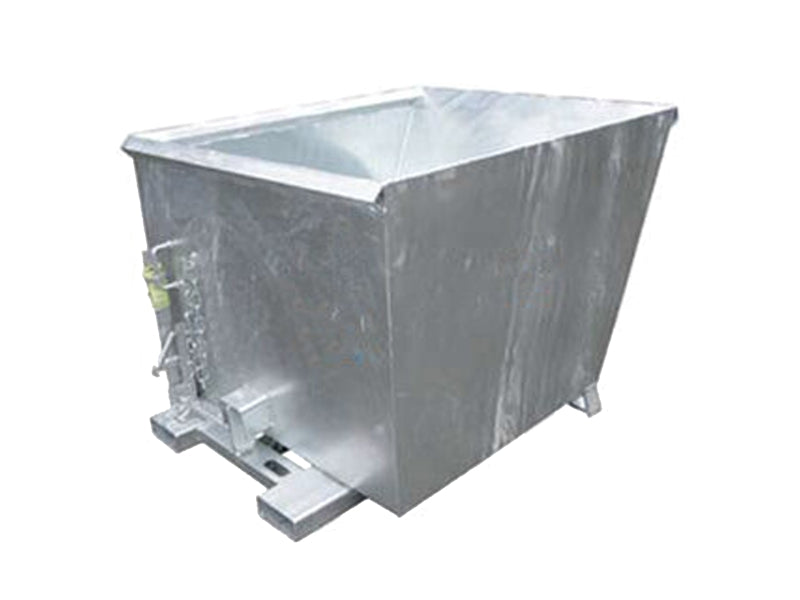

F-NTU Heavy-Duty Tip-Up Bin is manufactured from 3mm steel plate and fitted with fully reinforced edges.
These bins are ideally suited for heavy-duty waste, including metal, timber and construction site rubble.
The release mechanism is activated by the forklift operator pulling the pull cord from the driver’s seat.
All F‑NTU bins have a Safe Working Load (SWL) of 1000 kg and are available in sizes ranging from 0.7 to 2.0 cubic metres.
These bins are offered in either painted or galvanised finish.
Details
Features:
·Tipping Bin
·The custom built shock absorber prevents impact forces being transmitted to the forklift during emptying
Specifications:
|
Type |
SWL/kg |
Dimension(LWH)/mm |
Main Plate Thickness/mm |
Pocket Size(ab)/mm |
Pocket Centres/mm |
Volume/m³ |
Weight/kg |
|
F-NTU6 |
1000 |
1600×600×990 |
3 |
170×70 |
635 |
0.70 |
190 |
|
F-NTU9 |
1000 |
1600×900×990 |
3 |
170×70 |
635 |
1.00 |
210 |
|
F-NTU12 |
1000 |
1600×1200×990 |
3 |
170×70 |
635 |
1.35 |
225 |
|
F-NTU15 |
1000 |
1600×1500×990 |
3 |
170×70 |
635 |
1.70 |
255 |
|
F-NTU18 |
1000 |
1600×1800×990 |
3 |
170×70 |
635 |
2.00 |
280 |
Technical Drawing:
