Product Overview
The Hydraulic Bale Clamp Forklift Attachment is engineered for the efficient handling of soft-packaged materials, including waste paper bales, cotton bales, wool bales, and chemical fiber bags. Ideal for use in recycling centers, paper mills, warehouses, and logistics facilities, this bale clamp delivers reliable performance across a wide range of industrial applications.
Featuring a slim arm profile and optimized structural design, the attachment offers excellent operator visibility, minimal load loss, and superior clamping force — while keeping overall weight low for reduced strain on your forklift. The wide opening range of 490–2300 mm accommodates bales of various sizes, and the integrated side shift function provides precise load positioning without repositioning the forklift.
Built to Class 3A standards and compatible with 3–3.5T forklifts, this attachment requires 2 additional hydraulic circuits. Custom sizes are available upon request. Please confirm the actual load capacity with your forklift manufacturer prior to use.
Details
Features:
·Bale Clamp
·Requires 2 additional oil circuit for the forklift
Specifications:
|
Type |
Class |
Side Shift |
Dimension(WDH)/mm |
Opening Range (OR)/mm |
Operating Pressure/MPa |
Hydraulic Flow/LPM |
Weight/kg |
Suit Forklift/T |
|
F-BC(RT)3A30S-490/2300 |
3A |
Yes |
1599×1368×804 |
490-2300 |
16 |
60 |
715 |
3-3.5 |
Technical Drawing:

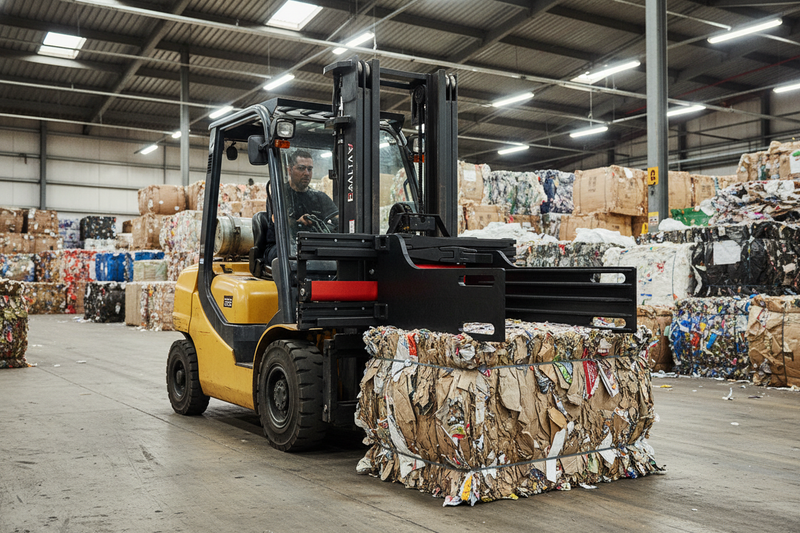

Scene graph:
