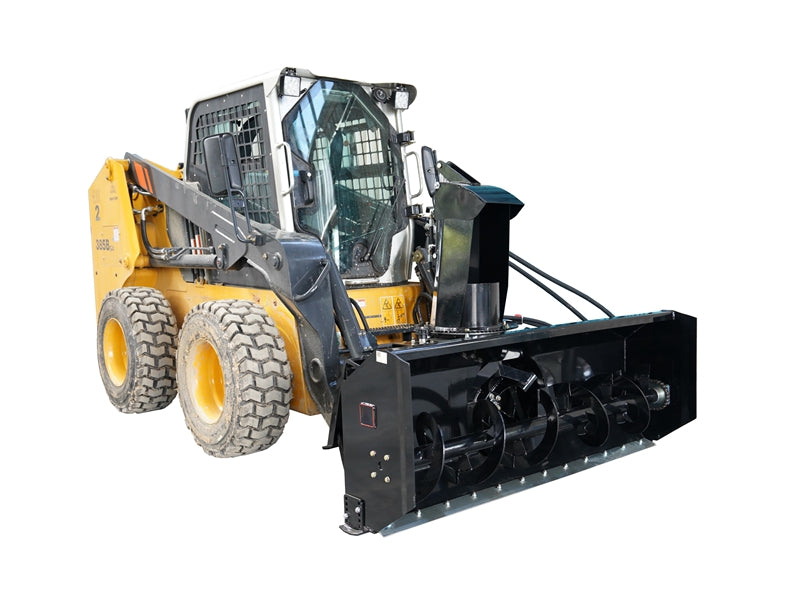

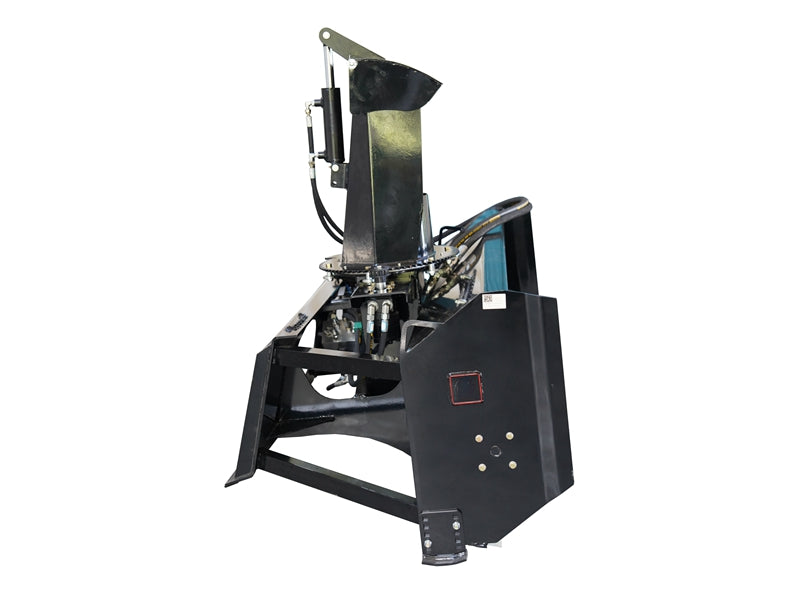

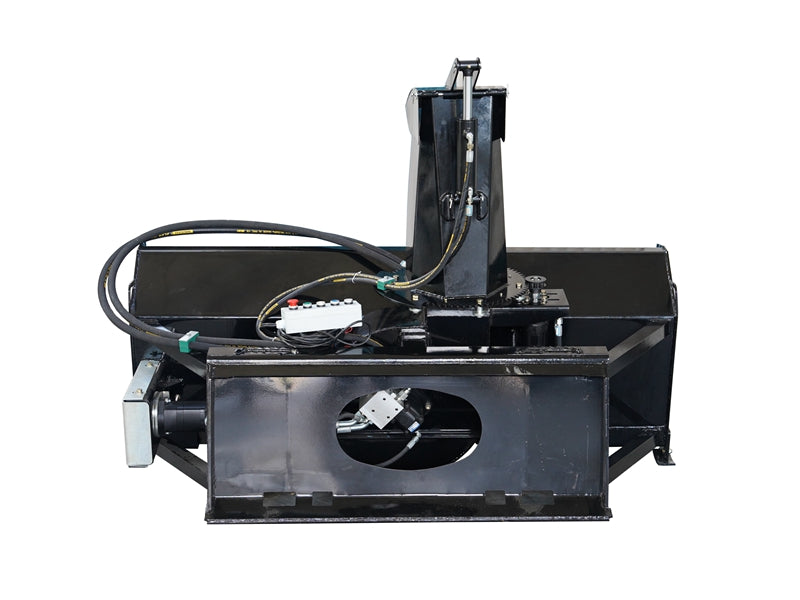

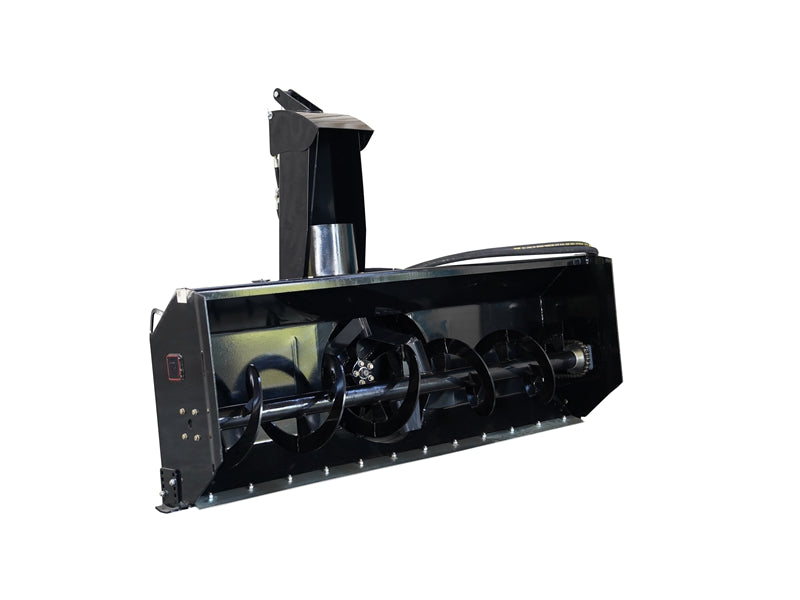

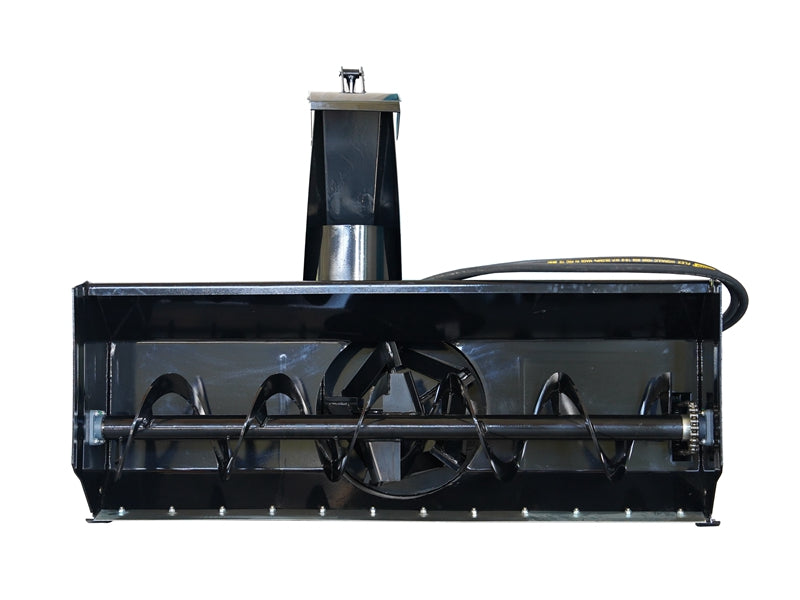

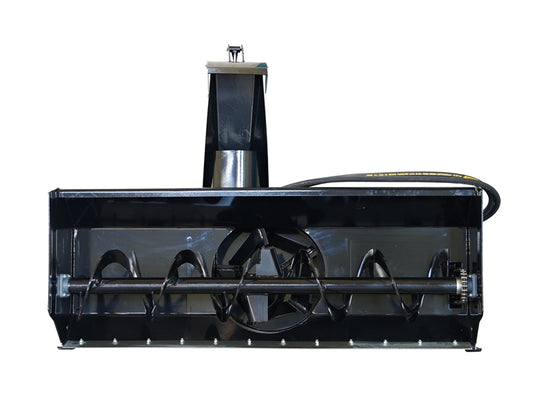

Skid Steer Hydraulic Snow Blower Attachment 72 Inch No Shear Pin 40ft Throw

Product Overview

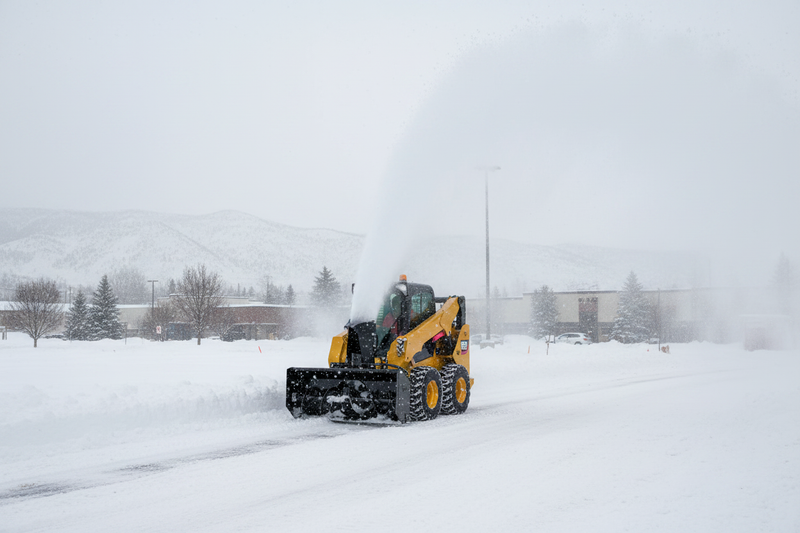

This skid steer hydraulic snow blower attachment is engineered for commercial, municipal, and industrial snow removal operations that demand high-volume clearing performance in the harshest winter conditions. Spanning 72 inches (1,830 mm) wide with a direct-drive hydraulic auger and a 508 mm impeller fan, the attachment moves large quantities of snow rapidly and throws it up to 40 feet — making it equally effective on mountain access roads, municipal streets, commercial parking lots, and industrial facility driveways where conventional snow plows leave packed snow behind.

The most significant operational advantage of this hydraulic snow blower skid steer attachment is the complete elimination of shear pins. A hydraulic control valve with electric solenoid manages all chute functions and incorporates a built-in pressure relief system that automatically protects the drivetrain when the auger contacts ice, frozen debris, or hidden obstacles — no stopping, no pin replacement, no downtime. This no shear pin design is a critical advantage for commercial operators running continuous shifts, where a single shear pin failure on a traditional machine can halt an entire snow removal operation at the worst possible moment.

The replaceable bolt-on high-carbon steel cutting edge maintains aggressive ground contact and clean snow pickup throughout the season, and can be swapped out without specialized tools when worn — keeping operating costs low over the long term. Easily adjustable depth skid shoes allow the operator to set the precise cutting height for different surface types, from asphalt to gravel. Available in both high-flow and standard-flow hydraulic configurations to match a wide range of skid steer machines, the S-HSB1830(72IN)-MP1140 operates at 16 MPa with a 60 LPM hydraulic flow requirement and mounts via a universal quick-attach plate for fast, tool-free installation.

Details

Features:

·Hydraulic Snow Blower

·Direct-drive hydraulic auger

·Replaceable bolt-on high-carbon steel cutting edge

·Hydraulic relief - no shear pins

·Hydraulic control valve with electric solenoid controls all chute functions with built-in pressure relief system eliminating the need for shear pins.

·Easily adjustable depth skid shoes

·Throws snow up to 40'

Specifications:

Technical Drawing:

Scene graph:
