Product Overview

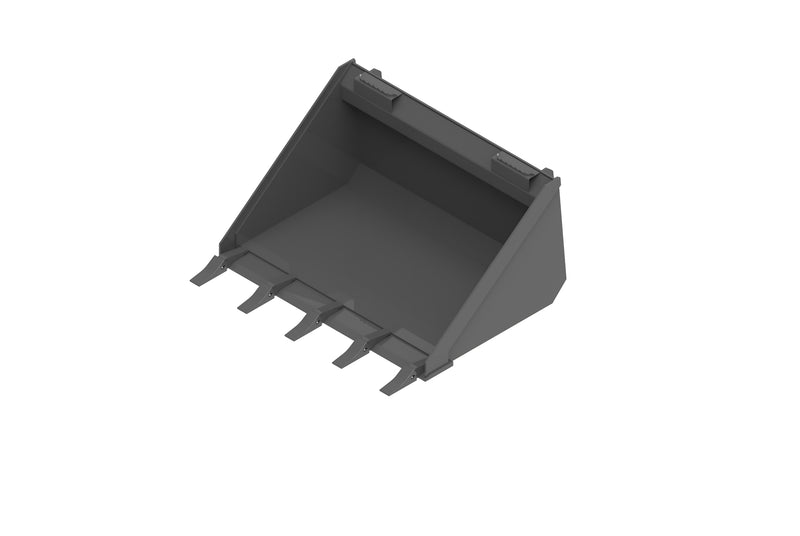

The Skid Steer Heavy Duty Low Profile Tooth Bucket is a high-capacity digging and dirt-moving attachment engineered for operators who demand maximum visibility, superior durability, and efficient performance on demanding excavation and site preparation job sites. Designed for compact skid steer loaders and compatible with most machines via a universal quick-attach system, including Bobcat, Caterpillar, Gehl, and Mustang, this tooth bucket delivers reliable digging performance across a wide range of construction, landscaping, and land clearing applications.
The low profile design is one of the standout features of this bucket, giving operators a clear, unobstructed view of the cutting edge and the work area directly in front of the machine. This improved visibility allows for more precise digging, accurate bucket placement, and safer operation in tight or confined spaces where operator awareness is critical. Whether you are digging footings, trenching, or moving material in a crowded job site, the low profile design keeps you in full control of every pass.
Built from high-strength reinforced steel with an 8mm main plate, this bucket is constructed to withstand the repeated impact and abrasion of heavy-duty digging in rocky, compacted, and abrasive ground conditions. Five integrated wear bars across the base of the bucket provide additional protection against premature wear, extending the service life of the attachment and reducing long-term maintenance costs even under continuous heavy-duty use.
The replaceable tooth system is a key advantage for operators who want to minimize downtime and maintenance costs in the field. Each tooth is mounted on a reinforced weld-on shank, allowing worn or damaged teeth to be replaced quickly without the need for specialized tools or workshop facilities. This means you can keep the bucket performing at its best throughout its entire service life, simply by swapping out individual teeth as needed rather than replacing the entire cutting edge.
With a generous capacity of 0.53 cubic meters and a working width of 44 inches (1830mm), this tooth bucket moves large volumes of material in every pass, reducing cycle times and improving overall job site productivity. It is ideally suited for a wide range of applications including general excavation and digging, dirt and soil moving, demolition site cleanup, land clearing and stump removal, trench digging and backfilling, and heavy material handling. If you need a skid steer tooth bucket that combines low profile visibility, replaceable teeth, and heavy-duty reinforced construction, this attachment is built to deliver professional-grade performance on every job.
Details
Features:
·Heavy Duty Tooth Bucket
·Easily Visible Low profile design capable of seeing your work area
·REPLACEABLE teeth with reinforced weld on shank
Specifications:
|
Type |
Dimension(WDH)/mm |
Main Plate Thickness/mm |
Volume/m³ |
Weight/kg |
|
CS-TB1120(44IN)-MP910 |
1830×995×580 |
8 |
0.53 |
188 |
Technical Drawing:
