Product Overview

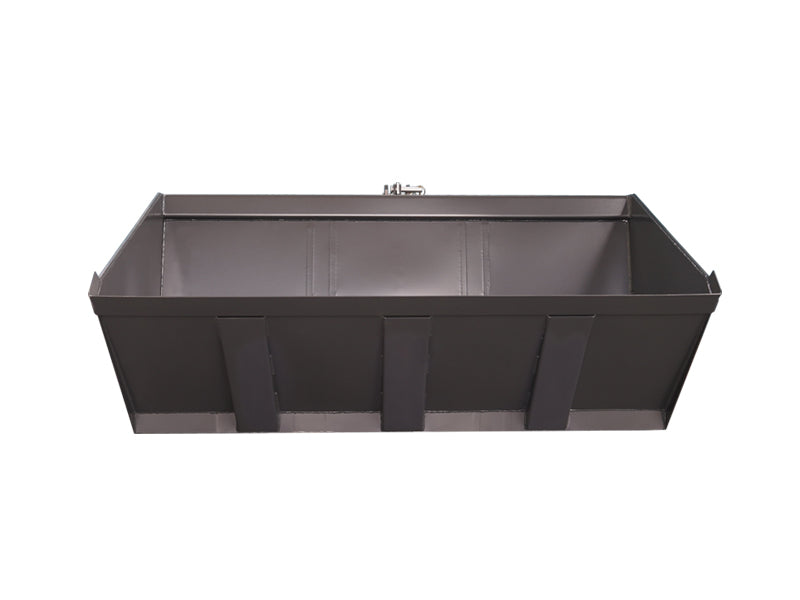

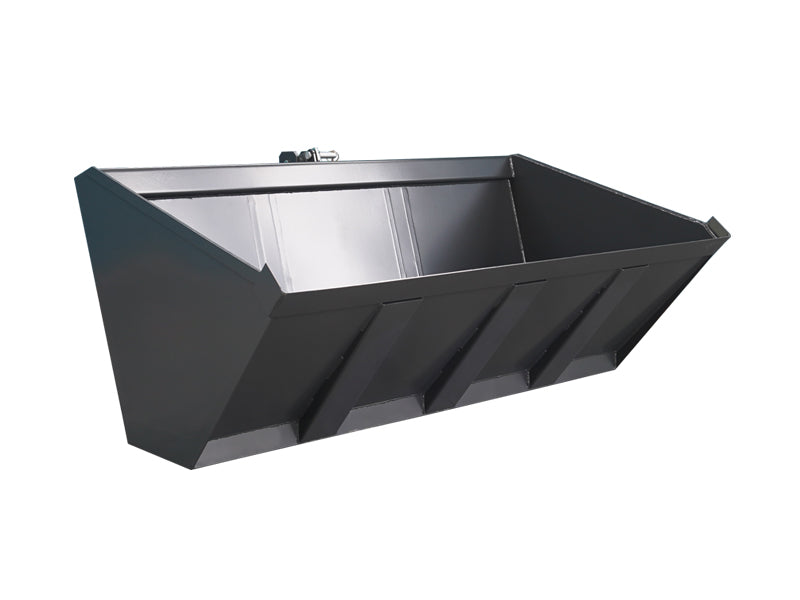

The EALITA Hydraulic Tipping Bucket is a heavy-duty 3 point hitch tractor attachment engineered for efficient loading, transport, and unloading of bulk materials across agricultural and construction sites. Designed for intensive daily use, this bucket handles soil, gravel, sand, manure, silage, and loose materials with ease — making it an essential tool for professional operators.

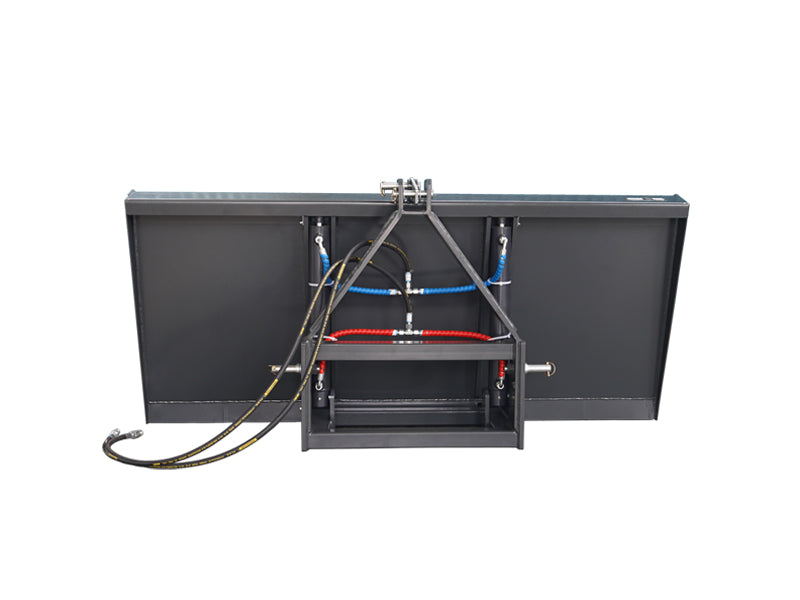

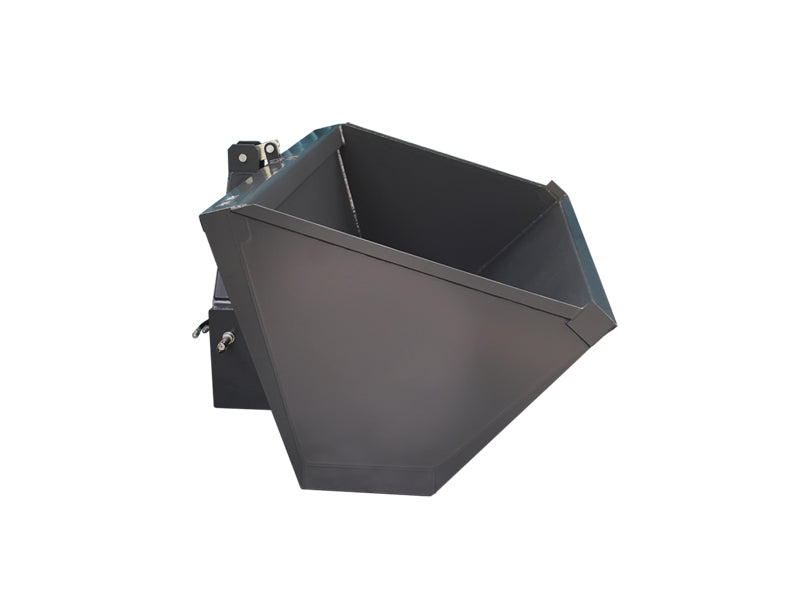

Powered by dual hydraulic cylinders, the bucket delivers a powerful and controlled 93° tipping angle, allowing complete material discharge without manual effort. The large 1.16m³ (1160L) capacity maximizes productivity per cycle, reducing the number of trips needed across the worksite.
Built for Cat 2 three-point hitch systems, this hydraulic tipping bucket fits a wide range of standard tractors with no additional adapters required. The robust steel frame is engineered to withstand the stresses of heavy-load operation, with full-penetration welds and reinforced pivot points ensuring long-term structural integrity.
Operating at 16 MPa / 60 LPM, the bucket integrates seamlessly with most tractor hydraulic systems, delivering smooth, responsive tipping action on every cycle. Whether you're clearing a construction site, managing farm waste, or moving bulk materials, the EALITA Hydraulic Tipping Bucket gives you the capacity, control, and durability to get the job done.
Details
Features:
·Hydraulic Tipping Bucket
·It is tipped by 2 cylinders and is suitable for type 2 three-point hooks
Specifications:
|
Type |
Volume/m³ |
Dimension(WDH)/mm |
Tipping Angle (TA) /° |
Operating Pressure/MPa |
Hydraulic Flow/LPM |
Bracket Type |
Weight/kg |
|
T-GH20-3Point |
1.16 |
2029x1383x938 |
93 |
16 |
60 |
Cat 2 |
430 |
Technical Drawing:
