Product Overview

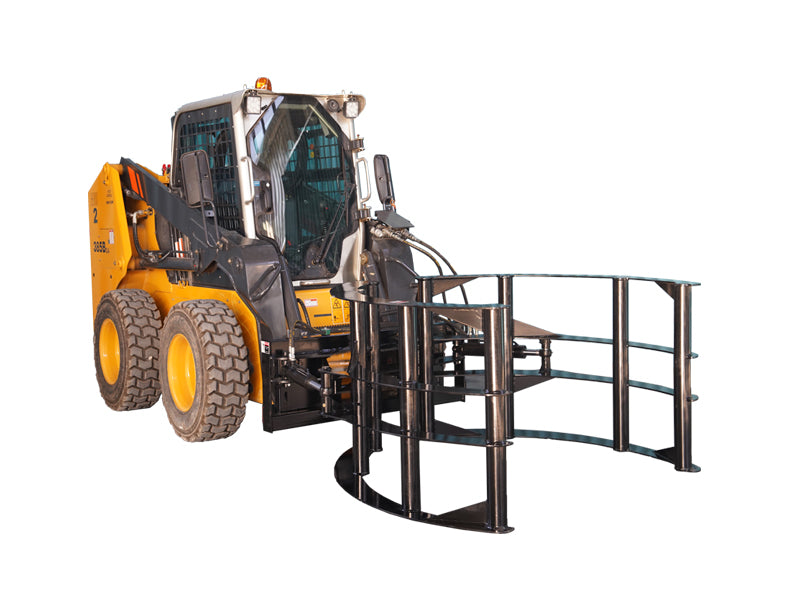

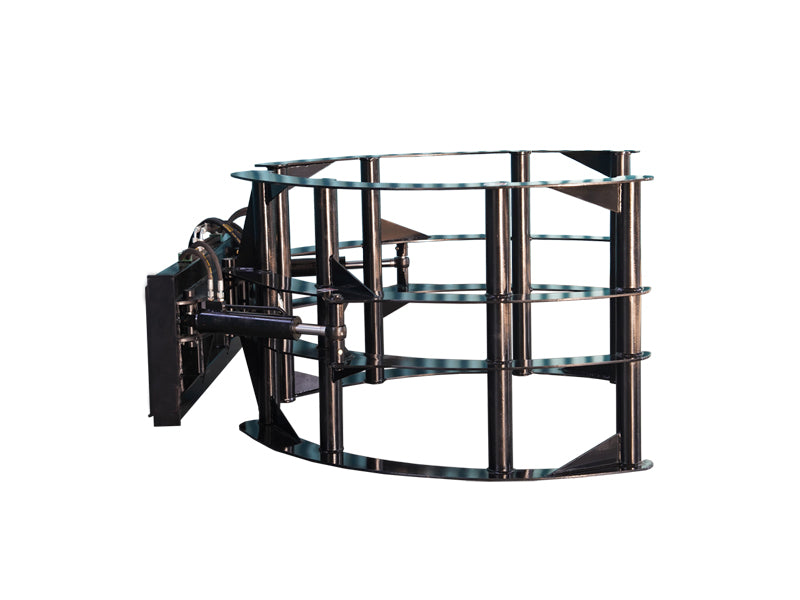

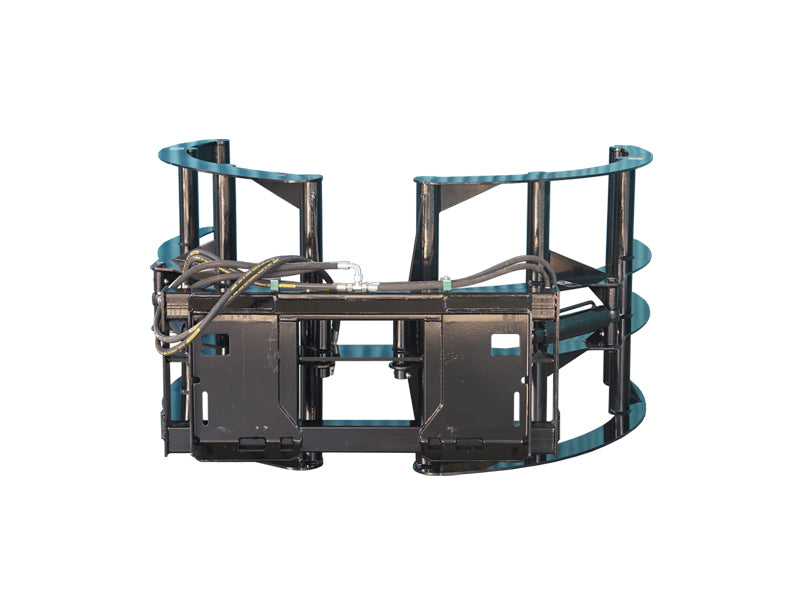

The S-HBG Skid Steer Hydraulic Round Hay Bale Grab is a heavy-duty quick attach grapple attachment designed for fast, efficient movement and stacking of round hay bales on farms, ranches, and large-scale hay contracting operations. Rated to a 1300kg safe working load and compatible with round bales from 1220mm to 1830mm in diameter, this hydraulic bale grab handles the full range of standard 4-foot to 6-foot round bales without any adjustment or reconfiguration between jobs.

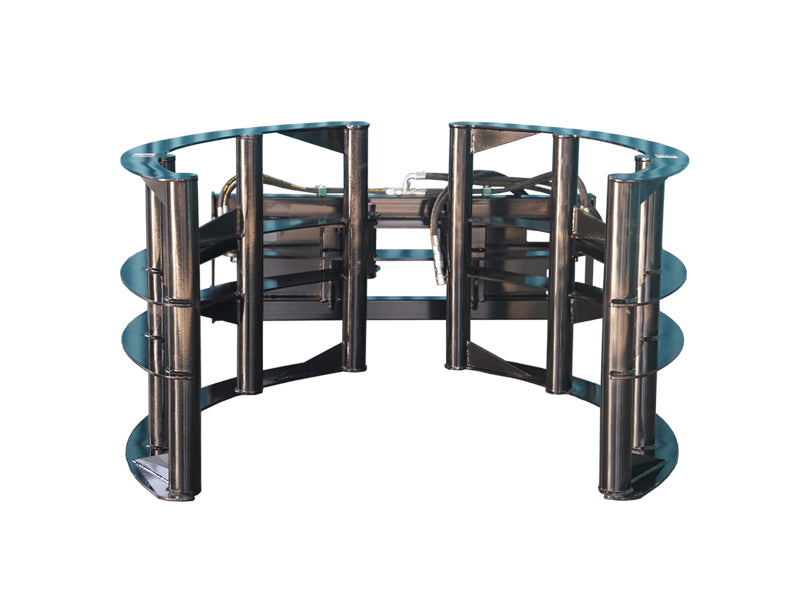

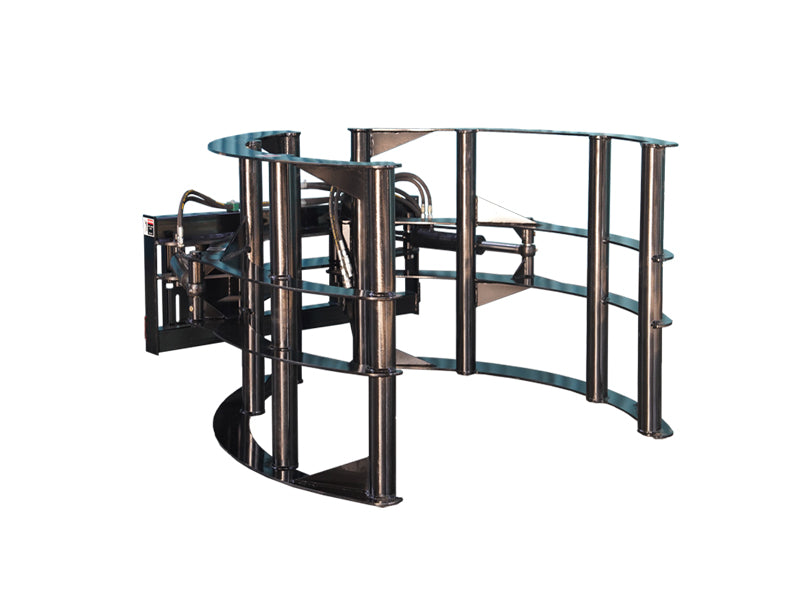

The hydraulic arms open from 950mm to a maximum of 2200mm, giving you the reach to wrap around even the largest round bales with a secure, full-contact grip that keeps the bale stable throughout every lift, carry, and stack cycle. Unlike bale spears that penetrate the bale and risk wrap damage, the grab design cradles the bale from the outside, making it the preferred choice for handling wrapped silage bales where preserving the wrap integrity is critical to preventing feed spoilage. The system operates at 16 MPa with a hydraulic flow requirement of 60 LPM, delivering smooth and responsive arm movement even under maximum load.
One of the standout productivity features of the S-HBG is its dual-bale stacking capability, allowing you to pick up and move two round bales simultaneously in a single pass. For high-volume hay operations, large livestock farms, or hay contractors moving hundreds of bales per day, the ability to handle two bales at once cuts your total handling time and machine hours in half — directly reducing fuel costs and operator fatigue over the course of a season.
Measuring 1440mm wide, 2037mm tall, and 900mm deep, with a working weight of 359kg, the S-HBG is engineered for the structural demands of daily commercial bale handling. If you're looking for a skid steer quick attach hydraulic bale grab that handles 4-to-6-foot round bales, protects silage wrap, and moves two bales at a time, the S-HBG is the high-capacity, heavy-duty solution built for serious hay and livestock operations.
Details
Features:
·Bale Grab
·Dual-bale stacking, compatible with 4'-6' round bales
Specifications:
|
Type |
SWL/kg |
Dimension (WDH)/mm |
Opening Range(OR)/mm |
Operating Pressure/MPa |
Hydraulic Flow/LPM |
Weight/kg |
|
S-HBG(300-3300)-MP1140 |
1300 |
1440×2037×900 |
950-2200 |
16 |
60 |
359 |
Technical Drawing:
Scene graph:
