Product Overview

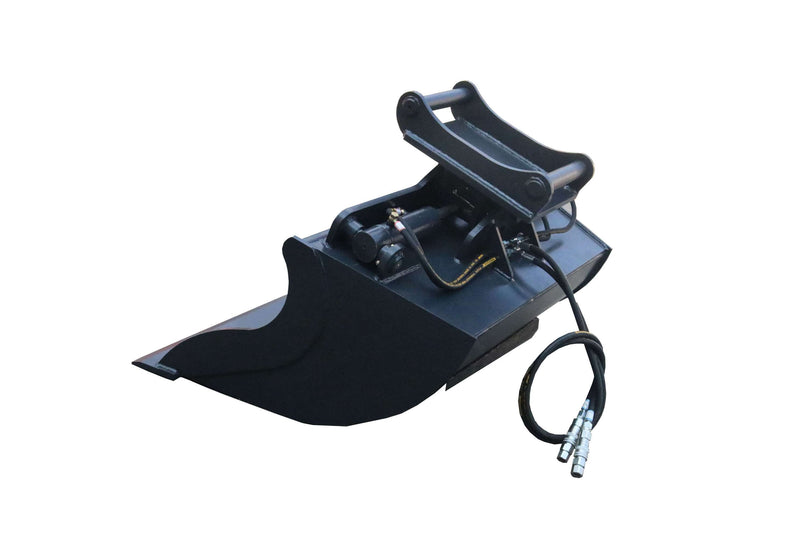

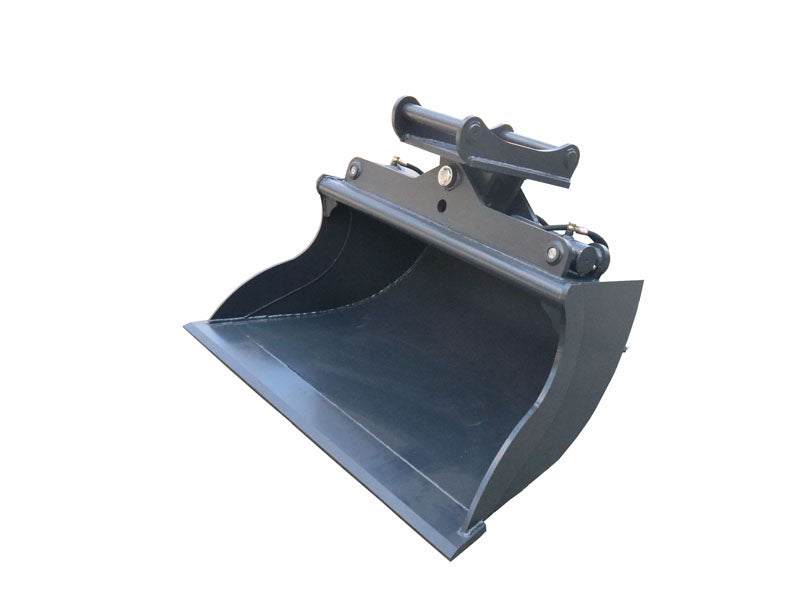

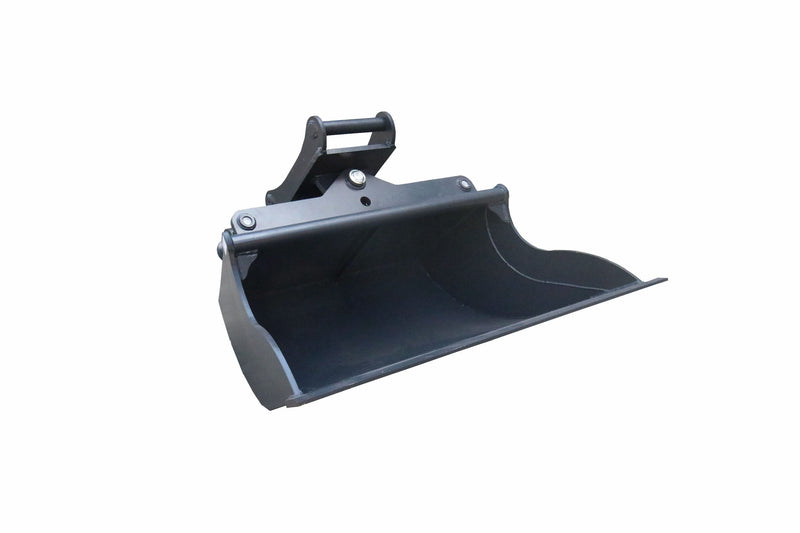

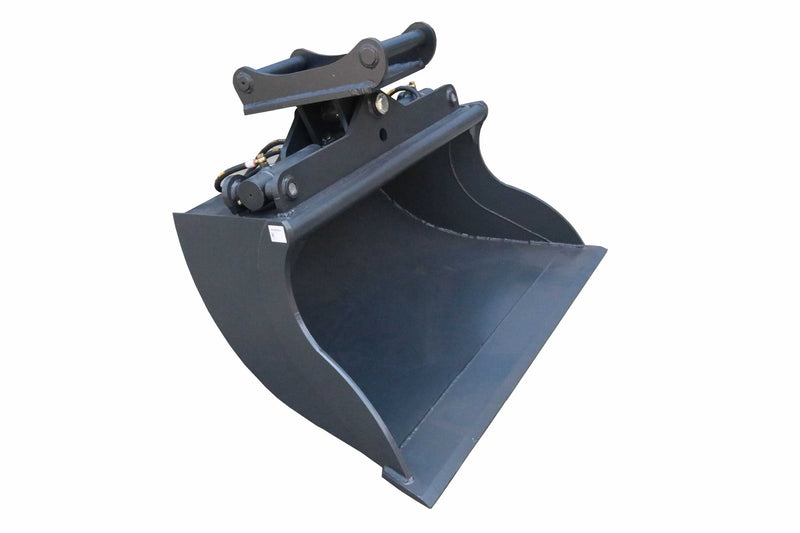

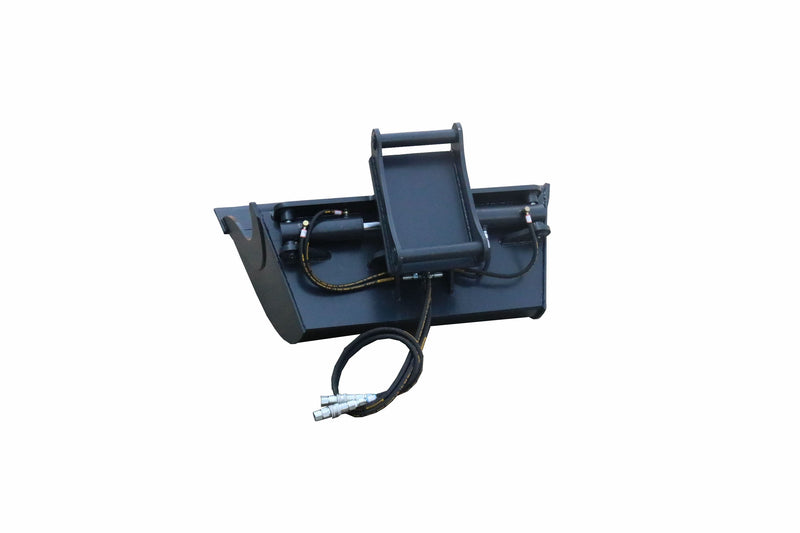

The Grading bucket is generally used in clean up, ditching or grading applications. Tilting range of 2×45°.
Sturdy and wear-resistant: Lehborit 5000 (500HB) cutting edge and side cutting edge, Including Hydraulic cylinder, pressurizing valve and hoses up to the tilting head.
Details
Features:
·Tilt Grading Bucket
·With Lehmatic adapter, Symlock adapter or direct suspension
·Wear-resistant cutting edge,Including Hydraulic cylinder and hoses up to the tilting head
Specifications:
|
Type |
Cylinder Qty. |
Dimension(WDH)/mm |
Main Plate Thickness/mm |
Rotation Angle(SA)/° |
Operating Pressure/MPa |
Hydraulic Flow/LPM |
Bracket Type |
Weight/kg |
Suit Excavator/T |
|
ME-GB1000-1HY-S30 |
1 |
1000×563×626 |
6 |
45 |
16 |
60 |
S30 |
103 |
1-2 |
|
ME-GB1320-1HY-S40 |
1 |
1320×751×792 |
8 |
45 |
16 |
60 |
S40 |
210 |
2-3.5 |
|
E-GB1470-2HY-S50 |
2 |
1470×957×895 |
10 |
45 |
16 |
60 |
S50 |
317 |
6-8 |
Technical Drawing:
