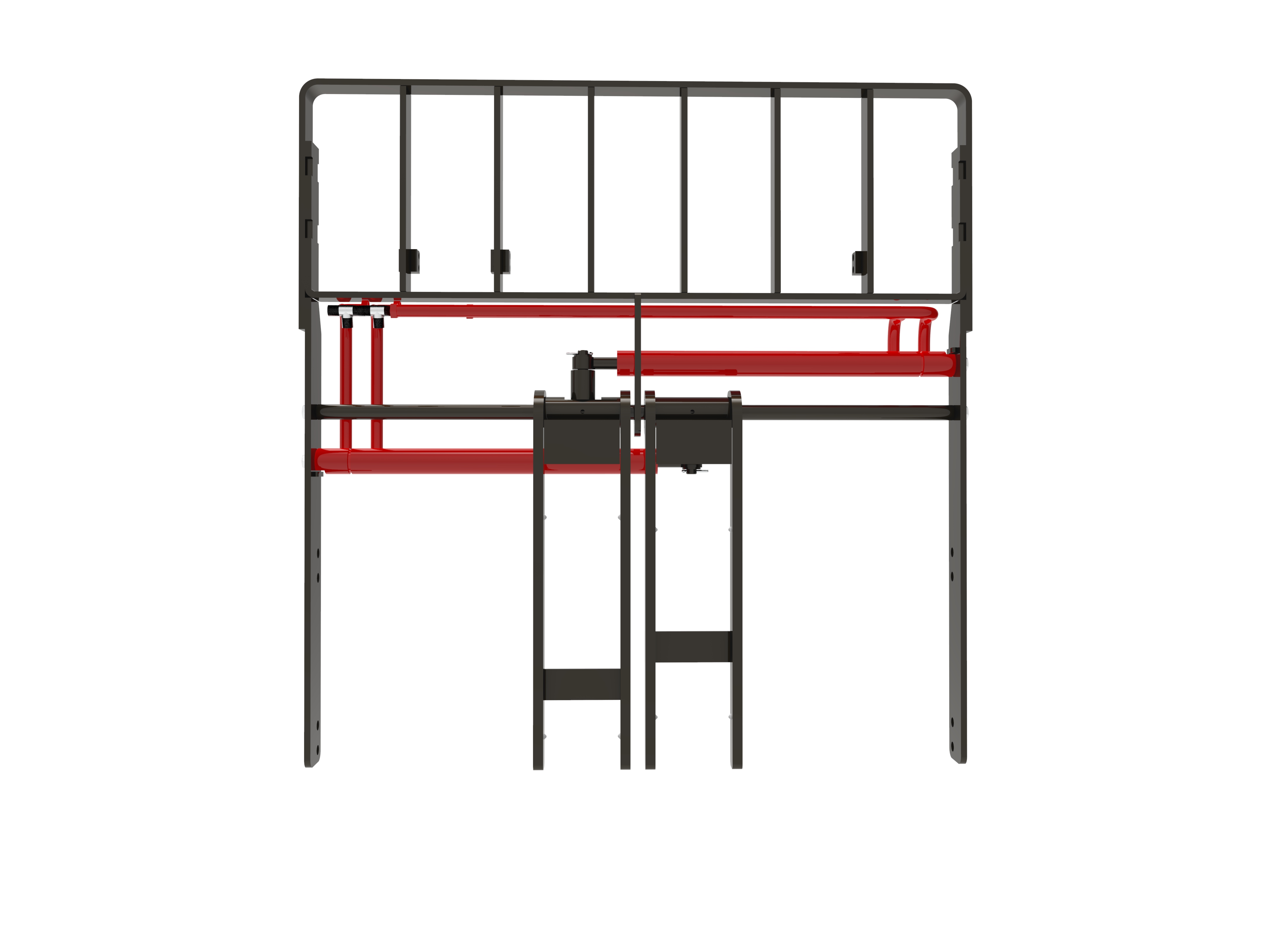

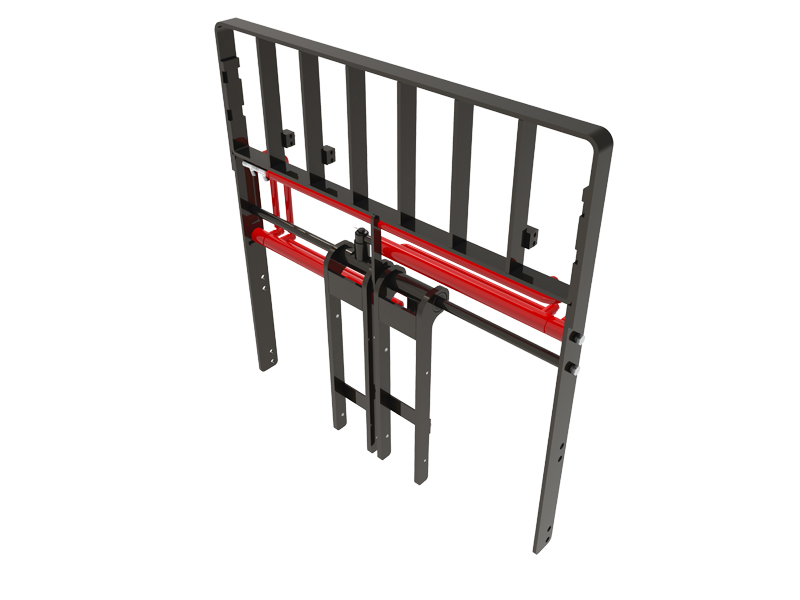

Forklift Attachment Fork Positioners F-TJQ

External hanging design, can be directly used standard fork installation, no need for welding and other additional modiication, wide version and with a solid shelf.

Type:
F-TJQ
Surface Treatment:
Black Painting or As Request

Product Details

External hanging design, can be directly used standard fork installation, no need for welding and other additional modiication, wide version and with a solid shelf.

- When using a forklift truck, it can adjust the fork spacing quickly and accurately without leaving the driving position, so as to facilitate the adjustment of pallets of different sizes, thus improving the operation efficiency.

- Please obtain the actual load capacity of the forklift / attachment from the forklift manufacturer.

- Requires an additional oil circuit for the forklift.

- Other sizes available on request.

Specification

Load Centre: 500mm

Type	Class	Carriage Width(Wc)/mm	Distance Range(DR)/mm	Pocket Width/mm	Dimension(LWH)/mm	Weight/kg	Suit Forklift/T
F-TJQ2A15-970	2A	970	45-810	100	1010×140×1100	65	1-1.5
F-TJQ2A20-1040	2A	1040	45-880	100	1080×140×1100	67	1.5-2.5
F-TJQ2A20-1200	2A	1200	45-1045	100	1240×130×1100	72	1.5-2.5
F-TJQ3A30-1100	3A	1100	45-940	120	1212×102×1200	74	3-3.5
F-TJQ3A38-1200	3A	1200	45-1015	150	1312×102×1200	78	3-3.8
F-TJQ3A40-1300	3A	1300	45-1115	150	1412×102×1200	80	3.5-4
F-TJQ3A40-1350	3A	1350	45-1165	150	1462×102×1200	81	3.5-4
F-TJQ3A40-1380	3A	1380	45-1195	150	1492×102×1200	82	3.5-4
