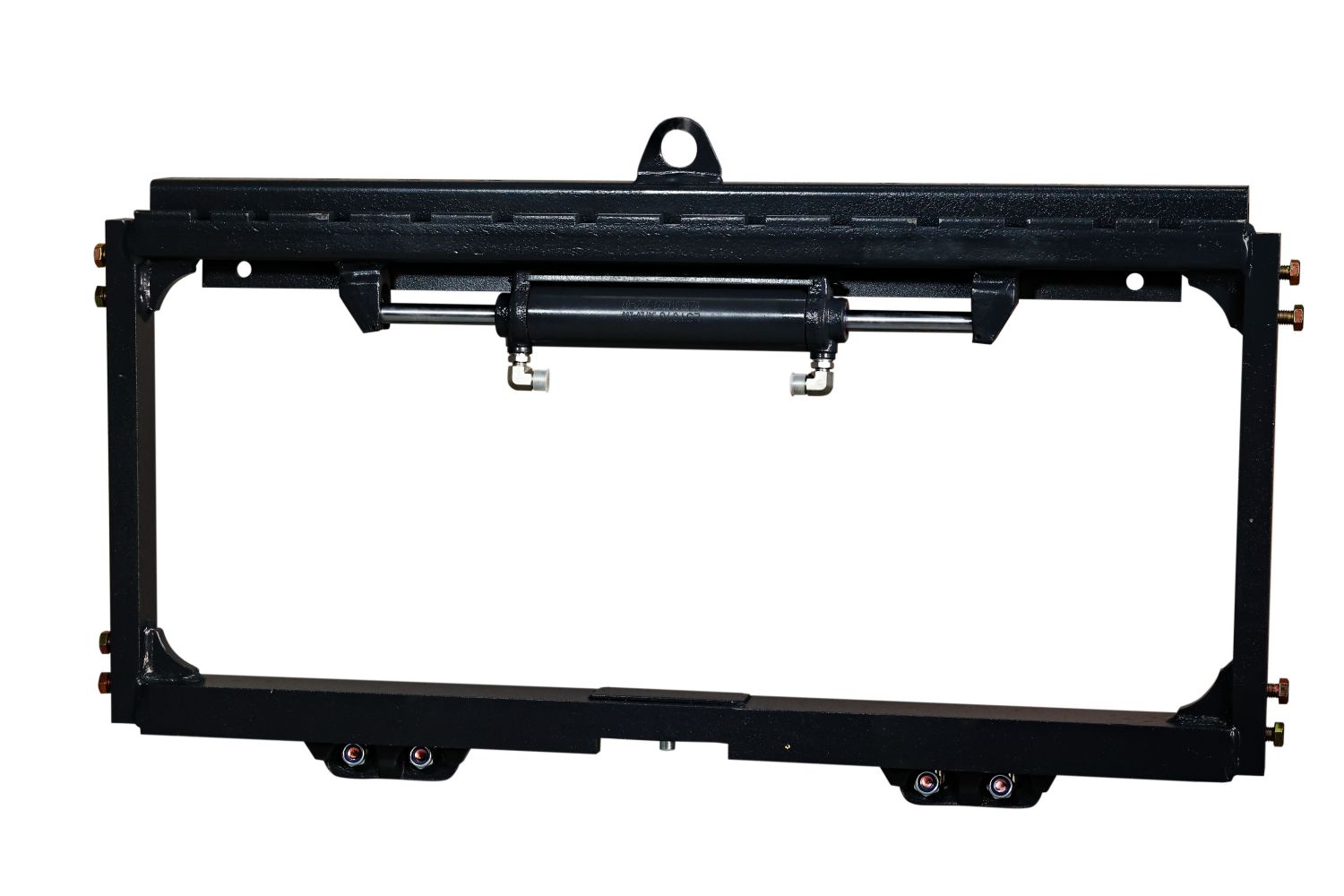

Integrate cylinder and sideshifter frame into a component, saving room and widening the view.
Type:
F-CYQ-ASurface Treatment:
Black Painting or As RequestIntegrate cylinder and sideshifter frame into a component, saving room and widening the view.

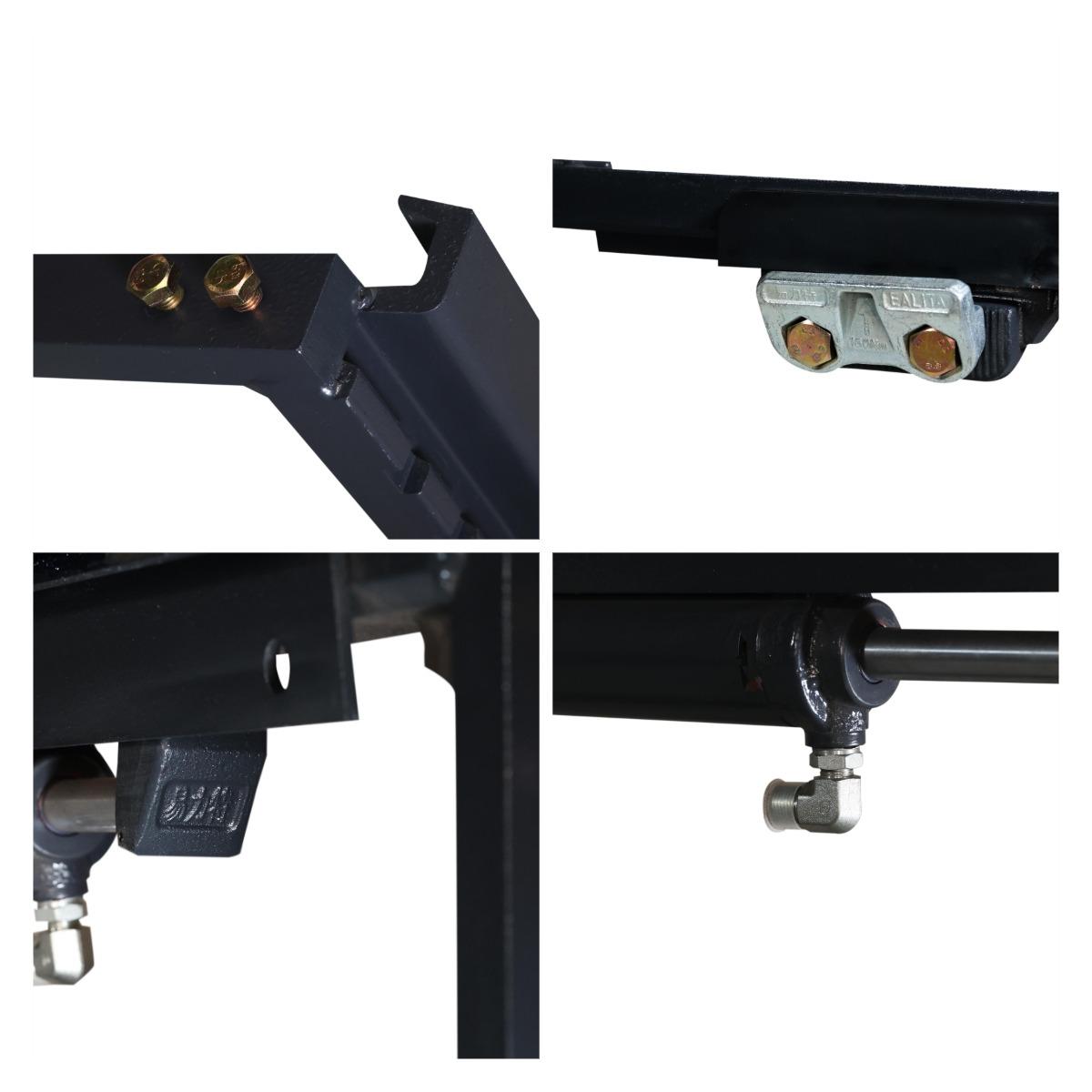

- Easy installed, directly connected to fork carriage.
- Double-headed rod cylinder, keep the same thrust force and speed on both sides of cylinder.
- The lower bearings used wear-resistant nylon-material to ensure smoothly move.
- Highly efficiency, easy maintenance and operation.
|
Type
|
Class
|

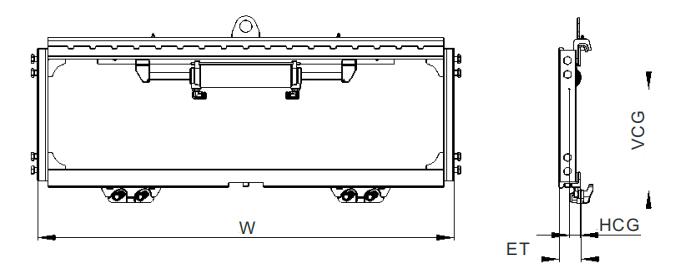

Carriage Width(W)/mm
|
Amount of Side Shifter/mm
|
VCG/mm
|
HCG/mm
|
Lost Load (ET)/mm
|
Weight/kg
|
Suit Forklift/T
|
|
F-CYQ2A20-1040
|
2A
|
1040
|
±100
|
295 | 32 | 64 | 58 | 2-2.5 |
| F-CYQ3A30-1100 |
3A
|
1100 |
±100 |
295 |
32 |
64 |
73 | 3-3.5 |
|
F-CYQ3A30-1500
|
3A |
1500 |
±100 |
295 |
32 |
64 | 91 |
3-3.5 |
|
F-CYQ3A30-1600
|
3A |
1600 |
±100 |
295 |
32 |
64 |
97 |
3-3.5 |
|
F-CYQ3A40-1350
|
3A |
1350 |
±150 |
295 |
32 |
64 |
176 | 4-4.5 |
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
