The Skid Steer to PTO Adapter is designed to allow you to run your 3 Point agricultural attachments with your Skid Steer.
Goods_stock:
10Min order:
5Product weight:
158kgType:
S-PTOMPHDv2Surface Treatment:
Black Painting or As Request
The Skid Steer to PTO Adapter is designed to allow you to run your 3 Point agricultural attachments with your Skid Steer. Simply attach this unit to your Skid Steer, connect your hydraulic hoses, hook-up your Category 1, 3 Point Attachment to the unit, and away you go. The adjustable top link bar and quick attach lower link allows you to hook-up and detach in a flash, saving you to time on switching attachments.
Details
- Fits Cat 1 and Cat 2 pins
- Now you can run agricultural attachments without having to own or rent a tractor
- Designed to give your skid steer the ability to run 3 Point agricultural attachments
- Adjustable top link bar and quick attach lower links for easily switching attachments
- Enhanced Lower pin hook assembly
- Heavy-duty steel construction with a static load capacity of 2,460-pounds
- Features a Relief Valve to protect the motor
- Hoses and flat-faced couplers included

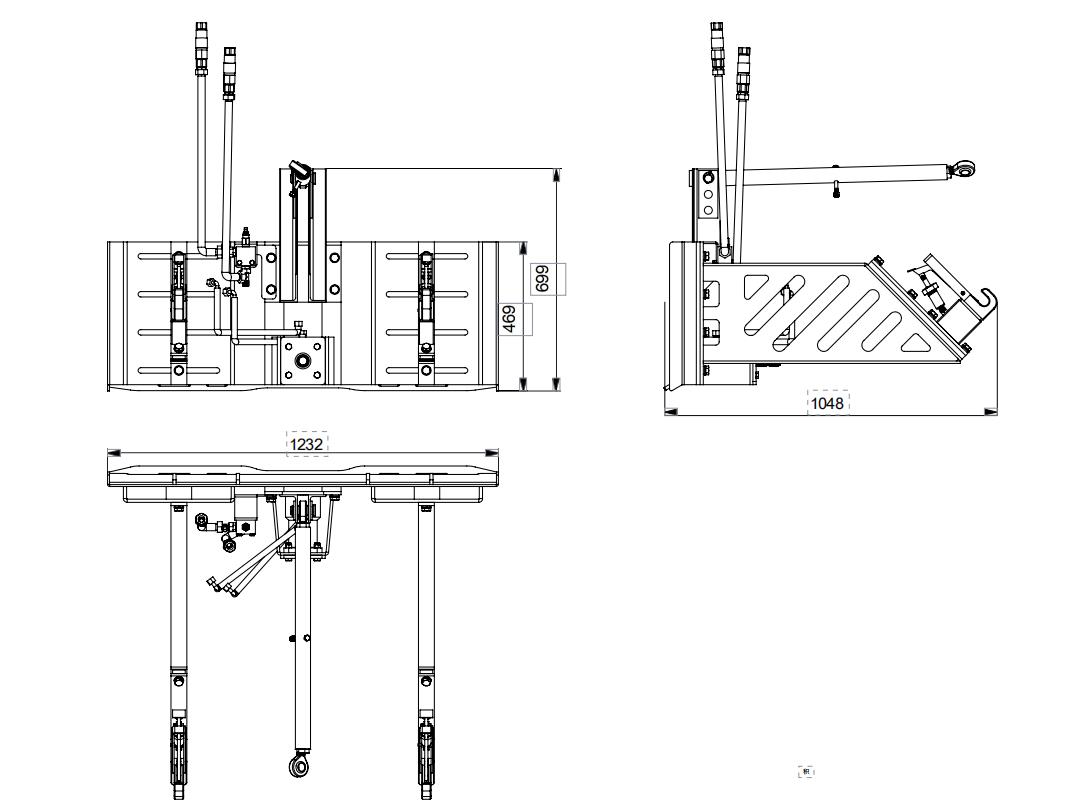

Essential Details:
Overall Width:46inch
Overall Height:27inch
Overall Depth:36inch
Lower Link Inner Dimension:28inch
Weight: 150kgs
Power Output:30-75HP
Flow Rate:15.8-19.8GPM
Pressure Rate: 2500-2900PSI
Shaft Speed:520-750RPM
Static Load Capacity:1150kg
