Product Overview

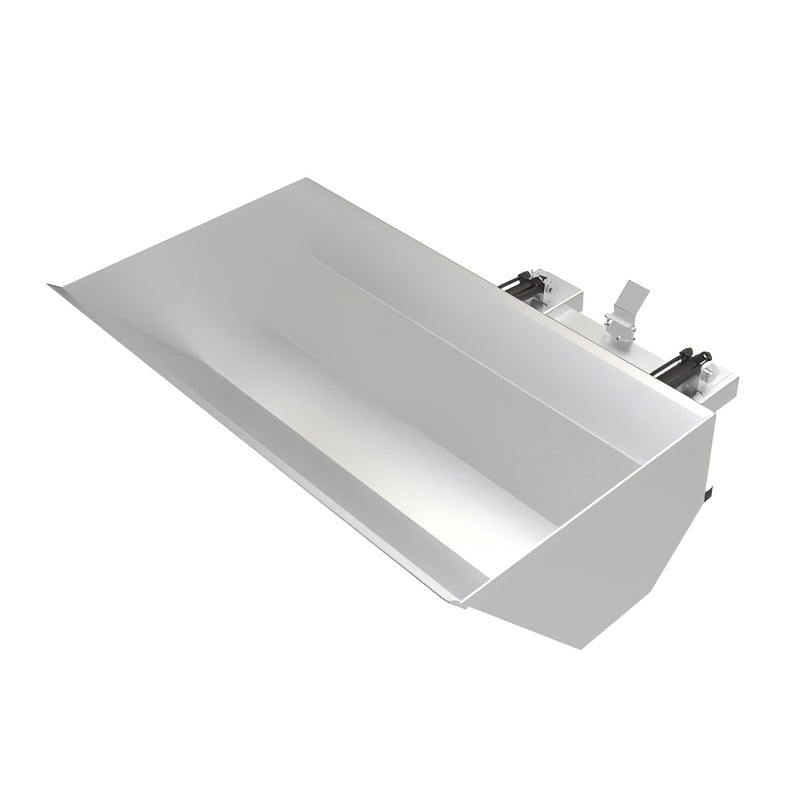

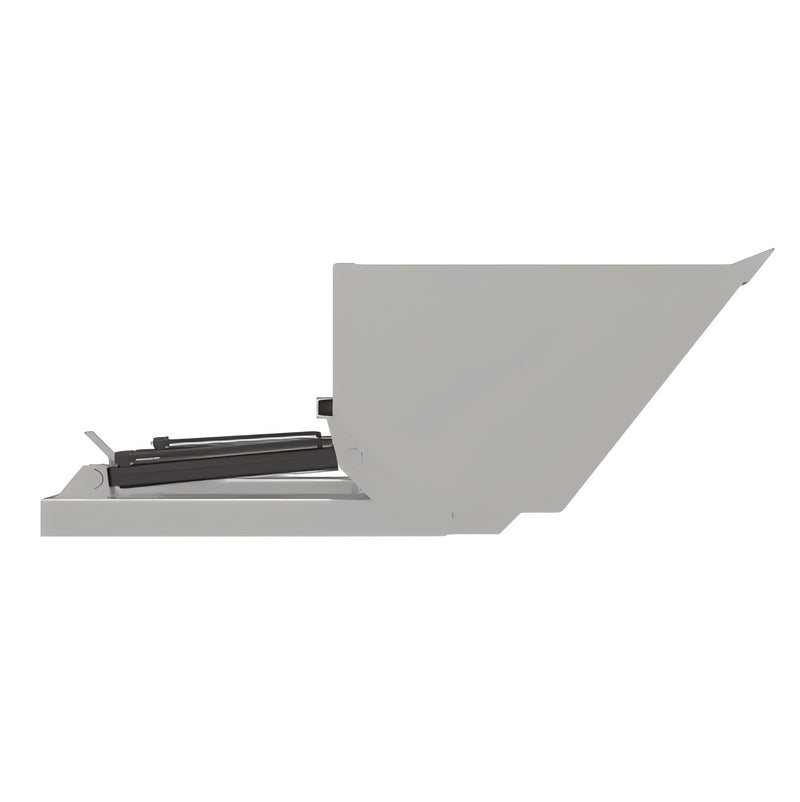

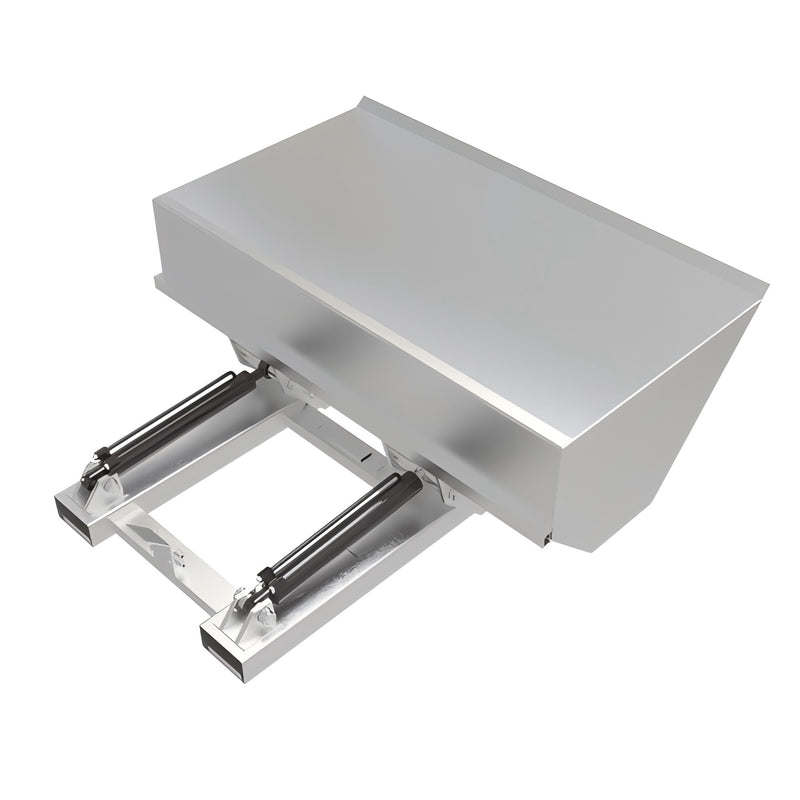

A slip on hydraulically operated bucket which quickly connects to the forklift. The hydraulic operation allows for full backwards tilt making the bucket suitable for liquid products.
Details
Features:
·Hydraulic Bucket
·Bucket is fitted with a hardened steel wear edge
Specifications:
|
Type |
SWL/kg |
Cylinder Qty. |
Dimension(WDH)/mm |
Main Plate Thickness/mm |
Pocket Size(ab)/mm |
Pocket Centres/mm |
Operating Pressure/MPa |
Hydraulic Flow/LPM |
Volume/m³ |
Weight/kg |
|
F-DB-H-12 |
500 |
1 |
1200×670×596 |
5 |
165×65 |
635 |
16 |
60 |
0.22 |
195 |
|
F-DBHS2-12 |
1000 |
2 |
1200×670×596 |
6 |
185×65 |
750 |
16 |
60 |
0.50 |
308 |
|
F-DBHS2-18 |
1000 |
2 |
1800×670×596 |
6 |
185×65 |
750 |
16 |
60 |
0.90 |
364 |
Technical Drawing:
