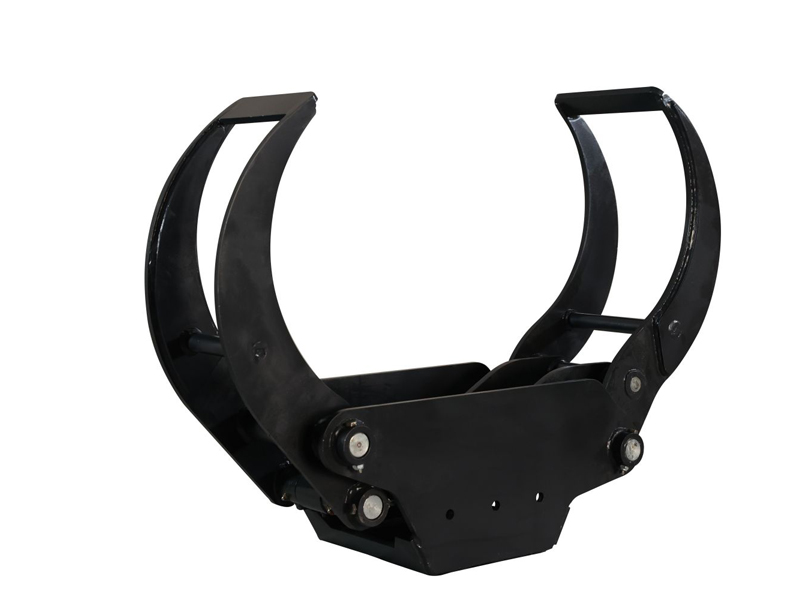

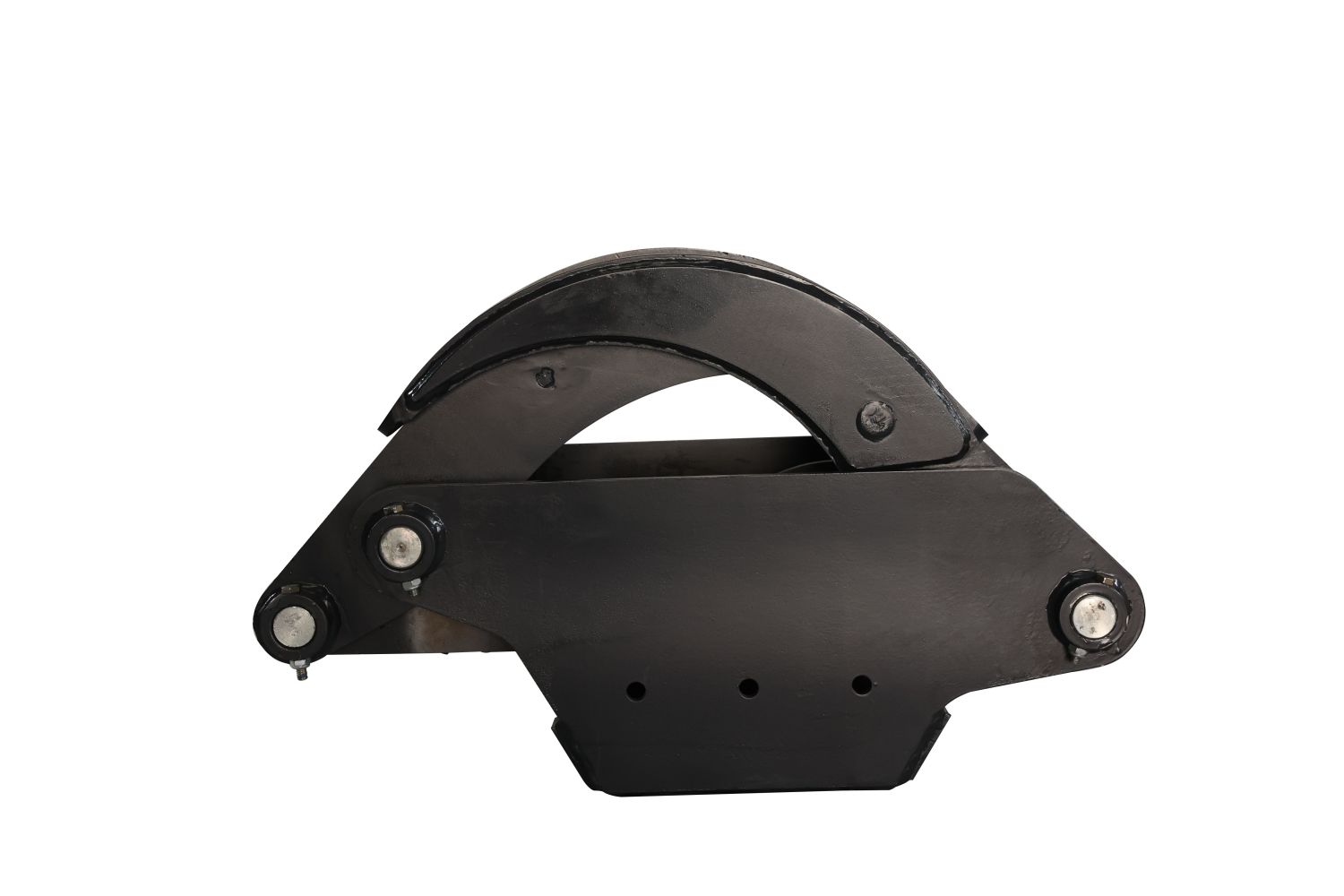

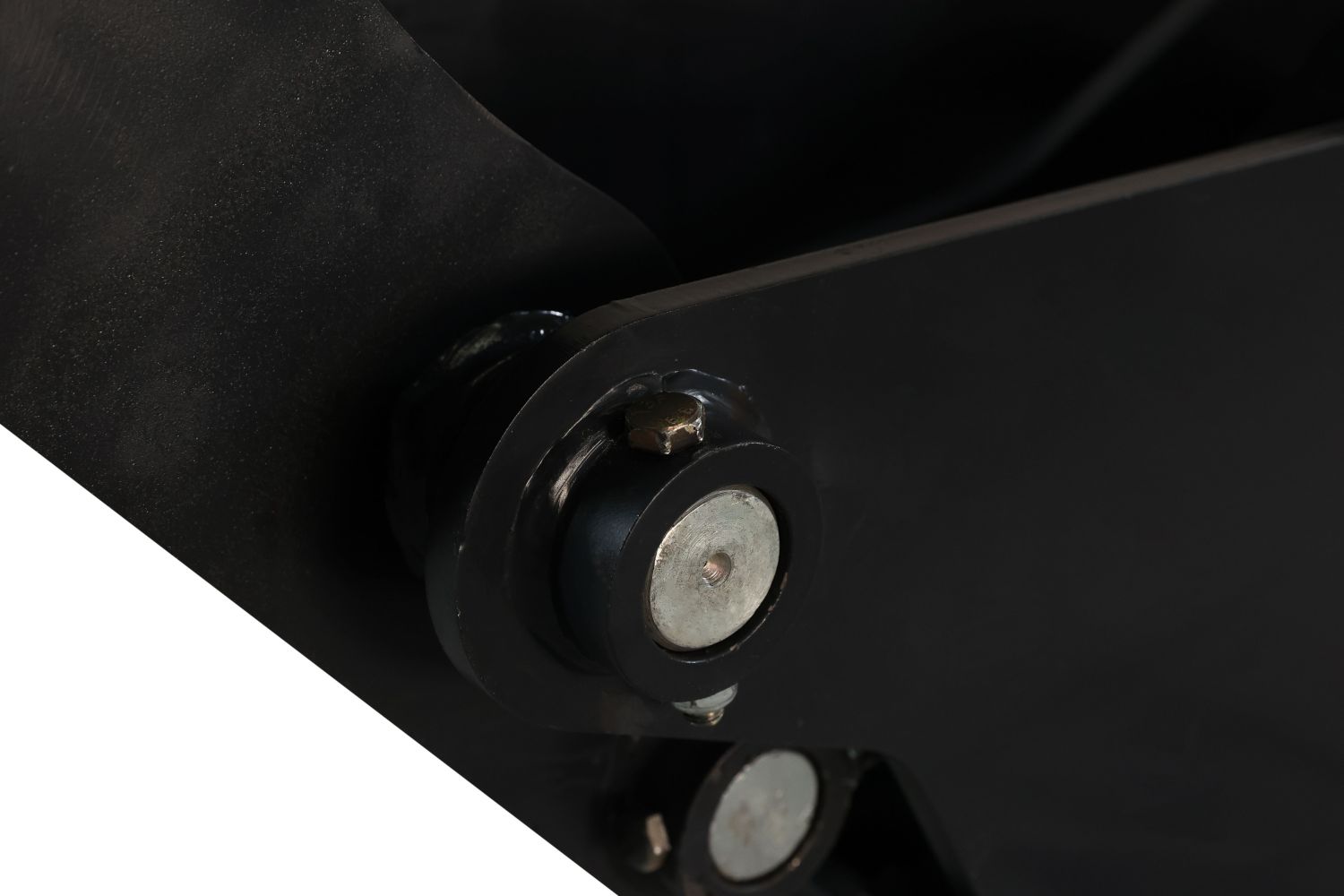

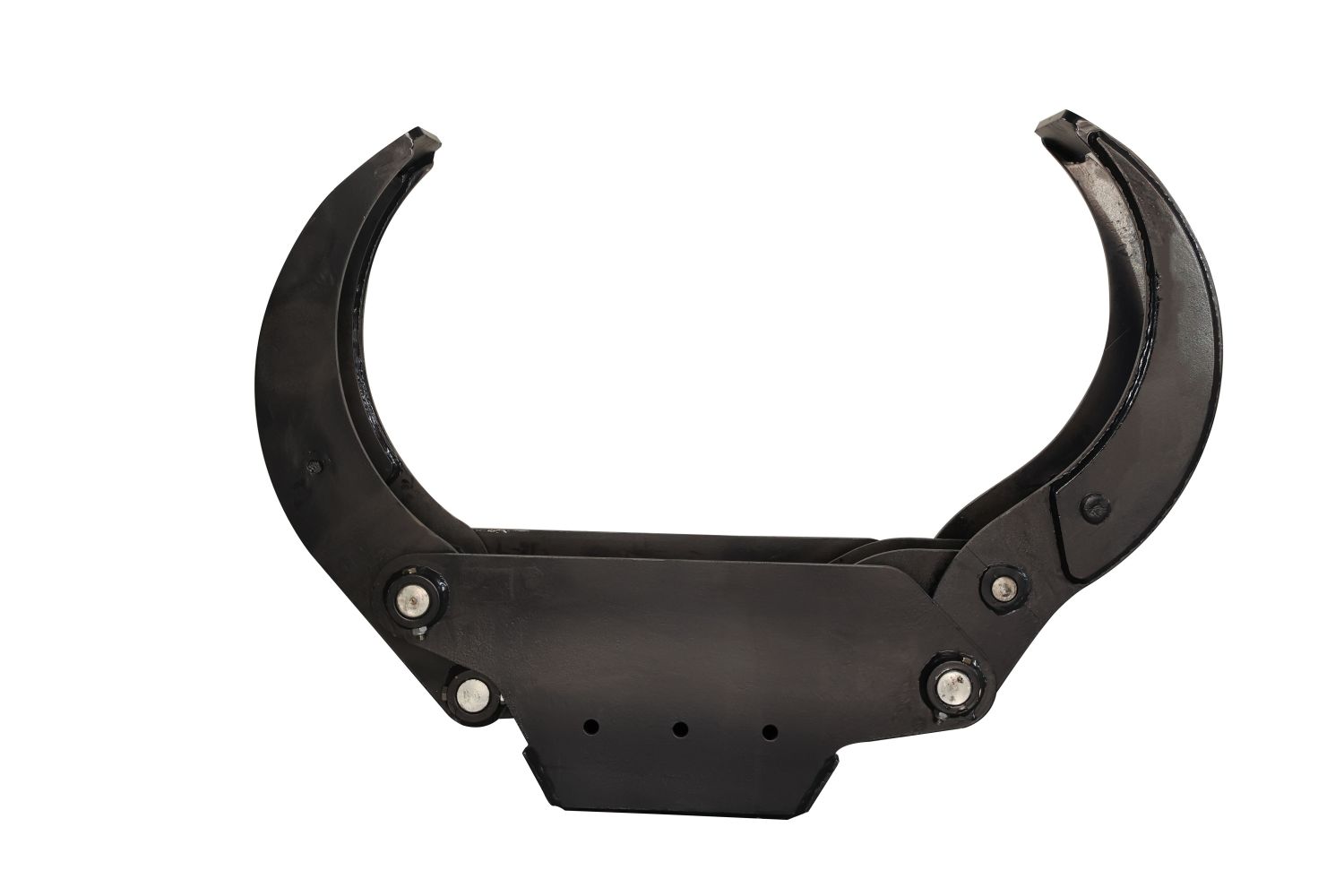

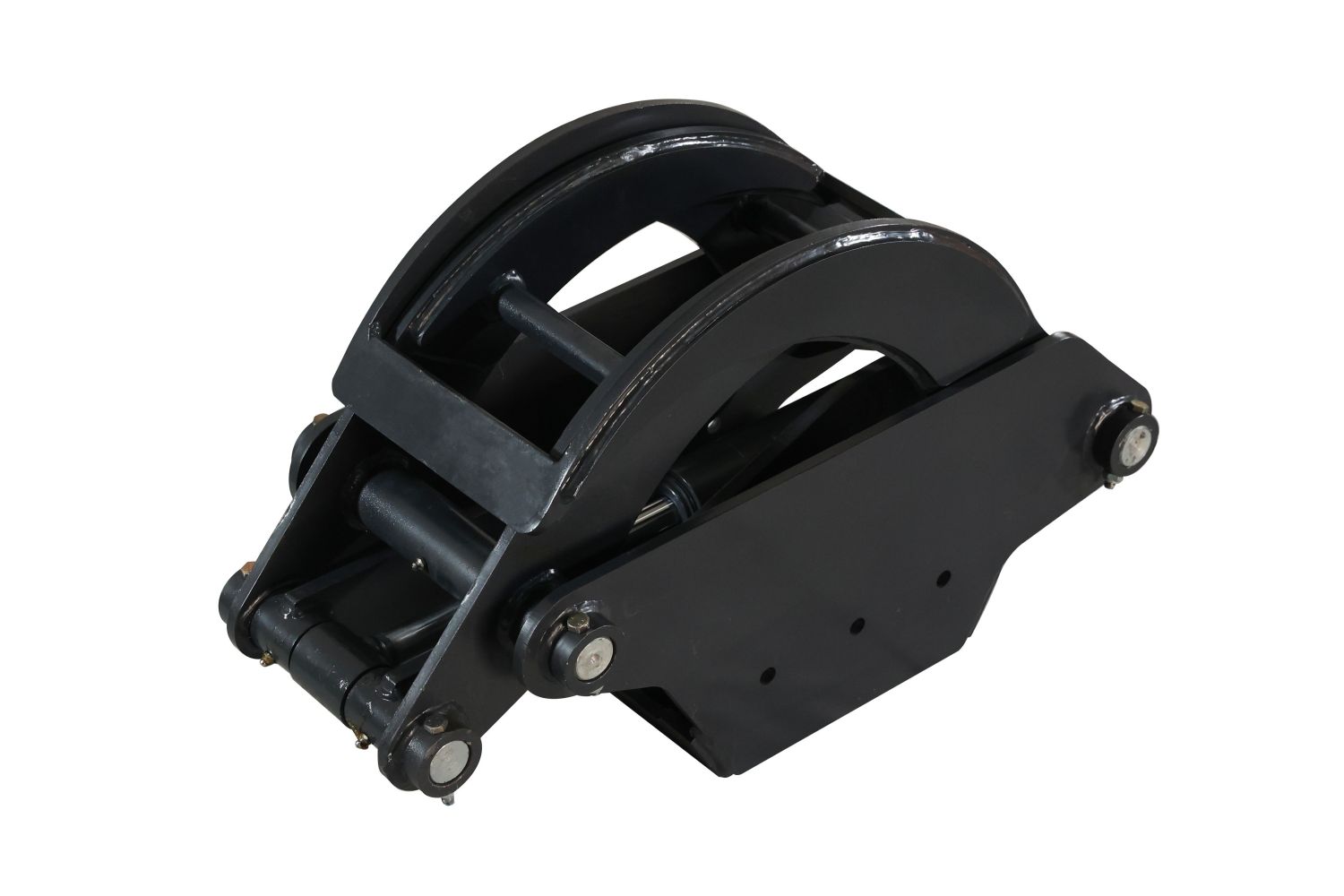

Excavator Forestry Timber Grapple Grab E-TG

Excavator Forestry Timber Grapple Grab E-TG

Timber Grab is a ultimate tool for round timber handling light sorting tasks.

  • Type:

    E-TG
  • Surface Treatment:

    Black Painting or As Request
  • Product Details

Timber Grab is a ultimate tool for round timber handling light sorting tasks.

- It's reinforced for a longer service lift and can be used with a variety of attachments and tools.


Specification


Type
Dimension(WDH)/mm
Opening Range/mm
SWL/kg
Grip Area/m³
Attachment
Weight
Suit Excavator/T
E-TG22S 794*362*490 95-1320 5000 0.20cu.m
S30 S40 S50
123kg 2-3.5
E-TG28S
872*539*562 100-1500 5000 0.28cu.m
S40 S45
262kg 2-3.5
E-TG35S
995*554*673 140-1855 5000 0.35cu.m
S40 S45 S50
321kg 6-8
E-TG42S
1138*560*677 140-2065 7000 0.42cu.m
S40 S45 S50
417kg 6-8
