Farm Equipment Heavy Duty Silage Shear & Tine Grab T-SS

Farm Equipment Heavy Duty Silage Shear & Tine Grab T-SS

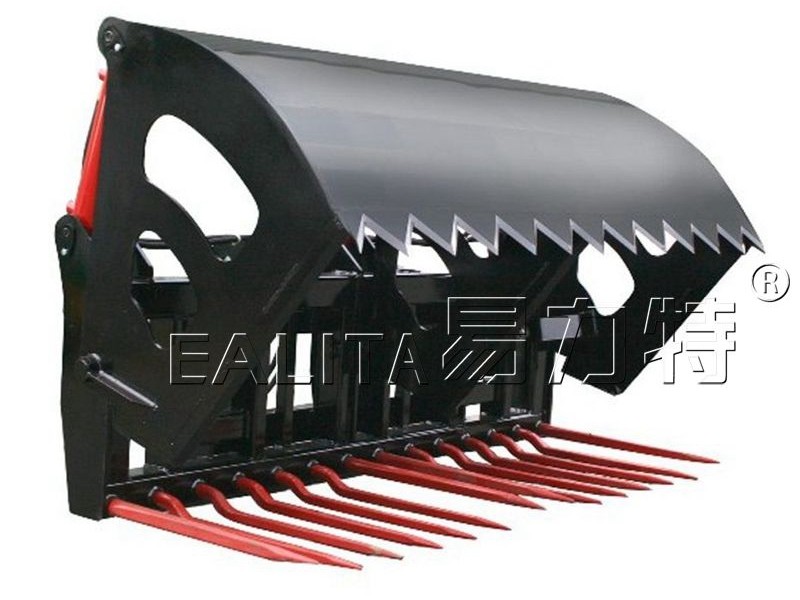

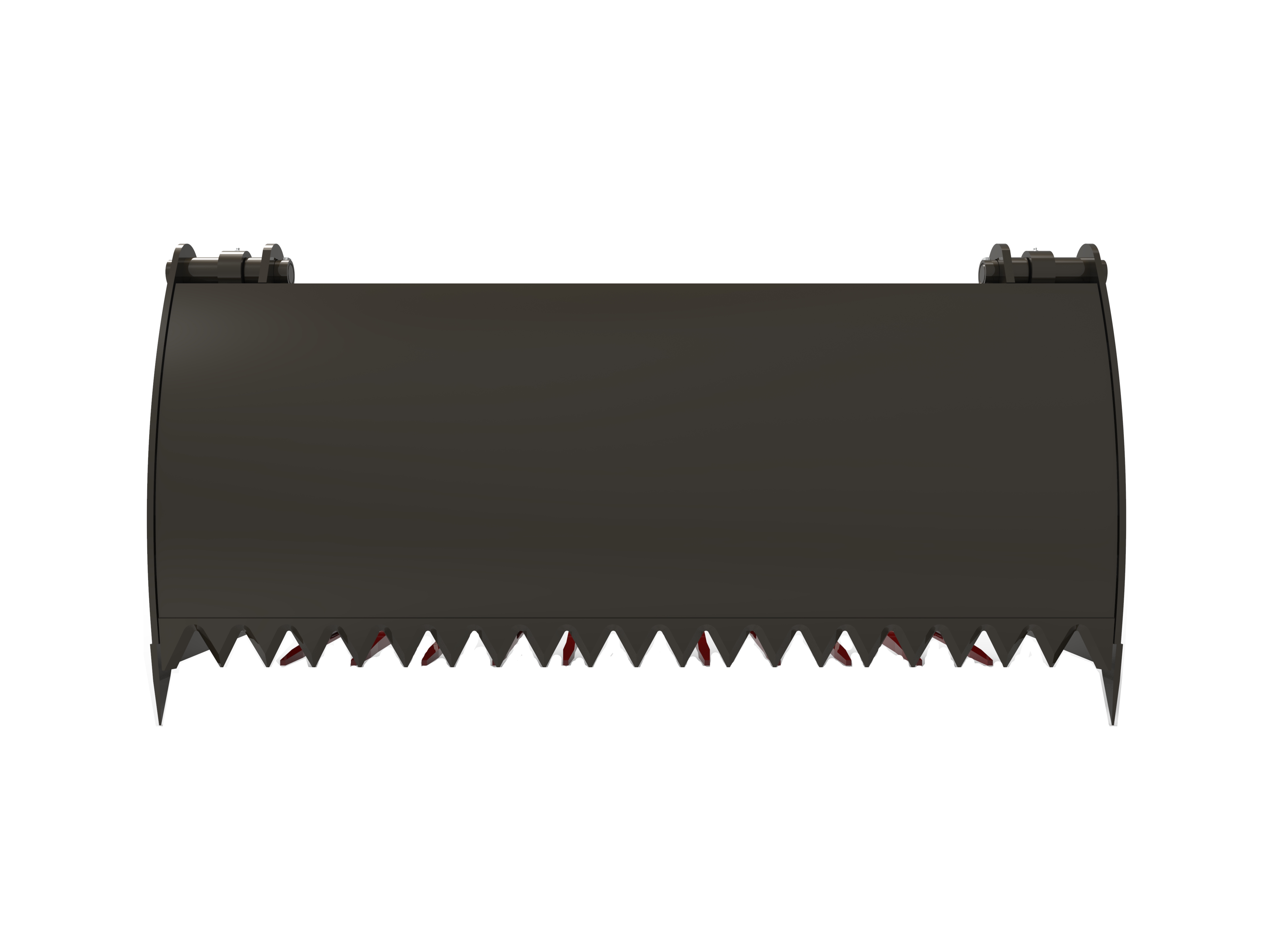

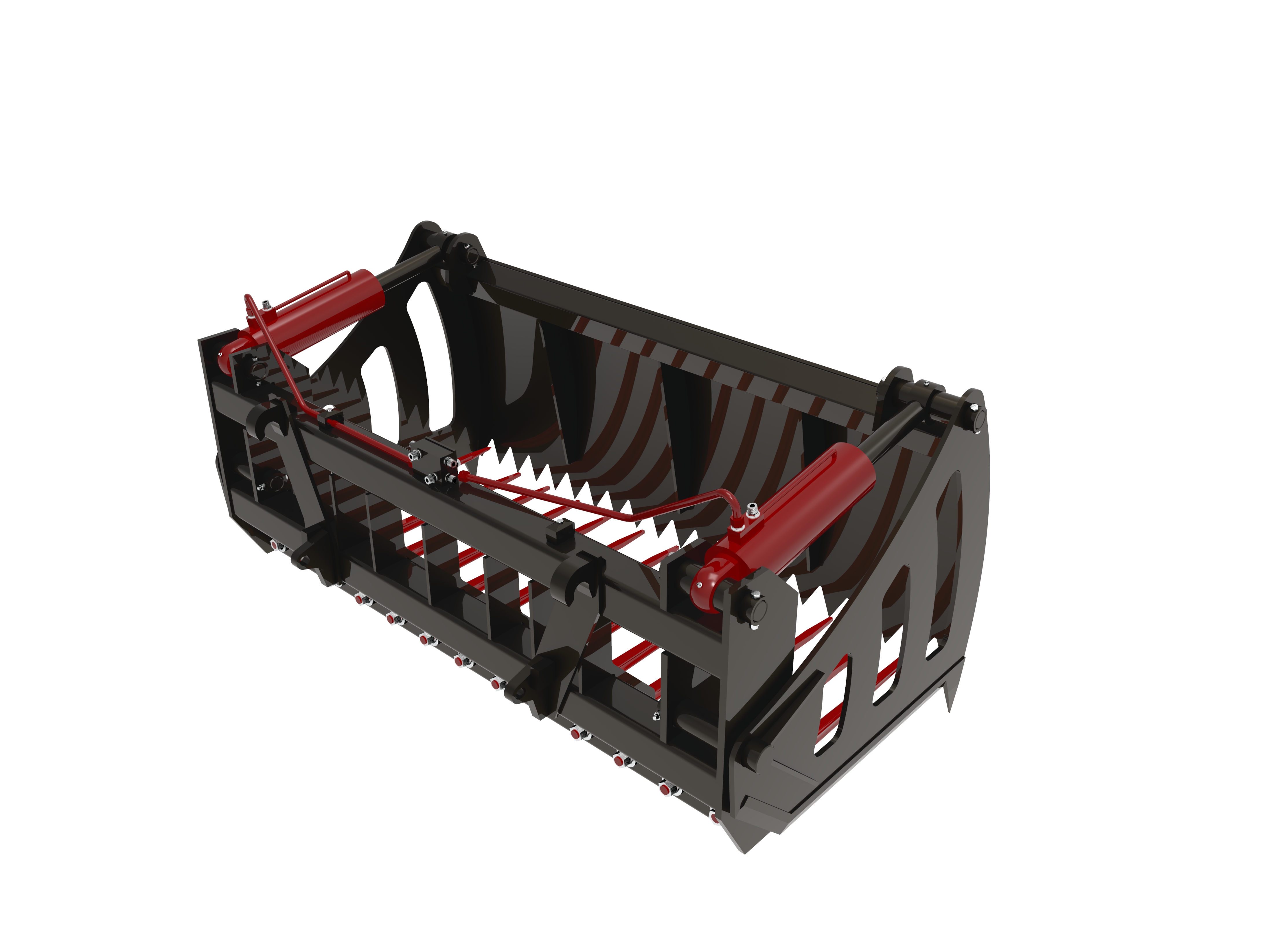

The Silage Shear Grab is designed to cut silage blocks from the silage pit, leaving a smooth face that is sealed to prevent spoilage.

  • Type:

    T-170SS
  • Surface Treatment:

    Black Painting or As Request
  • Product Details

The silage shear grab is designed to cut silage blocks from the silage pit, leaving a smooth face that is sealed to prevent spoliage.

- It requires a third hydraulic control circuit to active the grab/cutting portion of the attachment, which features a hardened serrated front knife and hardened plain knives on the sides.

- The rounded front profile of the grab is forced through the silage in a circular motion, reducing the cutting force required and ensuring an efficient and clean cut.

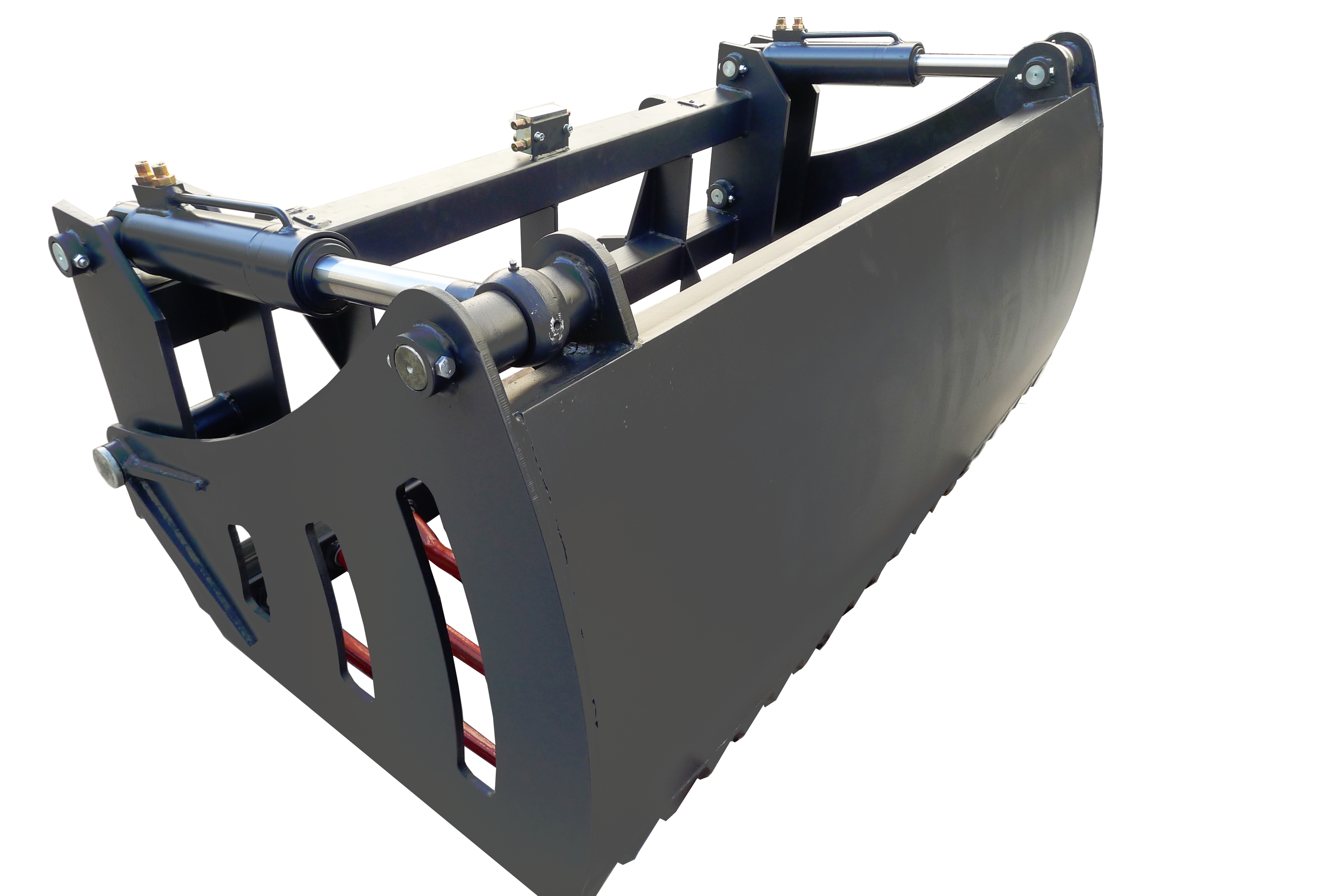

- The two heavy duty hydraulic cylinders provide ample cutting force and the silage shear grab is fitted with quality heavy-duty tines to accommodate this.

- All tines fit into a tapered sleeve and are removable.

Specification

Type Weight Width Depth Volume/Capacity Opening Bottom Tines Side Tines Attachment
T-170SS-EURO
569kg 1700mm 880mm 0.98m3/602kg 730mm 11x670mm 1*670mm EURO
T-170SS-SMS-C
571kg 1700mm 880mm 0.98m3/602kg 730mm 11X670mm 1*670mm SMS
