Forklift Attachment Hydraulic Tipping Hinged Fork F-QFC

Forklift Attachment Hydraulic Tipping Hinged Fork F-QFC

Rational designed, compact structure, excellent driver visibility, motor dexterity.

  • Type:

    F-QFC
  • Surface Treatment:

    Black Painting or As Request
  • Product Details

Rational designed, compact structure, excellent driver visibility, motor dexterity.

- Hydraulic components configuration is reasonable, make good protection of hydraulic system and extend service life.

- Efficient and safe, tipping speed is stable and reliable, easy maintenance.

- Hinged fork cylinder installed with Hydraulic safety lock, more stable and reliable.


Specification

· No. of Cylinder: 2

· Tilt-forward: 45°

· Tilt-backward:25°

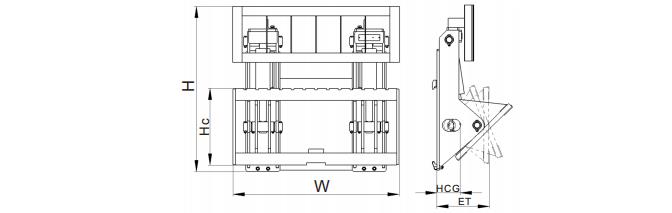

Type Class Carriage Width(mm) Carriage Height(mm) Height(mm) Lost Loas(mm) HCG(mm) Weight(kg) Suit Forklift
F-QFC2A20 II 1040 395 1000 300 155 300 2-2.5T
F-QFC3A30 III 1100 508 1095 350 155 305 3-3.5T
F-QFC3A38 III 1200 508 1100 370 173 405 3.5-3.8T
F-QFC3A40 III 1350 508 1100 370 178 430 4-4.5T
F-QFC4A50 IV 1550 635 1122 385 185 590 5-5.5T
F-QFC4A70 IV 1850 635 1333 415 205 685 7T
