Galvanized Finished Forklift Safety Cage & Work Platform F-WP-N

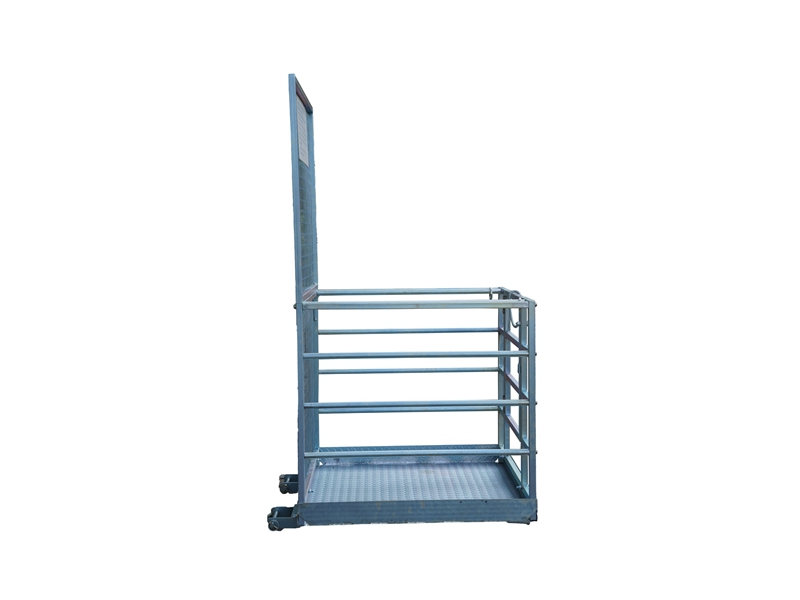

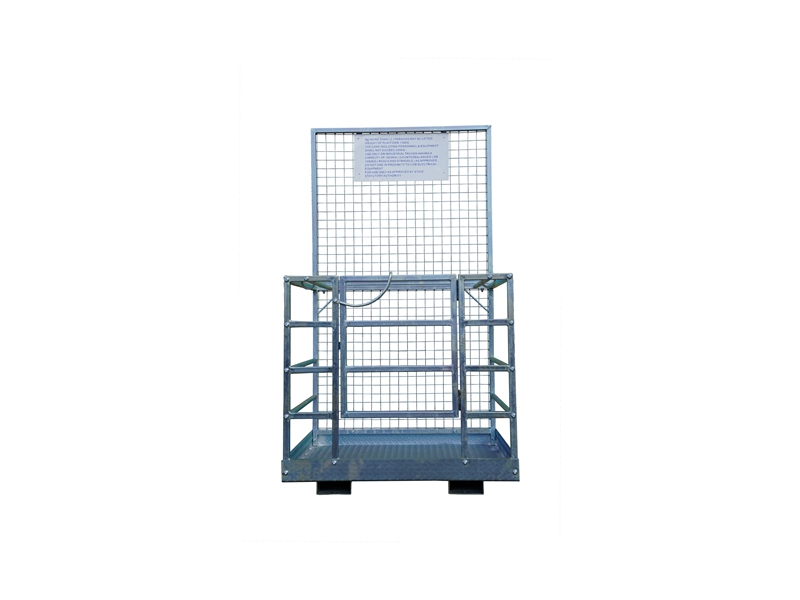

Galvanized Finished Forklift Safety Cage & Work Platform F-WP-N

Designed for forklift use to safely carry out tasks of “short duration” and “occasional usage”such as maintenance or stocktake.

  • Type:

    F-WP-N
  • Products Code:

    03.01.11.0005
  • Surface Treatment:

    Galvanizing or As Request
  • Product Details

Designed for forklift use to safely carry out tasks of “short duration” and “occasional usage”such as maintenance or stocktake.

- Manufactured strictly in accordance with Australian Standard AS 2359.1

- The type WPN Work Platform is suitable for a maximum of two people.

- Supplied with slipper locking pins and 2 harness anchor rings.

- Unit is supplied standard as a “Flatpack” (1230 x 1154 x 165mm),or may be fully assembled upon request.

- Galvanizing finish.

Specifications

• Code: 03.01.11.0005

• Safe Working Load: 250 kg

• Load Centre: 600 mm

• Unit Weight: 110 kg

• Fork Pocket Size: 160 mm x 60 mm

• Fork Pocket Centres: 640 mm

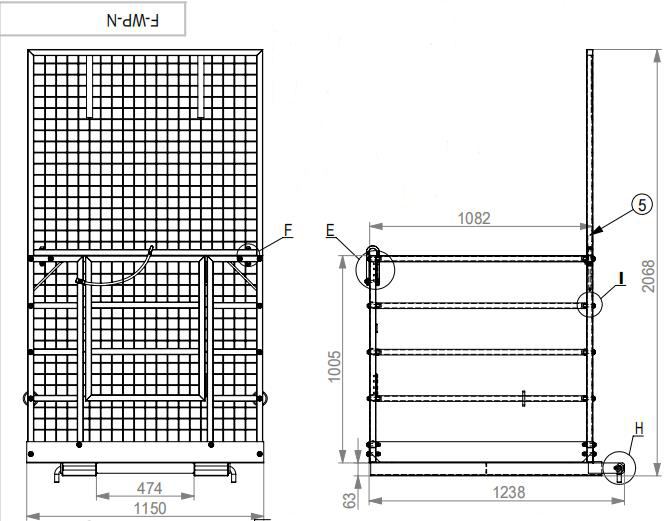

• Dimension(LWH)/mm:1150×1082×1005
