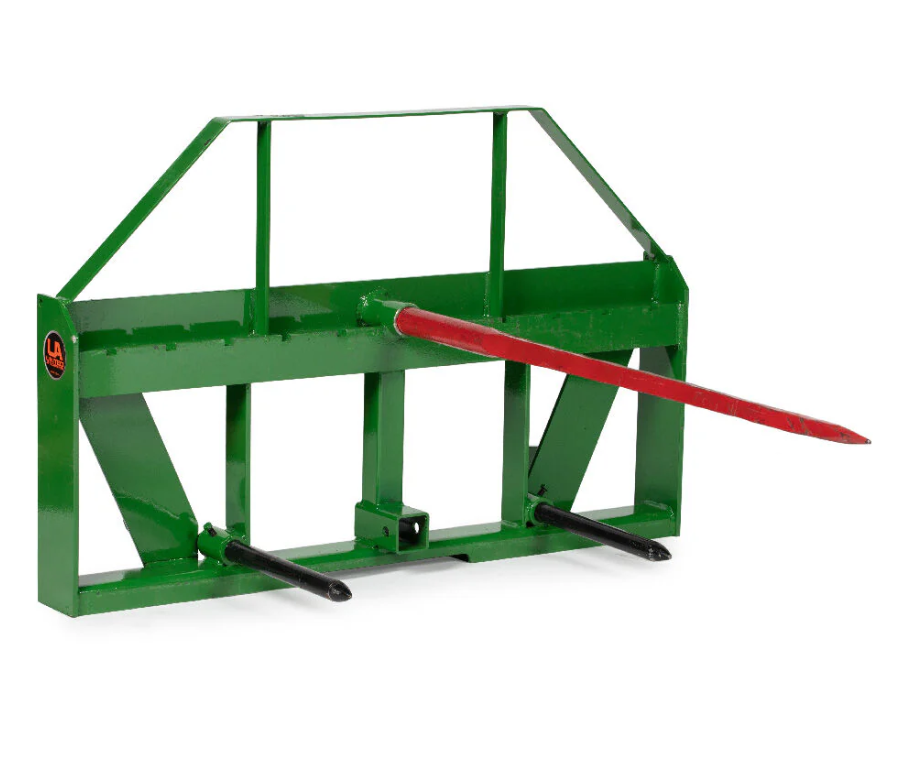

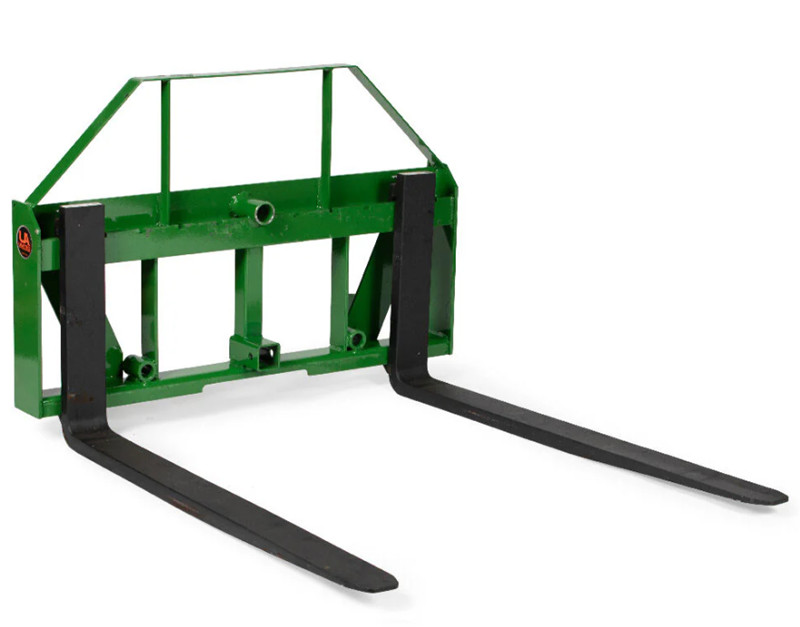

Hay Frame & Pallet Forks is equipped with a pair of 480-inch forks and a 49-inch Hay Bale Spear and two Stabilizer Spears, and is compatible with John Deere Loaders equipped with the Global style mounting system.
Type:
T-FRLD46-EUROProducts Code:
03.02.04.0077Surface Treatment:

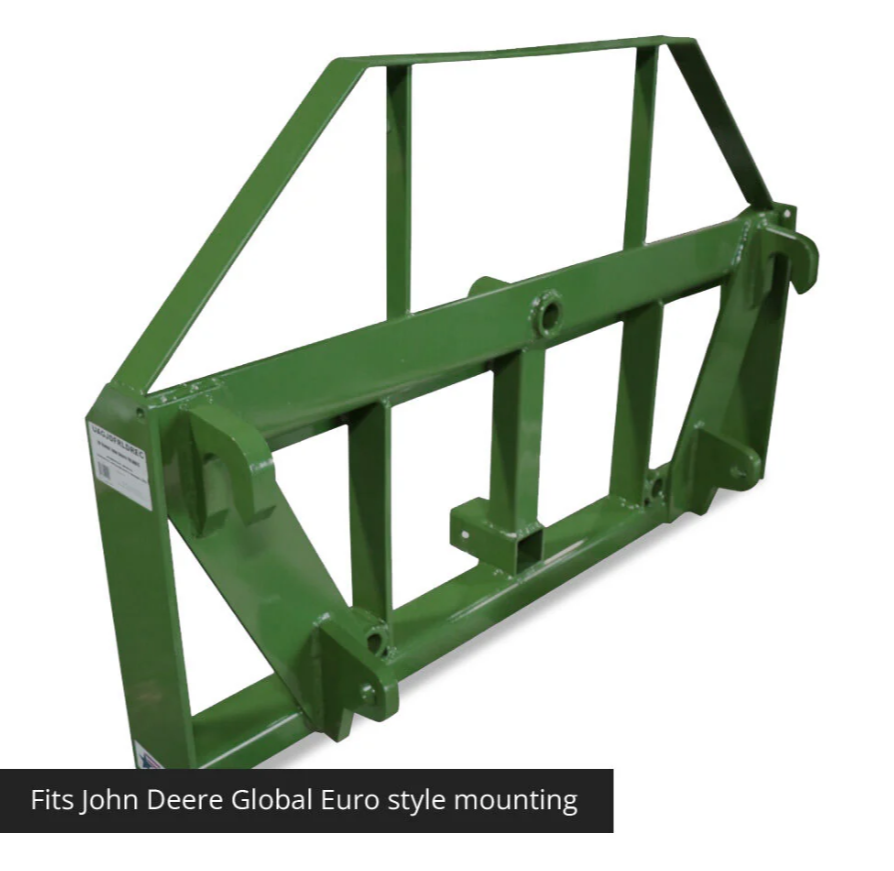

Black Painting or As RequestThis all-in-one Pallet Forks combo Hay Spear is designed to fit John Deere tractors equipped with the Global style mounting system, also known as the Euro mounting system.
The hay frame attachment features a 2-inch receiver hitch and sleeves for installing hay bale spears and slotted carriage bars for mounting class II pallet fork blades.

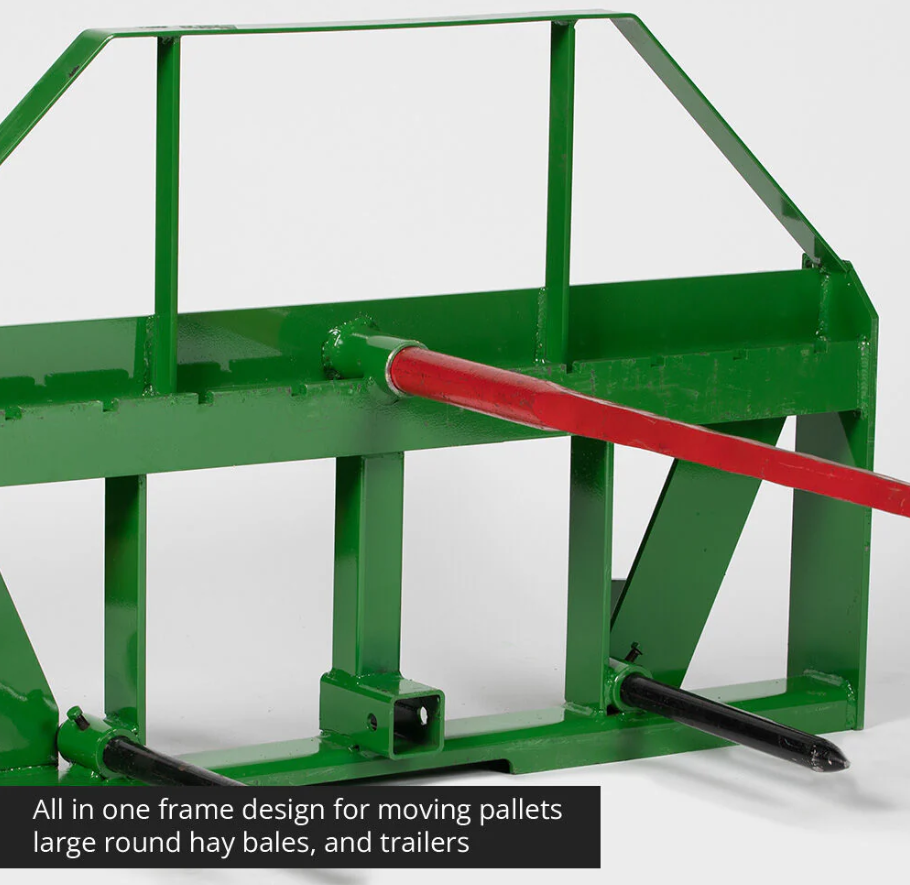

A see-through headache rack is welded to the frame to increase its durability and capacity and add security to your loader arms. No need to worry about logs, hay bales, and other items that are being transported from falling back on your loader arms. All of these will come standard with this hay frame attachment. There is no need to have a frame for hay bales, one for moving pallets and debris, and another for moving trailers. Use this one frame to replace them all!

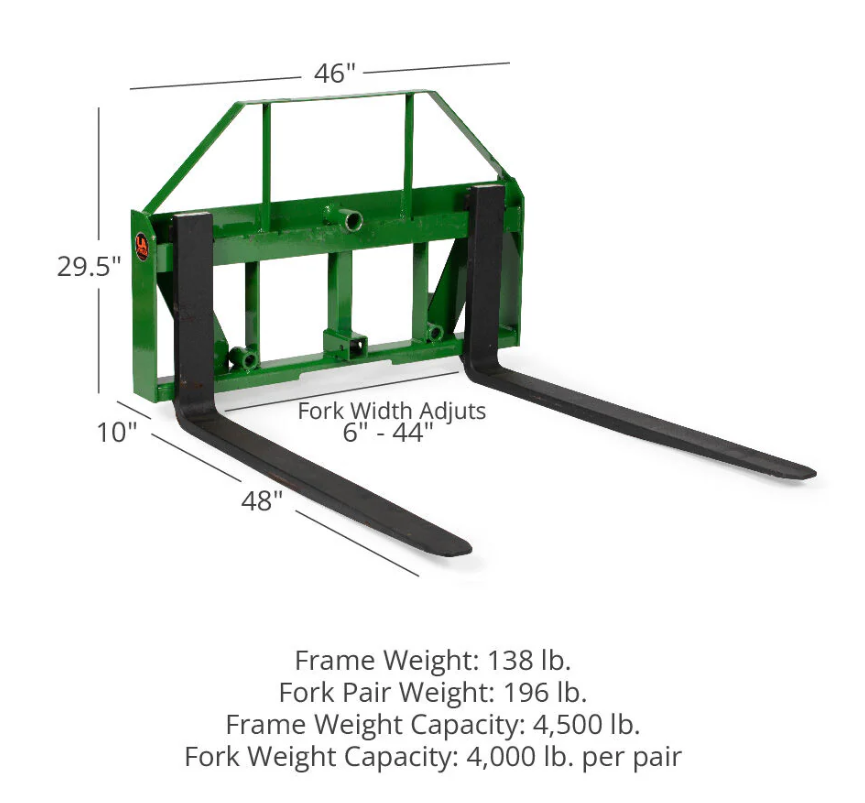

Specifications:
Overall Frame Height: 29.5-in.
Overall Frame Width: 46-in.
Overall Frame Depth: 10-in.
Fork Length: 48-in.
Fork Width: 4-in.
Fork Thickness: 1.58-in.
Fork Width Adjusts: 6-in to 44-in.
Upper to Lower Rail: 16-in.
Main Spear Sleeve: Conus 2
Main Spear Diameter：1.75-in. tapered
Main Spear Overall Length：49-in.
Stabilizer Spear Diameter: 1.25-in.
Stabilizer Spear Length: 17.5-in.
Frame Weight Capacity: 4,500 lb.
Fork Weight Capacity: 4,500 lb. per pair
Fork Pair Weight: 220 lb.
Frame Weight: 138 lb.
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
This attachment requires a third hydraulic control circuit to activate the grab portion or the attachment.
