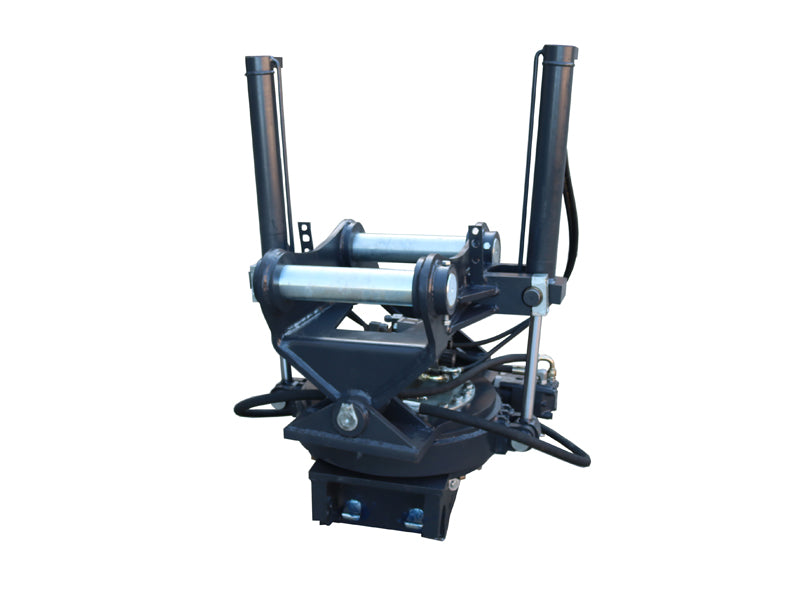

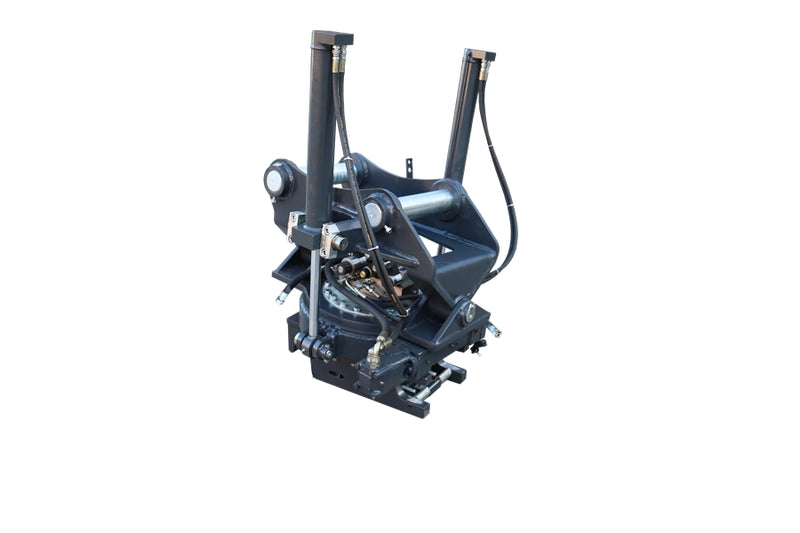

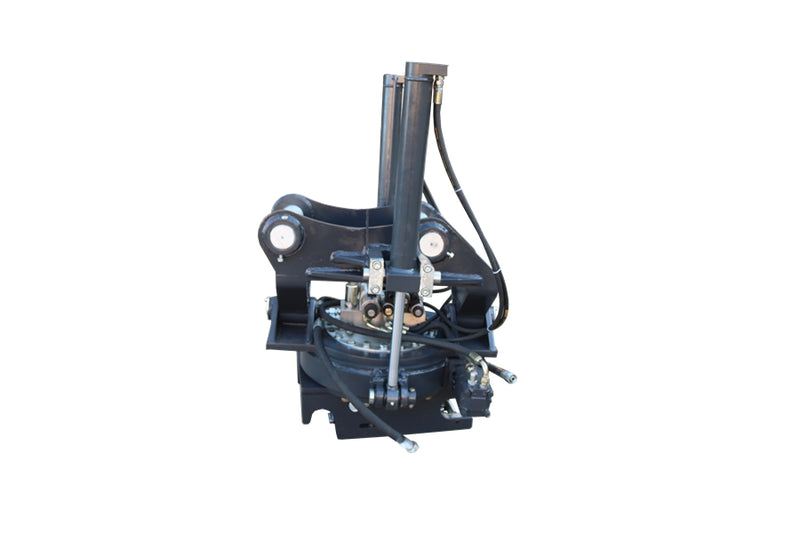

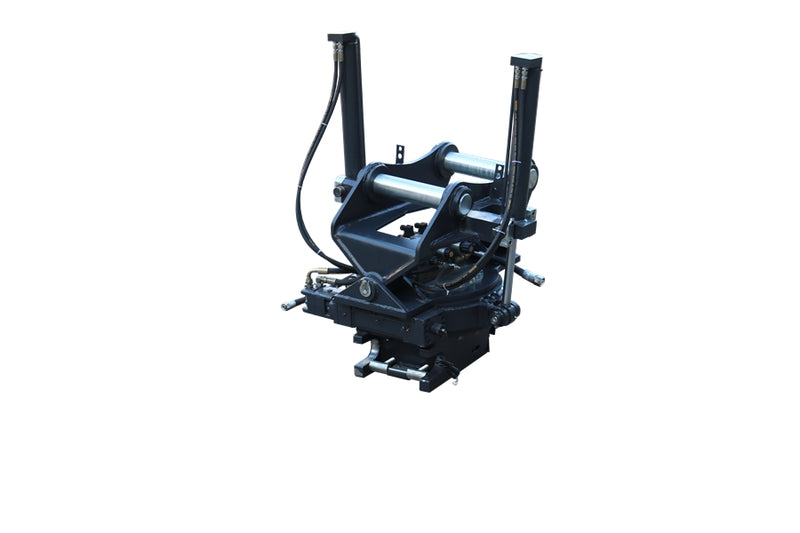

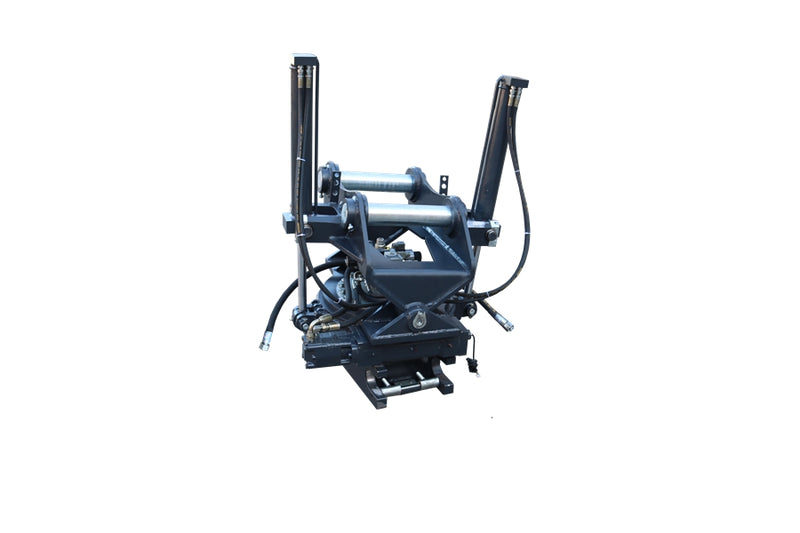

Excavator Tiltrotator 360° Rotation Quick Coupler 1-25T S30 S40 S50 S60 S70 S80

Product Overview

Engineered to transform the way excavators and backhoe loaders perform on site, this heavy duty tiltrotator combines 360-degree continuous rotation with a dual-acting hydraulic tilt mechanism to give operators complete freedom of tool positioning without repositioning the machine. Available across a full range of excavator classes from 1T to 25T, with bracket options from S30 through to S80, this tiltrotator series delivers the power, precision, and durability required for the most demanding civil engineering, landscaping, utility, and demolition applications.

The structural foundation of this tiltrotator is its solid cast steel gear housing, with both the top and bottom sections manufactured from high-grade cast steel for maximum rigidity and impact resistance. Hardened shafts and piston rods are used throughout the tilt and rotation assembly to ensure long-term reliability under continuous cyclic loading, while the dual-acting tilt cylinders provide smooth, responsive tilt control in both directions — giving operators the tactile precision needed for fine grading, pipe laying, and confined-space work where tool angle is critical to outcome quality.

The integrated quick coupling function allows operators to switch between attachments rapidly without leaving the cab, dramatically increasing machine versatility and reducing downtime between tasks. Whether paired with a grading bucket, digging bucket, compaction wheel, or hydraulic hammer, the tiltrotator enables a single excavator to perform the work of multiple specialized machines — reducing equipment costs and improving overall job site efficiency. The 360-degree rotation capability ensures that any attachment can be positioned at the optimal angle for the task at hand, regardless of the machine's orientation relative to the work face.

Axle base dimensions range from 230.5mm on the 1–2T model to 670.5mm on the 20–25T configuration, with unit weights from 90kg to 850kg to match the lifting and hydraulic capacity of each excavator class. All models are precision-manufactured to strict dimensional tolerances and supplied with technical drawings for pre-purchase fitment verification. Custom configurations and bracket adaptations are available upon request to ensure compatibility with specific machine models or coupler systems across leading brands including Caterpillar, Komatsu, Volvo, Sany, and Liebherr.

Details

Features:

·Tilt Rotator

·Gear housing, bottom and top in solid cast steel, hardened shafts and piston rods, dual acting tilt cylinders

Specifications:

Technical Drawing:
