Product Overview

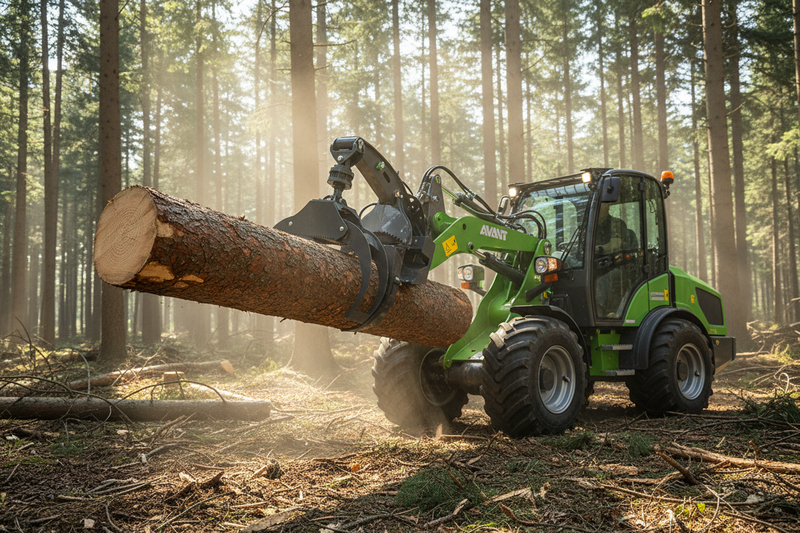

It is suitable for loading and handling wood in wood industry or landscaping enterprises. Its various models are well-suited for compact loaders, and it can also provide other customized sizes upon request.
Details
Features:
·Log Grapple
Specifications:
|
Type |
SWL/kg |
Dimension(WDH)/mm |
Opening Range(OR)/mm |
Attachment |
Operating Pressure/MPa |
Hydraulic Flow/LPM |
Weight/kg |
|
CW-LG450(80-1020)-Avant300-500 |
450 |
708×1206×1142 |
80-1020 |
Avant300-500 |
20 |
60 |
176 |
|
CW-LG450(80-1020)-Avant300-700 |
450 |
708×1206×1142 |
80-1020 |
Avant300-700 |
20 |
60 |
175 |

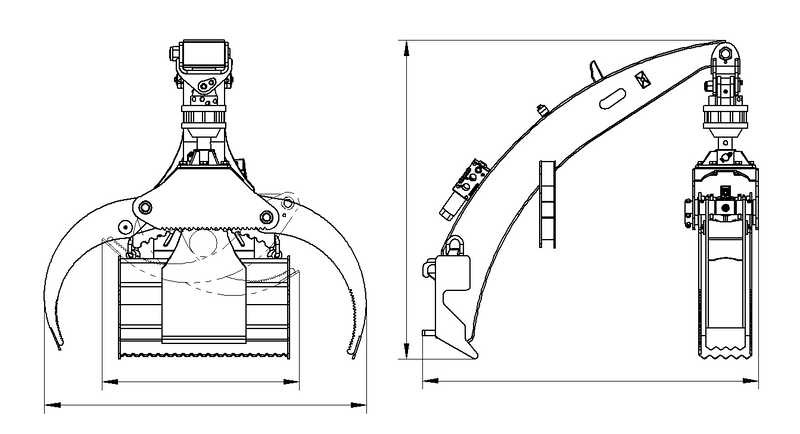

Technical Drawing:
