Welded with flux cored wire for the best possible strength.
Surface Treatment:
Shot Blasting FinishWelded with flux cored wire for the best possible strength.
- Beveled welds tops the penetration of the material
- Drilled holes for best fitting
- Other sizes on request
- S30, S40, S45, S50, S60, S70
|
Type
|
Length(L)/mm
|
Width(W)/mm
|
Height(H)/mm |
Axle Base(A)/mm
|
Weight/kg
|
Suit Excavator/T
|
|
E-S30
|
290 | 205 | 50 | 230.5 | 5 | 1-2 |
|
E-S30-150
|
260 | 172 | 50 | 200 | 4 | 1-2 |
|
E-S40
|
380 | 238 | 55 | 300.5 | 10 | 2-3.5 |
|
E-S45 |
520 | 338 | 70 | 430.5 | 21 | 4-6 |
|
E-S50 |
520 | 318 | 70 | 430.5 | 22 | 6-8 |
|
E-S60 |
600 | 398 | 85 | 480.5 | 40 | 10-14 |
|
E-S70 |
740 | 518 | 115 | 600.5 | 76 | 16-18 |
|
E-S80 |
830 | 658 | 135 | 670.5 | 109 | 20-25 |
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

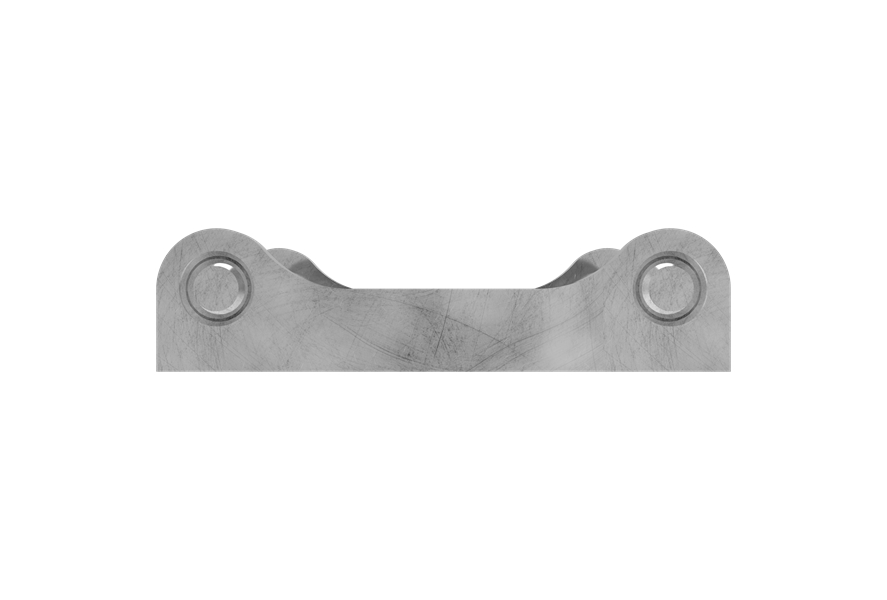

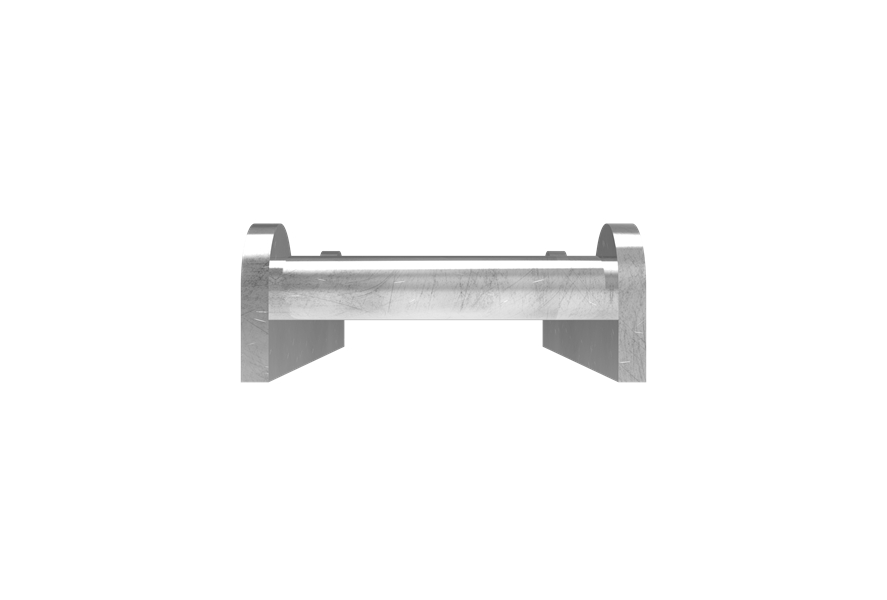

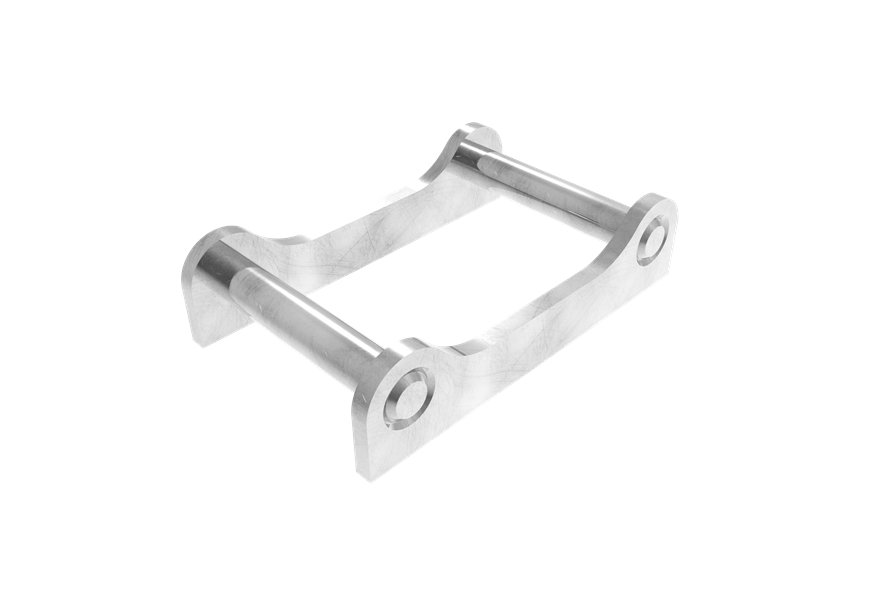

S-Couplings with a straight bottom for mounting onto equipment for excavators.
Loose grind mounts with a straight bottom for mounting on the tool to the excavator.
Welded with flux cored wire for best strength, Bevelled welds best penetration into the material. Drilled holes for the best fitting C45 steel in axles.
