Skid Steer Pro Series Grapple Bucket S-GB

Skid Steer Pro Series Grapple Bucket S-GB

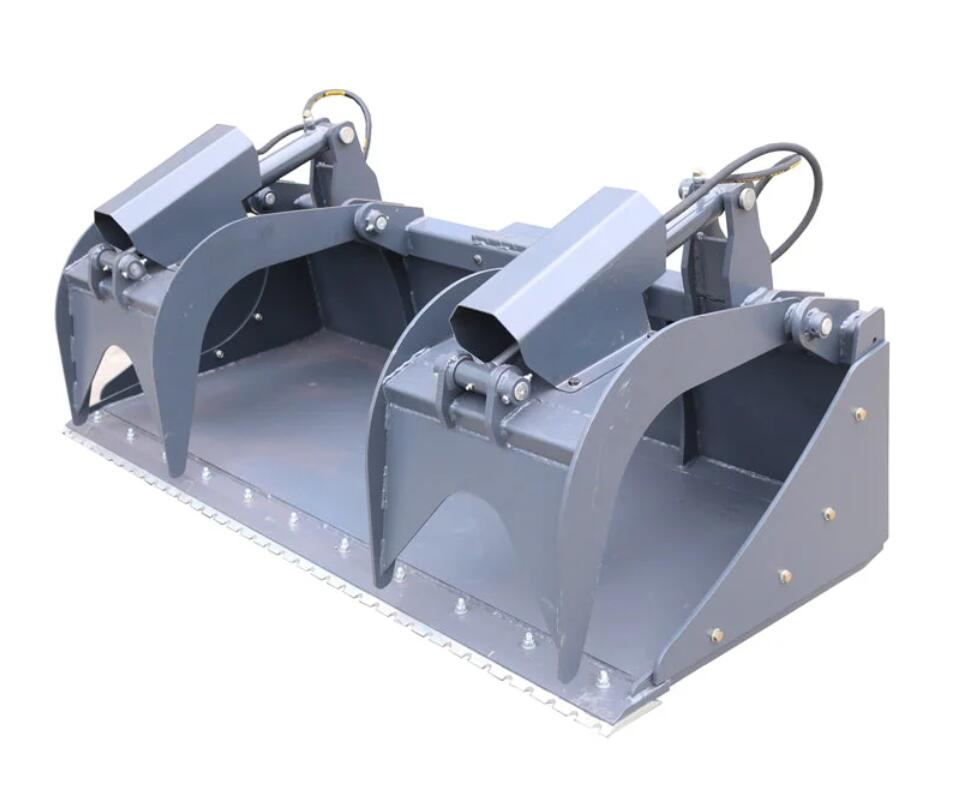

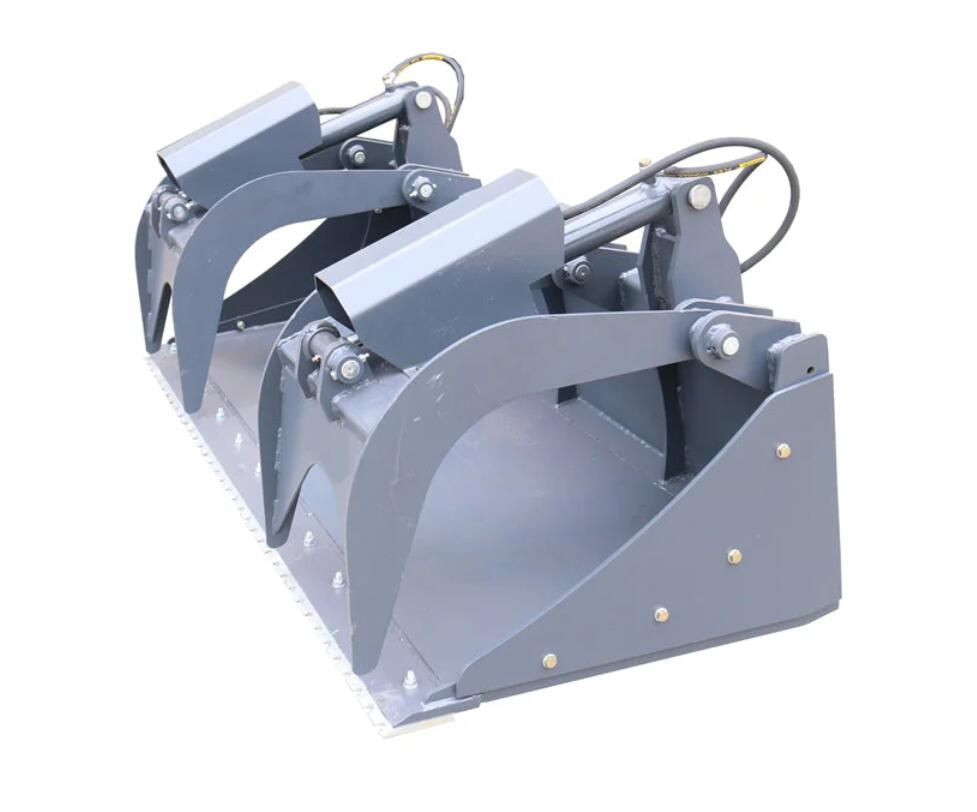

Skid Steer Grapple Bucket Attachment Professional Series, combines the loading and leveling actions of a skid steer bucket with the "grabbing ability" of two hydraulic grapples.

  • Type:

    S-GB
  • Surface Treatment:

    Black Painting or As Request
  • Product Details

Skid Steer Grapple Bucket Attachment Professional Series, combines the loading and leveling actions of a skid steer bucket with the "grabbing ability" of two hydraulic grapples.


The grapple bucket attachment's basic design allows it to load and grapple large and/or uneven objects as well as clean up the smallest debris. Our grapple buckets feature enclosed cylinders and hoses to protect against debris and stray limbs.


We have also increased the depth of the bucket - giving it a larger loading capacity than ever before. Reinforced 1/2" ribbed bottom reduces bowing and wear of the grapple bucket. We use 1/4" reinforced body and 1/2" tines, with the unique feature of having cylinder barrel covered with optional rod covers available (specail order)

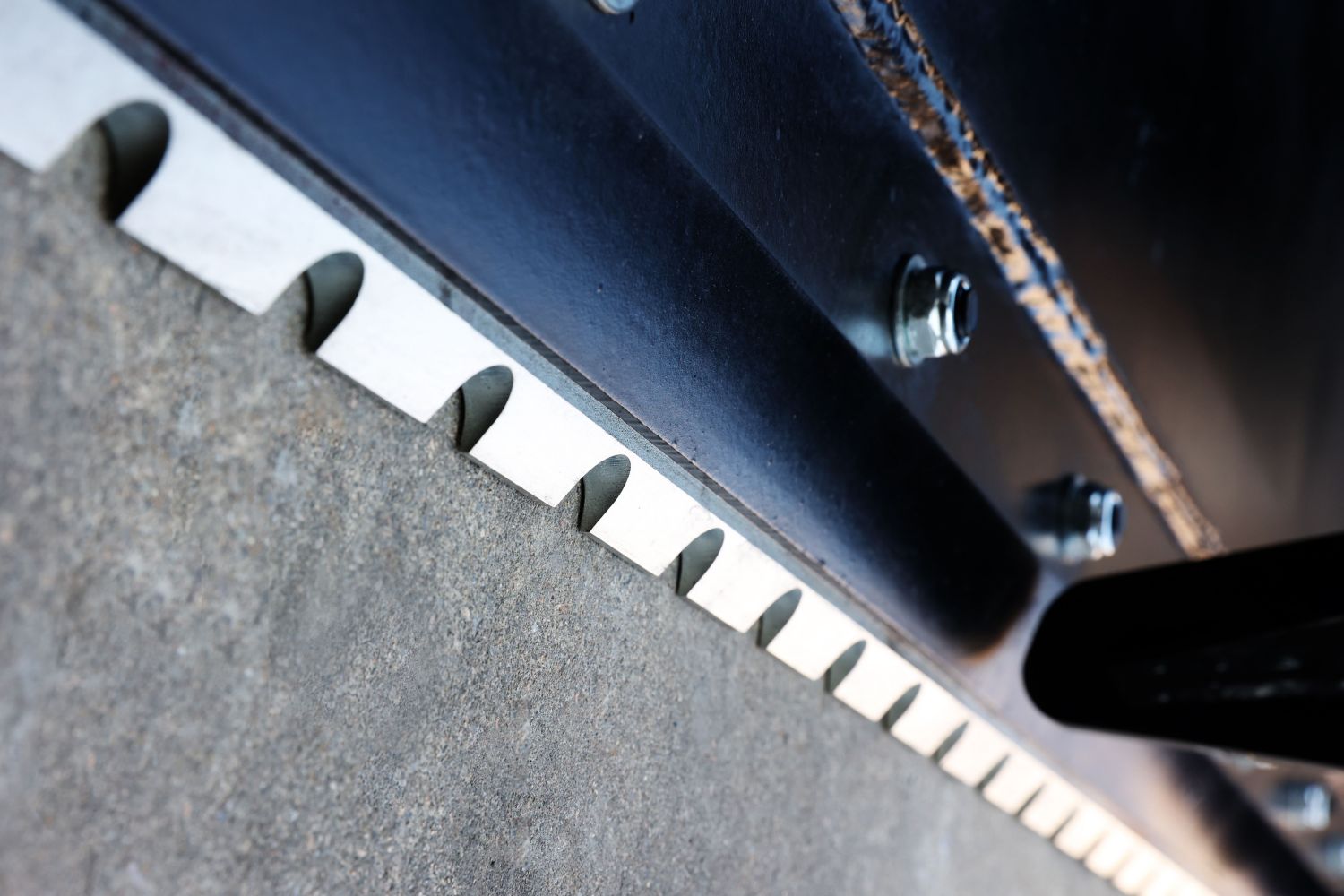

The cylinders have a 2" bore and 10" stroke. We also protected the hydraulic lines by routing them inside of tubing to protect from falling debris and other wear and tear. Every pivot point has a grease fitting, and it comes standard with a 20mm thickness welded on cutting edge (may also add a reversable Bolt On Edge).


Type S-GB1600(63IN)-MP1220
S-GB1700(67IN)-MP1220
S-GB1830(72IN)-MP1220
S-GB2160(85IN)-MP1220
Width 1600mm -63inch 1700mm -67inch 1830mm -72inch 2160mm -85inch
Depth 887mm 887mm 887mm 887mm
Height 754mm
754mm 754mm 754mm
Weight (kg) 413kg 426kg 445kg 483kg
Cutting edge Thickness 20mm
20mm 20mm
20mm
Bolt-on Cutting edge Thickness
12mm 12mm 12mm 12mm
