Skid Steer Trailer Receiver Mount Plate Hitch

Skid Steer Trailer Receiver Mount Plate Hitch

Use this Quick Tach mount plate to easily move trailers or other tow-able implements that use the 2" trailer hitch.

  • Type:

    S-TRH1220
  • Products Code:

    03.03.12.0021
  • Surface Treatment:

    Black Painting or As Request
  • Product Details

Use this Quick Tach mount plate to easily move trailers or other tow-able implements that use the 2" trailer hitch.

- Fits skid steers with the universal quick tach mounting system and tractors with the skid steer style quick tach

- 3,000 lbs capacity

- 4 Gussets for superior strength and integrity

- 2" trailer receiver hitch

- Oblong holes for tow chains

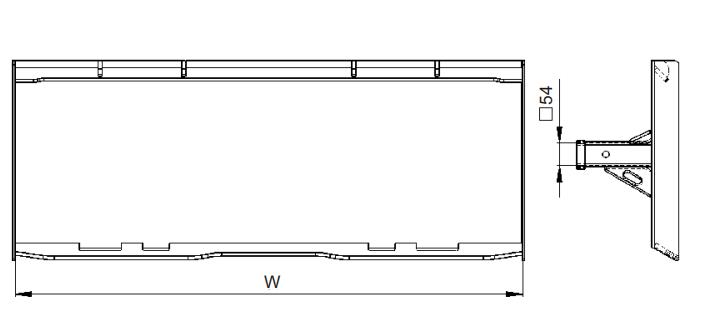

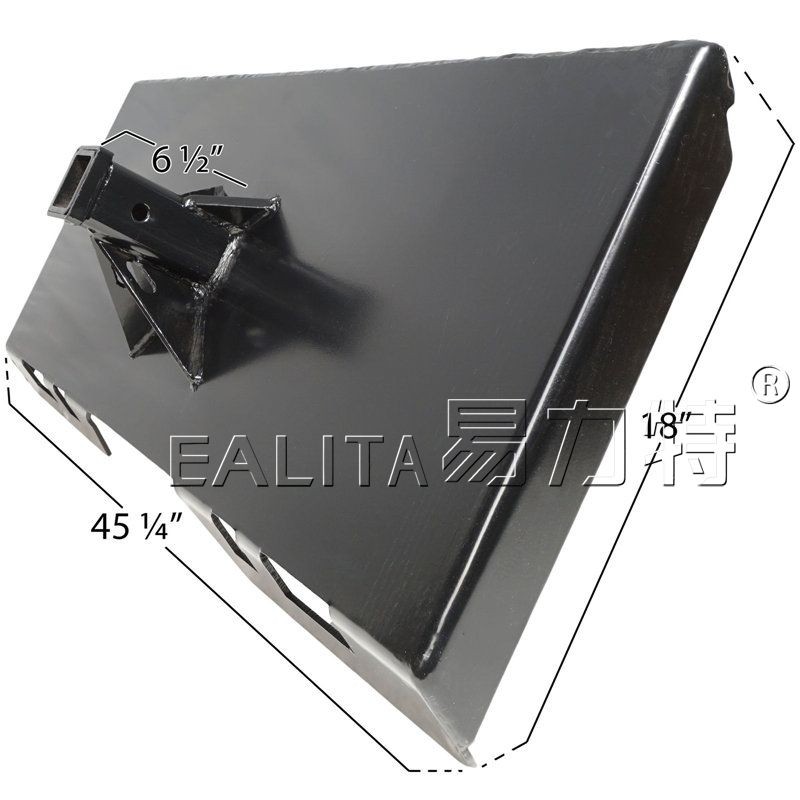

Specifications

- Weight: 39kg

- Outside width: 1232mm

- Inside width: 1220mm

- Height: 480mm

- Top bar: 10mm thick

- Plate: 6mm thick
