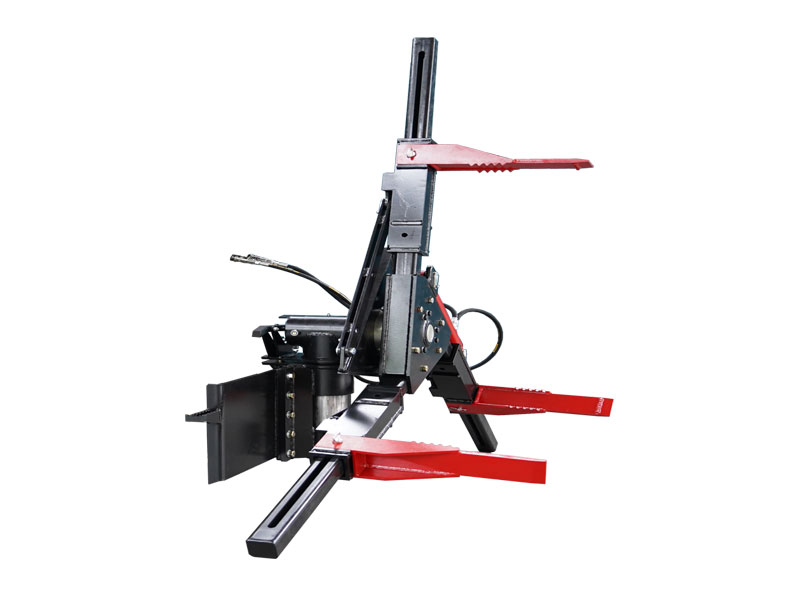

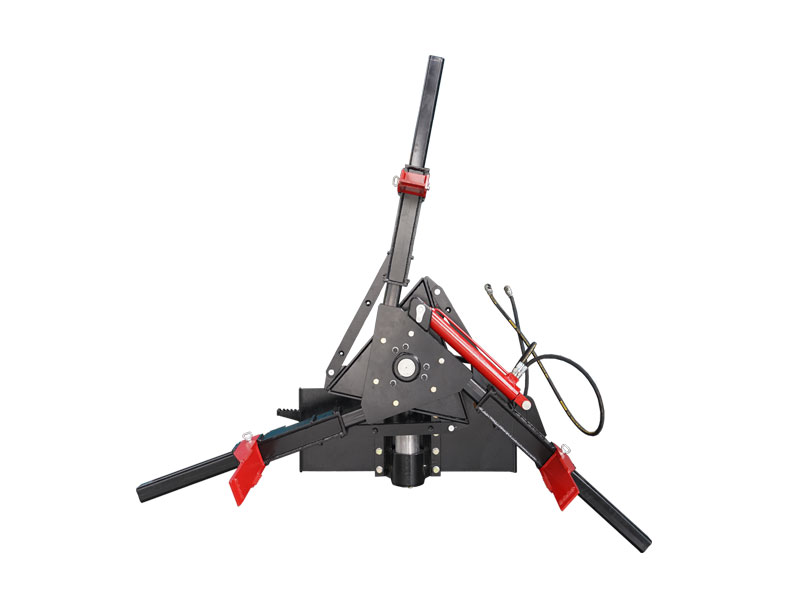

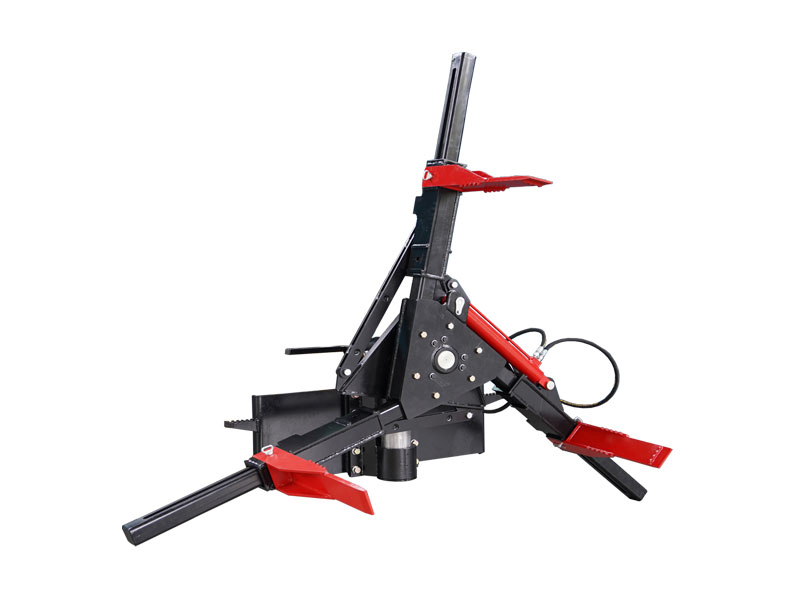

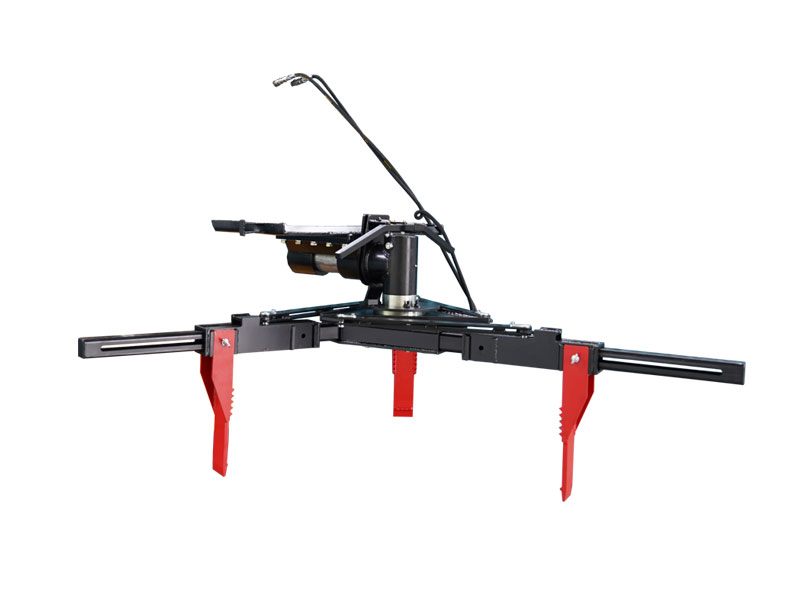

The Tire Grabber attachment mounted to any equipment with a hydraulic source, The Tire Grabber uses an extended reach gripper and 50-degree rotation mechanism that allows you to efficiently mount tires onto large pieces of equipment.
Type:
03.03.42.0002Products Code:
S-TG4000-1536×1536Surface Treatment:
Black Painting or As Request
The Tire Grabber attachment mounted to any equipment with a hydraulic source, The Tire Grabber uses an extended reach gripper and 50-degree rotation mechanism that allows you to efficiently mount tires onto large pieces of equipment.
Farmers are changing large tires more than ever because of sprayers, new machinery, and custom harvesting. Now you can combat stubble wear on your front tires by using The Tire Grabber to rotate them to the back. Lose the pallet forks, straps, and chains; Safely change and store large tires in a way that saves time and protects you and your employees from injury.

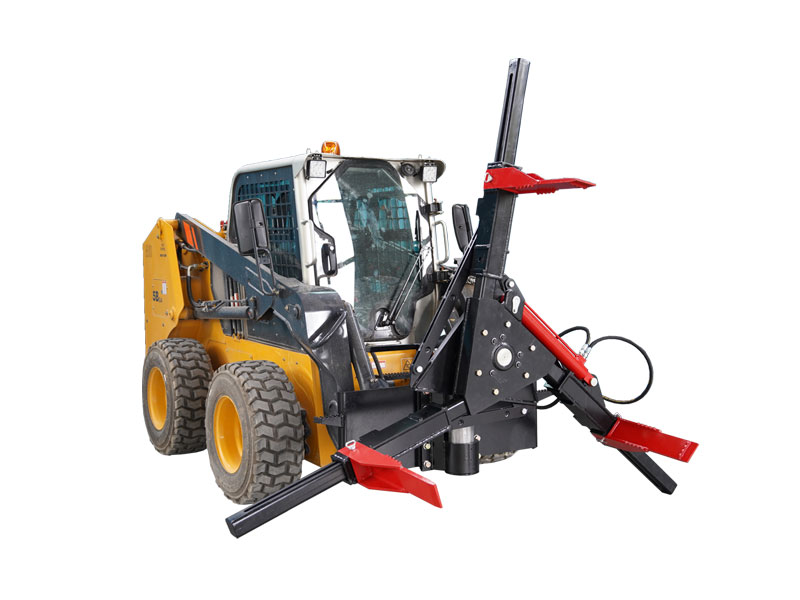

No more tires against the wall with this tire grabber that picks up, swings sideways and rotates. They can be lowered and stacked neatly. This not only saves time, but is safer, easier and less stressful. It makes changing tires on large implements a pleasure. Designed to be used as an attachment on a skid steer loader, the Tire Grabber easily adapts to a tractor or payloader.
Specifications:

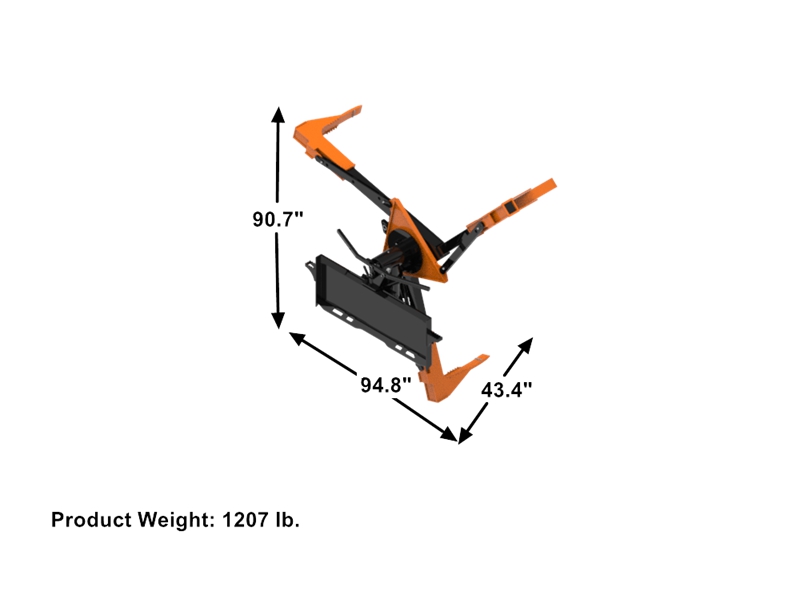

Overall size(L*W*H): 2409*1101*2297mm
Weight:547.4KG
Capacity:1800kg
Diameter of tire:1370-2260mm
Rotation Angle: 50°
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
