Wheelie Bin Tipper for Emptying Standard 240 litre Plastic Bin F-FWE24

Wheelie Bin Tipper for Emptying Standard 240 litre Plastic Bin F-FWE24

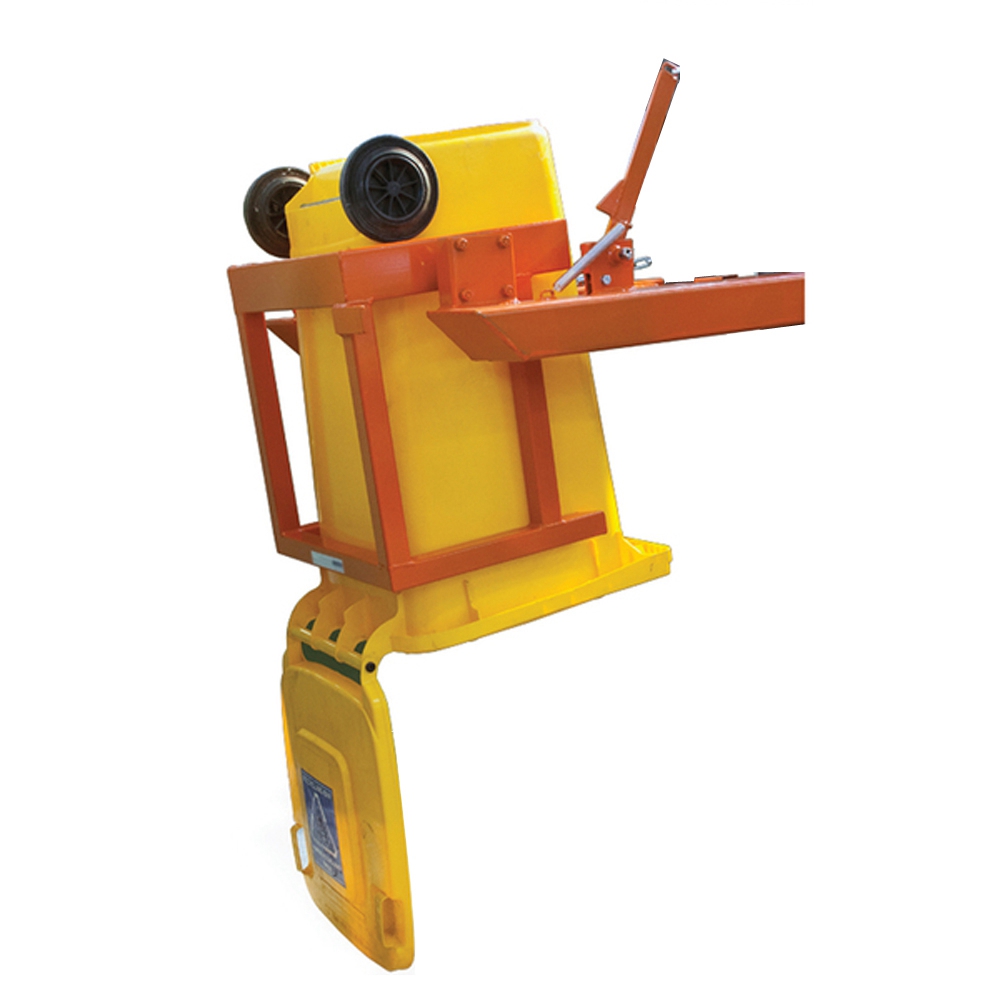

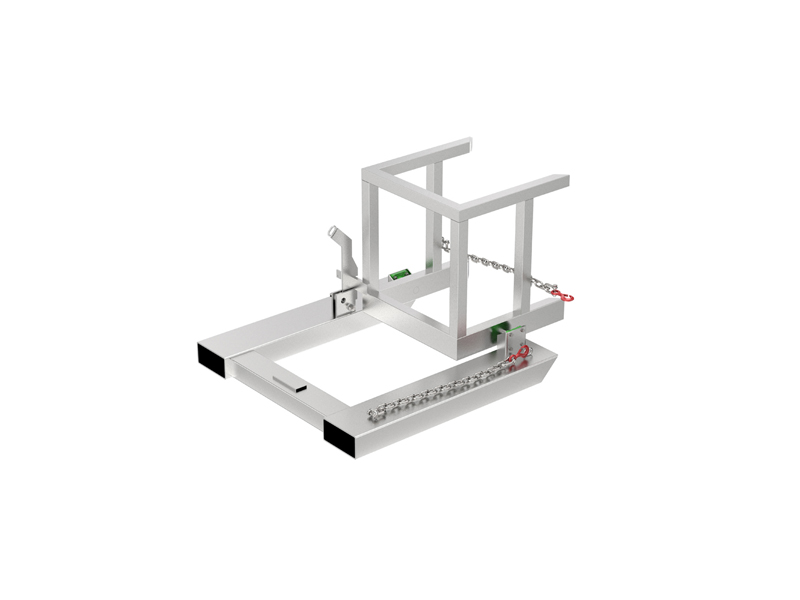

The type F-FWE24 Wheelie Bin Tipper has been designed for emptying standard 240 litre plastic bins.

  • Type:

    F-FWE24
  • Products Code:

    03.01.18.0004
  • Surface Treatment:

    Orange Painting or As Request
  • Product Details

The type F-FWE24 Wheelie Bin Tipper has been designed for emptying standard 240 litre plastic bins.

- The Bin is secured in the cradle by a Safety Chain allowing the bin to be lifted/transported about the workplace and emptied.

- The tipping operation is simple and safe with the operator never having to leave his seat using a draw chord to activate the tipping action.

- Standard finish on all Wheelie Bin Tippers is painted orangered.

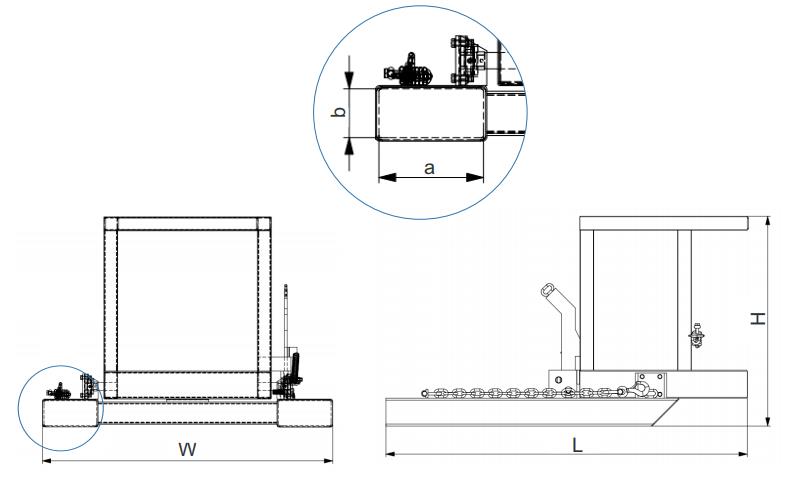

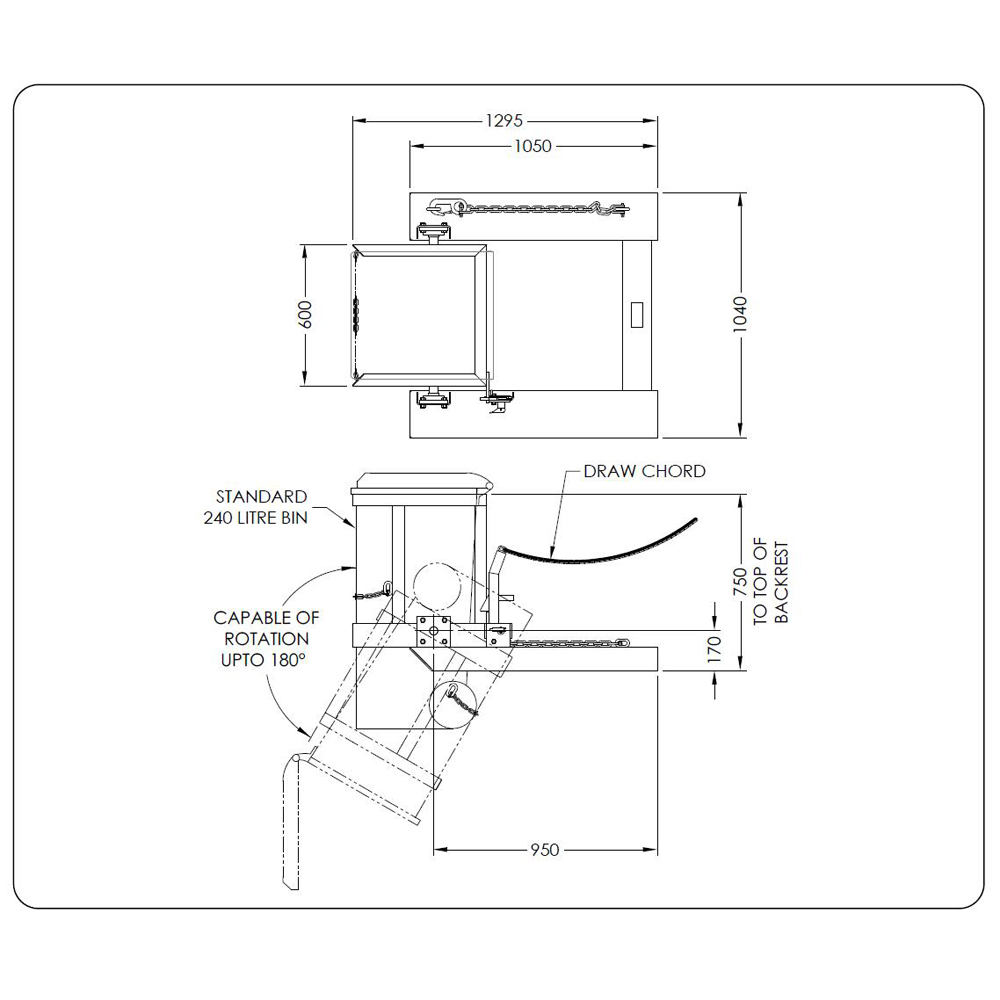

Specifications

· Code: 03.01.18.0004

· Working Load Limit(WLL) 500kg

· Load Centre 1000mm

· Unit Weight 80kg

· Pocket Size 185 x 65

· Pocket Centres 840mm

· Capable of 180° Rotation

· Horizontal C of G 650mm

· Vertical C of G 80mm

· Length 1295mm

· Width 1040mm

· To Top of Backrest 750mm
