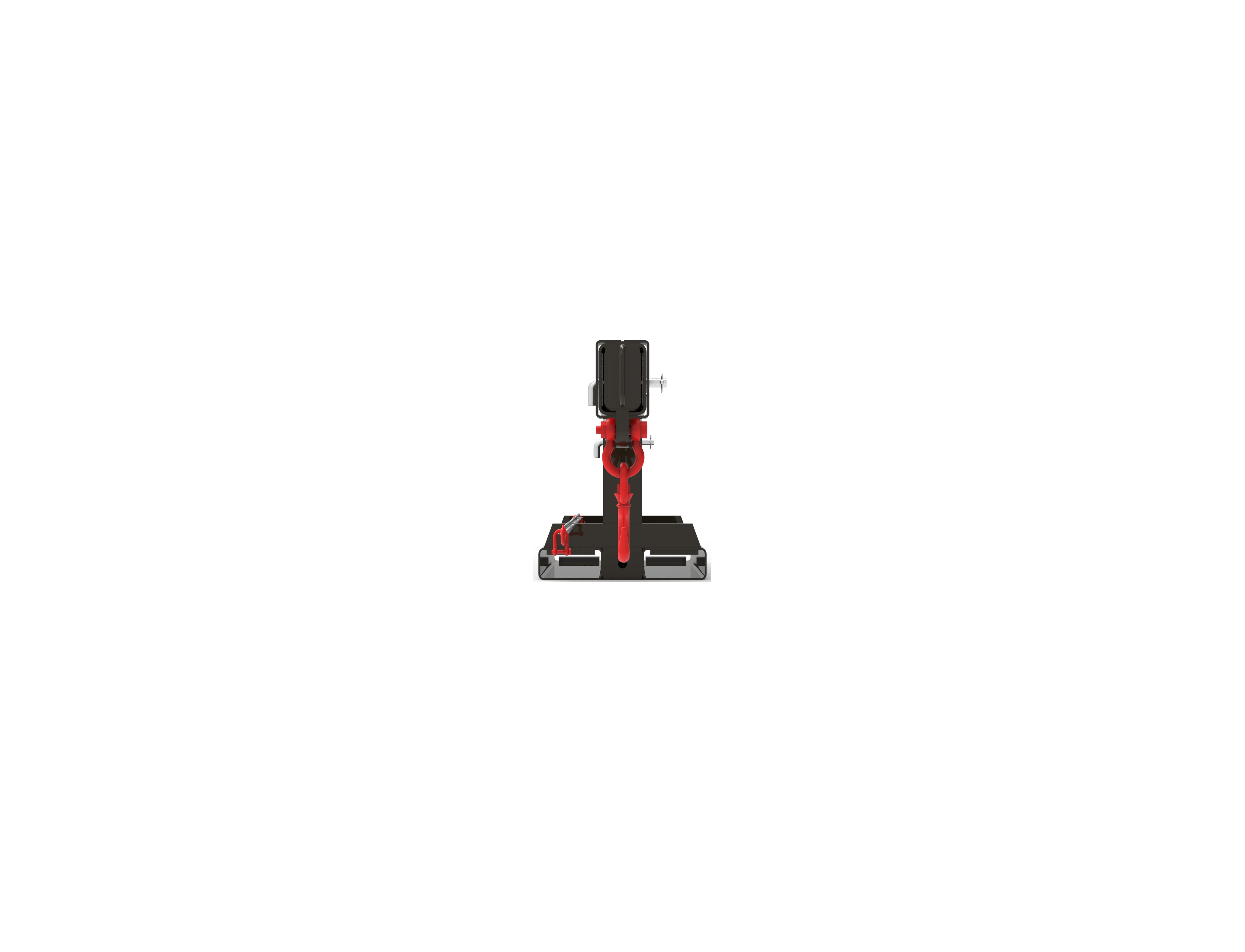

One of the most versatile jib attachments in our range and allows for additional height of up to 2.23m.
Type:
F-TJCL45Products Code:
03.01.04.0023Surface Treatment:
Galvanizing or As RequestOne of the most versatile jib attachments in our range and allows for additional height of up to 2.23m.
- With a 3.53 metre reach when fully extended. This slip-on attachment is held to the forklift by a safety chain.
- The overall jib length when closed is 2.1 metres.
- Zinc plated finish.
Specifications
• Code: 03.01.04.0023
• Safe Working Load (SWL) 4500kg Max.
• Unit Weight 190kg
• Load Centre 770mm
• Pocket Size 185 x 68mm
• Pocket Centres 322 mm
• Horizontal C of G 1080mm
• Vertical C of G 345mm
• Dimension(LWH)/mm：2097×522×646
|

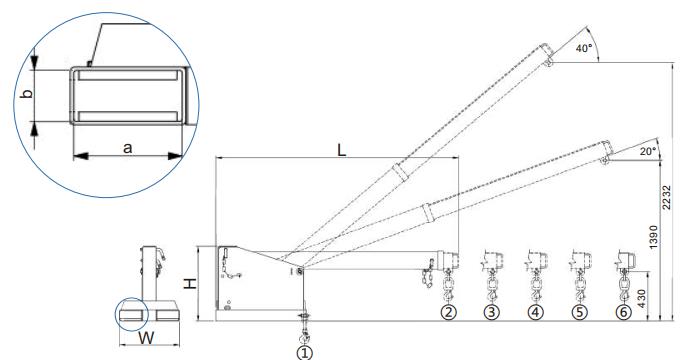

Position
|
1 | 2 | 3 | 4 | 5 | 6 |
|
Extension/mm
|
770 | 2010 | 2390 | 2770 | 3150 | 3530 |
|
SWL/kg
|
4500 | 1100 | 630 | 470 | 300 | 150 |
