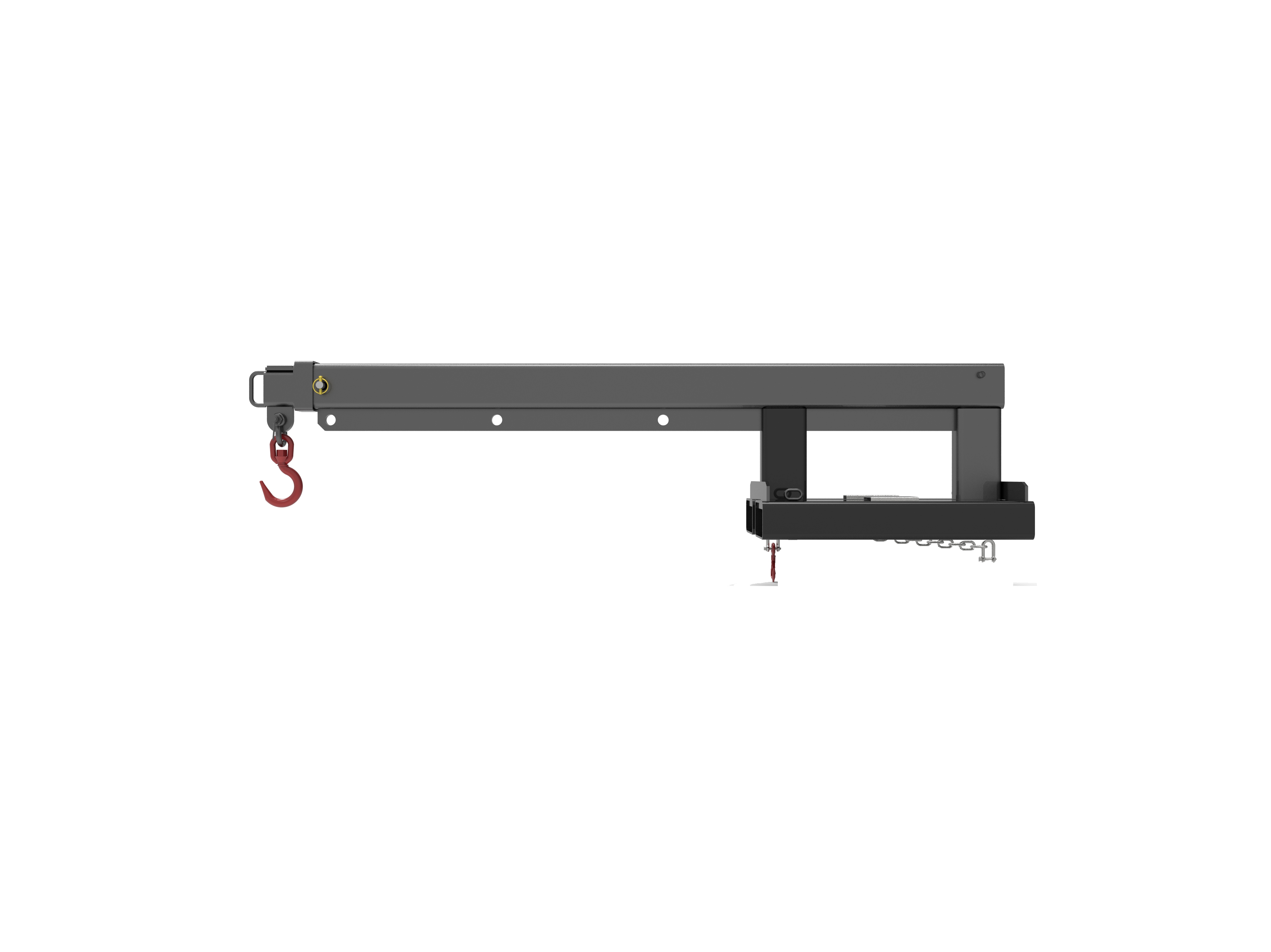

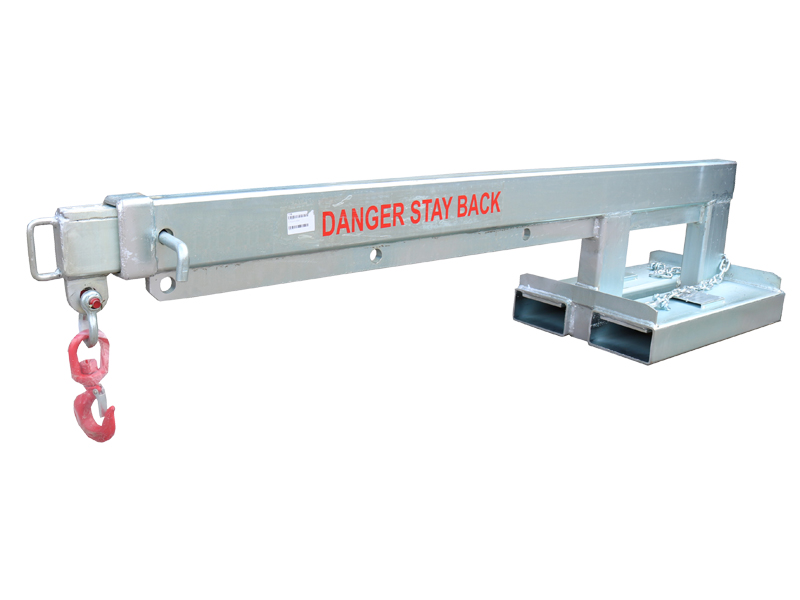

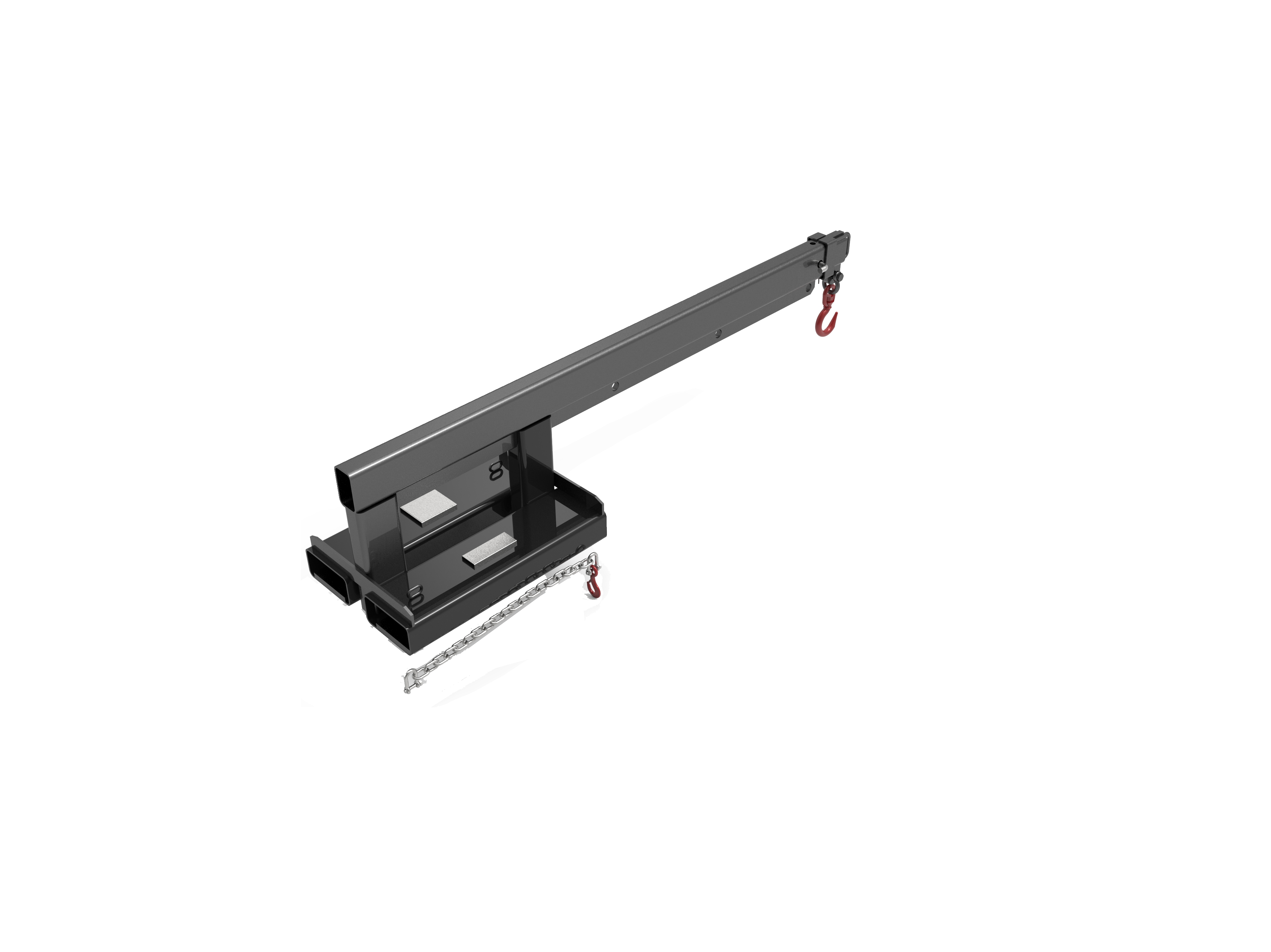

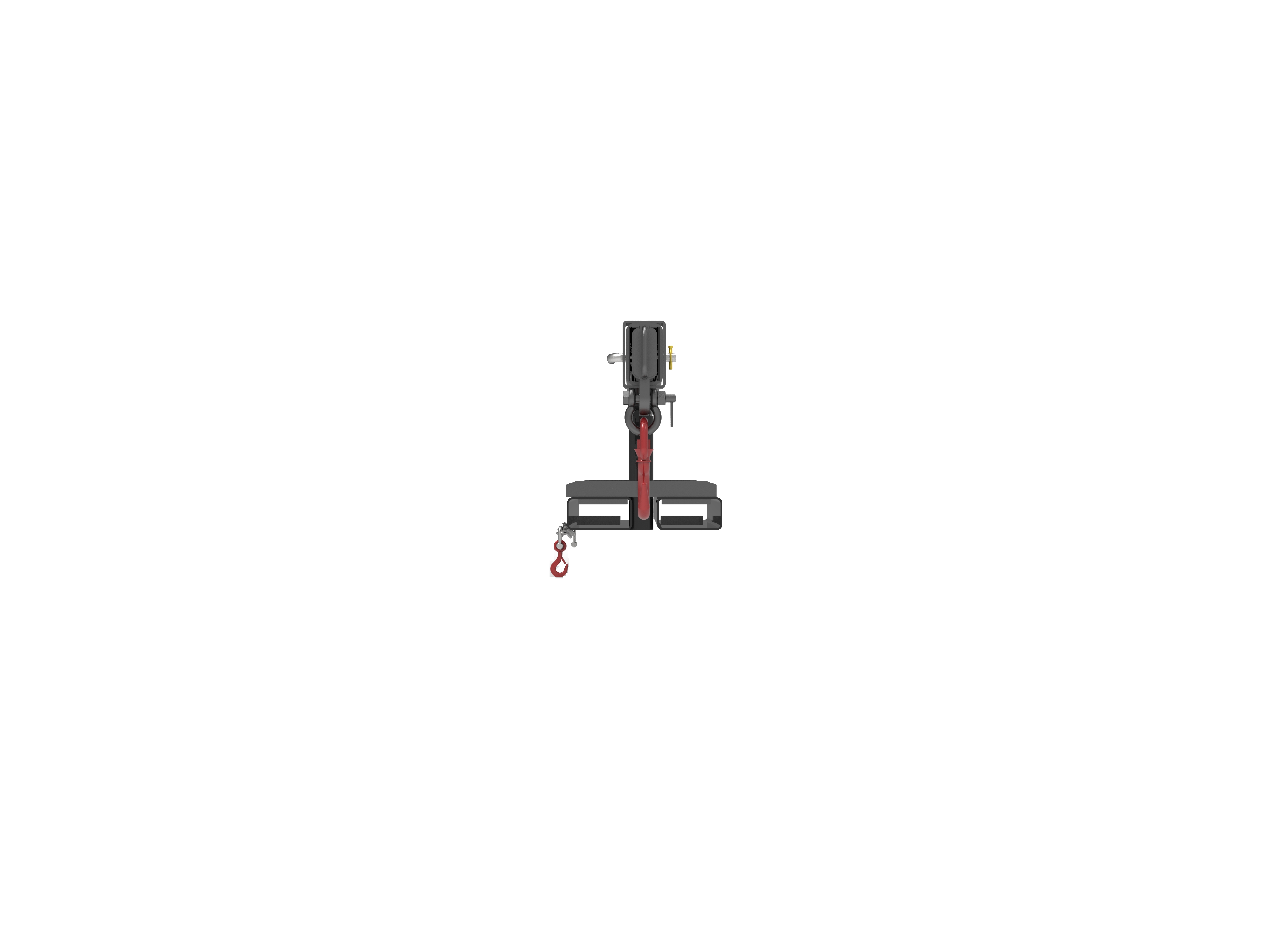

The type F-FJL2.5 Fixed Long Jib has a 3.5 metre extension which allows for long reach lifts.
Type:
F-FJL2.5Products Code:
03.01.04.0010Surface Treatment:
Galvanizing or As RequestThe type F-FJL2.5 Fixed Long Jib has a 3.5 metre extension which allows for long reach lifts.
- The overall jib length when retracted is 2.1 metres.
- Galvanized finish.
Specifications
• Code: 03.01.04.0010
• Safe Working Load (SWL) 2500kg Max.
• Unit Weight 135kg
• Load Centre 950mm

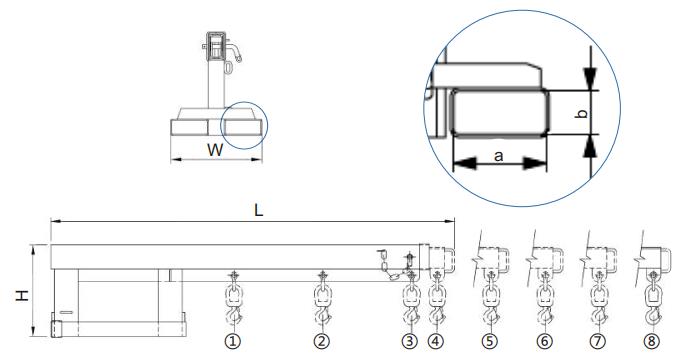

• Pocket Size(ab)/mm: 185 x 65
• Pocket Centres 275 mm
• Horizontal C of G 1160mm
• Vertical C of G 185mm
• Dimension(LWH)/mm:2100×440×475
Position
|
1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
Extension/mm
|
950 | 1410 | 1870 | 2000 | 2380 | 2760 | 3140 | 3520 |
SWL/kg
|
2500 | 2500 | 1900 | 1650 | 1250 | 650 | 380 | 240 |
