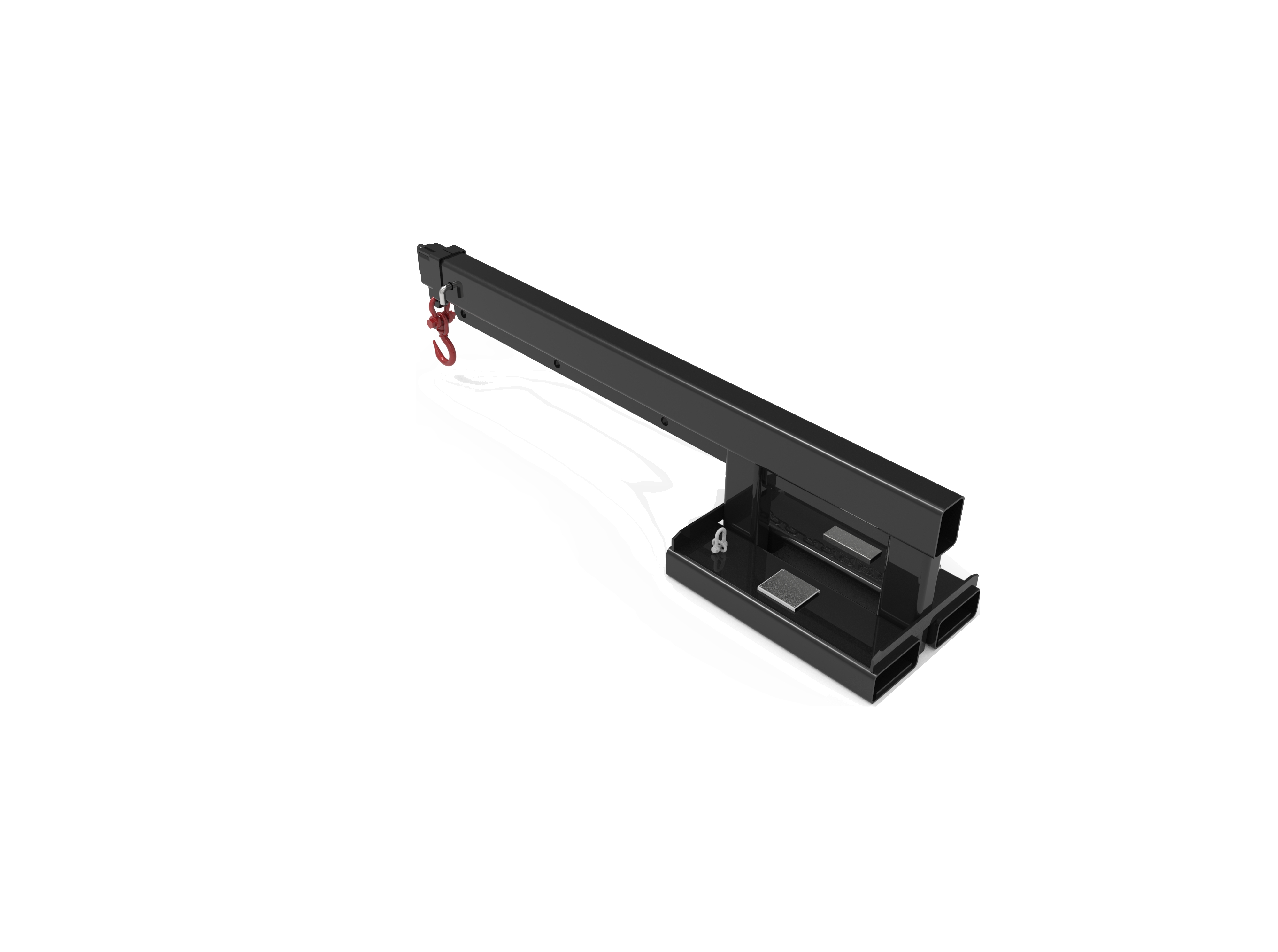

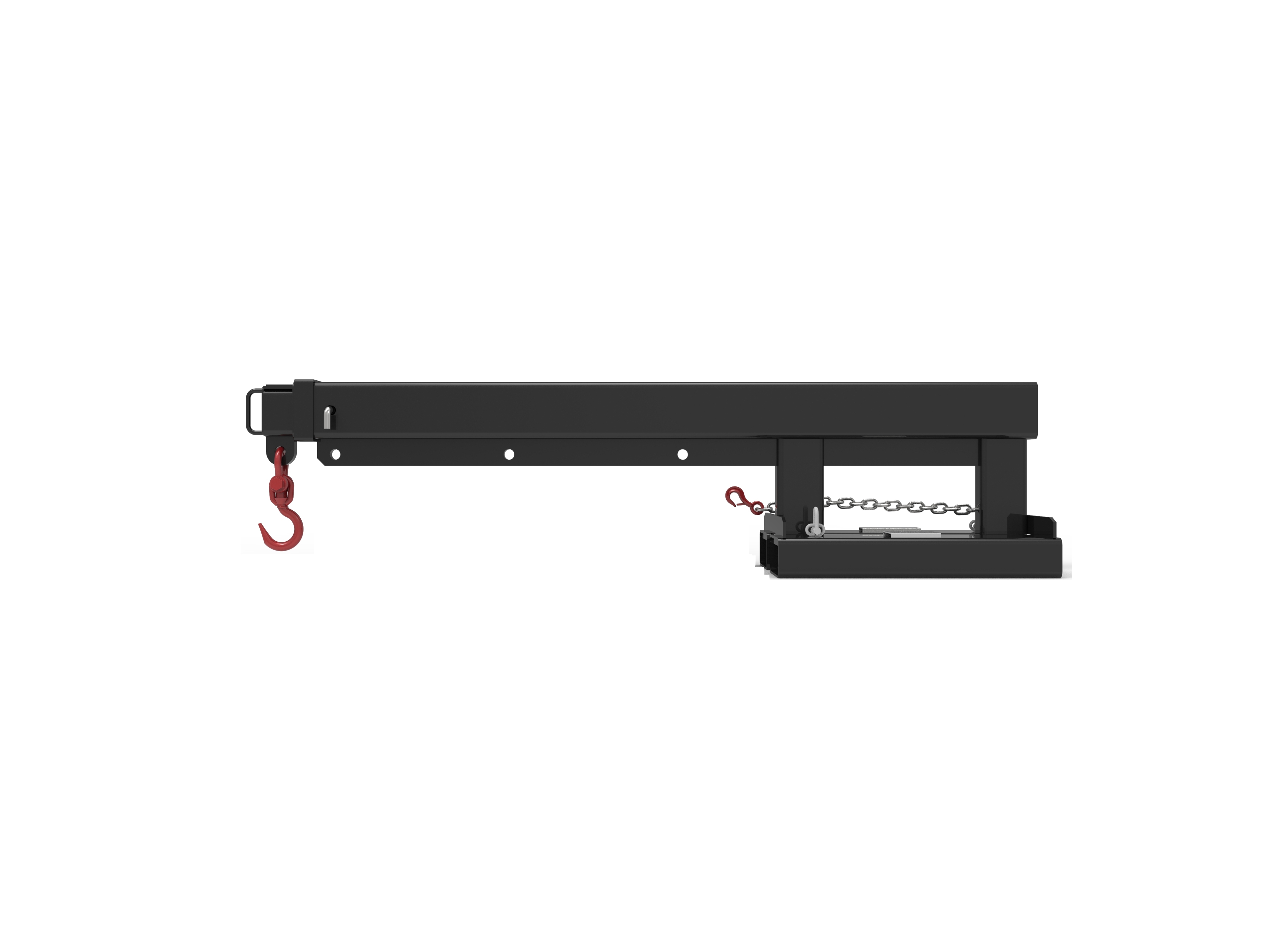

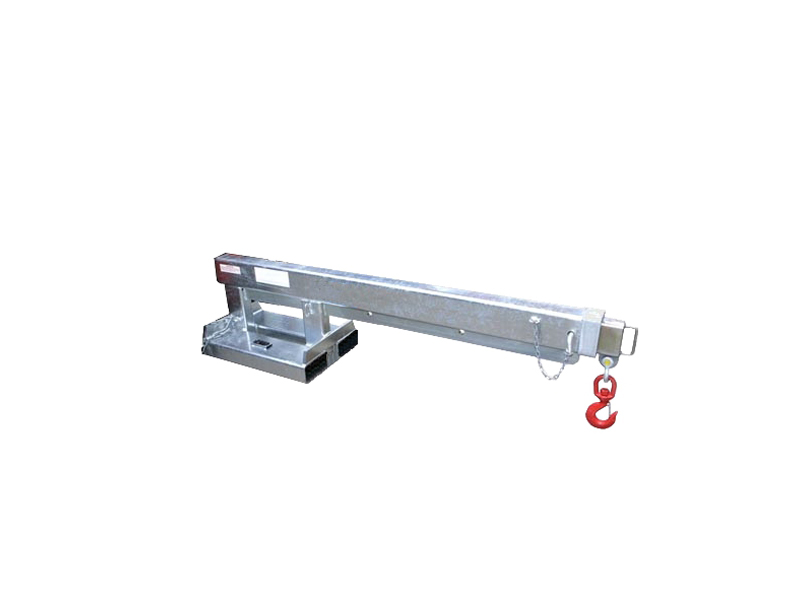

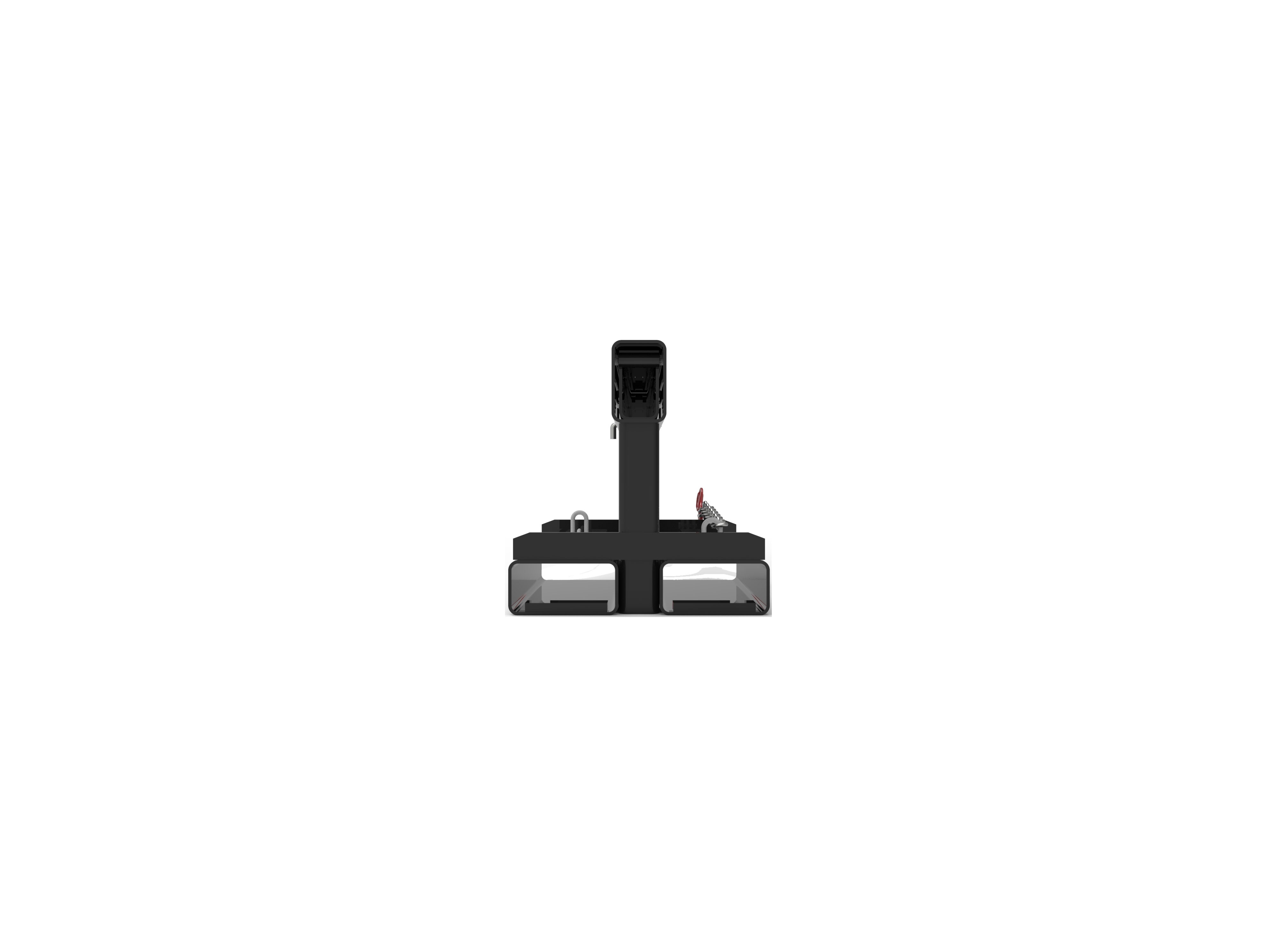

Type F-FJL5 Jib has a 3.5 metre reach when fully extended, an overall jib length when retracted of 2.1 metres.
Type:
F-FJL5Products Code:
03.01.04.0043Surface Treatment:
Galvanizing or As RequestType F-FJL5 Jib has a 3.5 metre reach when fully extended, an overall jib length when retracted of 2.1 metres.
Zinc plated finish.
Specifications
• Code: 03.01.04.0043
• Safe Working Load (SWL) 4750kg Max.
• Unit Weight 170kg
• Load Centre 935mm
• Pocket Size 185 x 75mm
• Pocket Centres 275 mm
• Horizontal C of G 1210mm
• Vertical C of G 200mm
• Dimension(LWH)/mm:2100×475×500
Position
|
1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
Extension/mm
|
935 | 1395 | 1855 | 2000 | 2380 | 2760 | 3140 | 3520 |
SWL/kg
|
4750 | 4275 | 3800 | 3300 | 2500 | 1300 | 760 | 480 |
