Forklift Waste & Storage Tipping Bins for Heavy Waste F-NTU

Forklift Waste & Storage Tipping Bins for Heavy Waste F-NTU

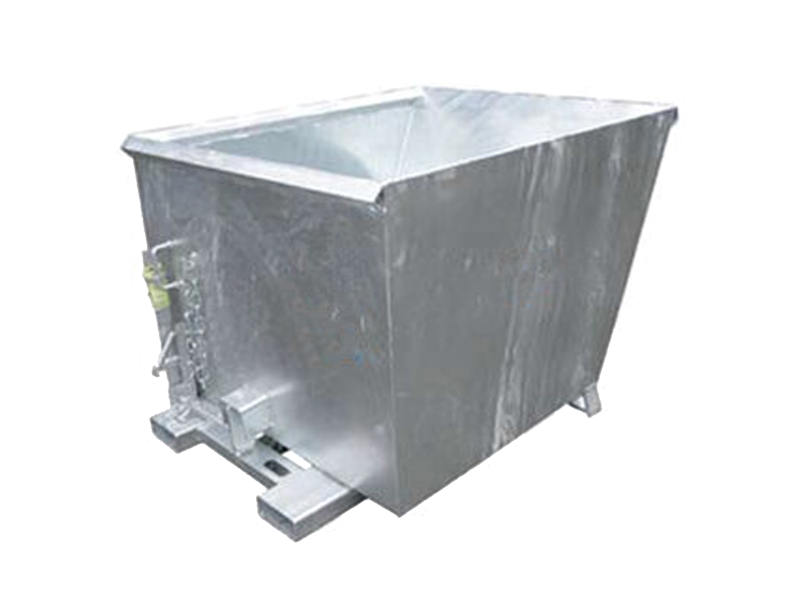

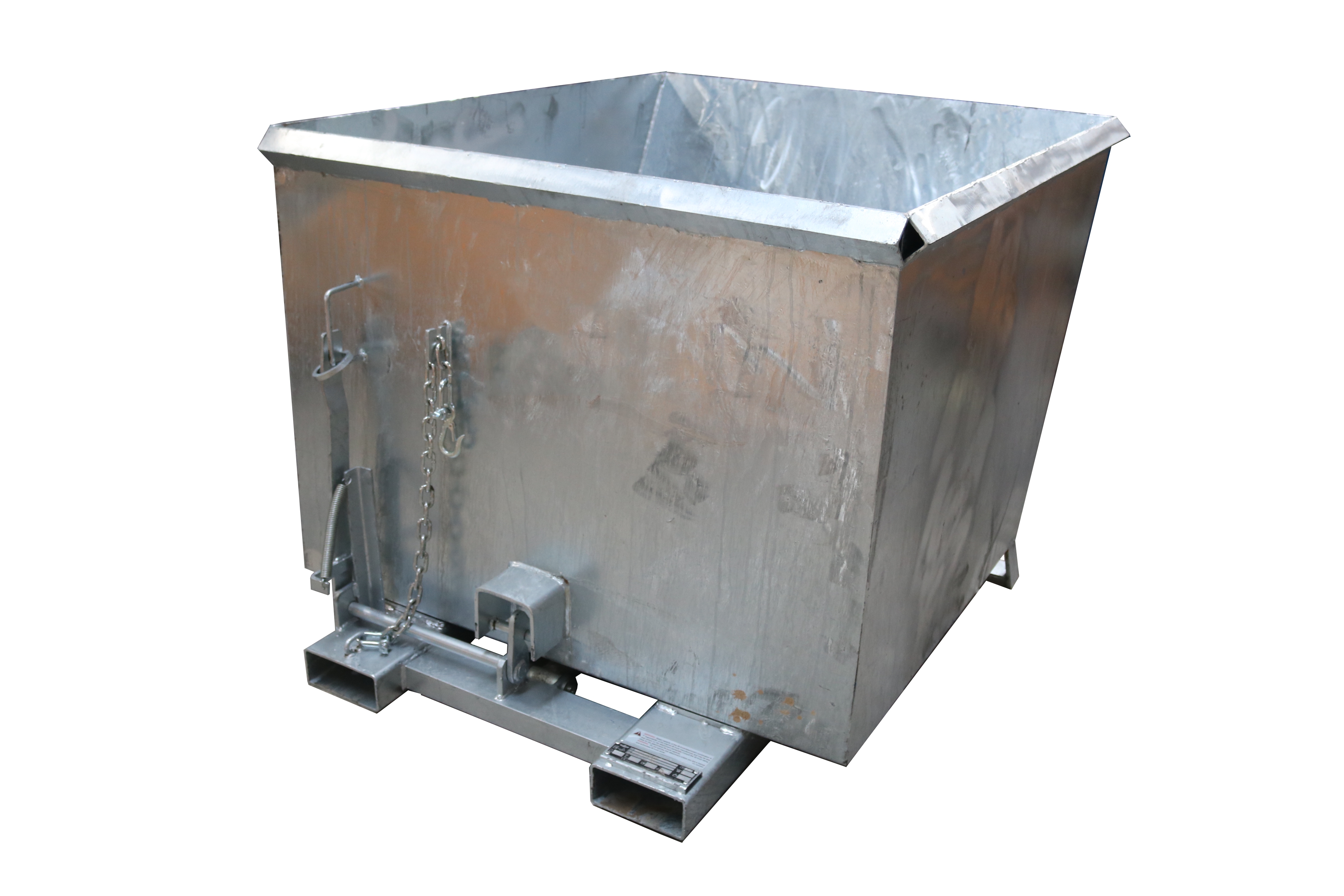

F-NTU heavy duty tip up bin is manufactured from 3mm plate and is fitted with fully reinforced edges.

  • Type:

    F-NTU
  • Surface Treatment:

    Galvanizing or As Request
  • Product Details

F-NTU heavy duty tip up bin is manufactured from 3mm plate and is fitted with fully reinforced edges.

- These bins are ideally suited to heavy waste including metal, timber and building site rubble.

- The release mechanism is activated by the forklift operator pulling the pull chord from the driver's seat.

- The custom built shock absorber prevents impact forces being transmitted to the forklift during emptying.

- All type F-NTU bins have a Safe Working Load of 1000kg and range in sizes from 0.7-2.0 cubic metre capacities.

- These bins are available in either painted or galvanised finish.


Specifications

• Pocket size 165 x 65mm

• Pocket Centres – 635mm (NTU6 – 405mm)

• Safe Working Load 1000kg

• Unit Weight – refer Table

• Volume Capacity – refer Table

• HCG 800mm

• VCG 400mm

Type
Volume/m³
SWL/kg
Pocket Size(ab)/mm
Dimension(LWH)/mm
Weight/kg
F-NTU6
0.70 1000
165×65
1600×600×900
190
F-NTU9
1.00 1000
165×65
1600×900×900
210
F-NTU12
1.35 1000
165×65
1600×1200×900
225
F-NTU15
1.70 1000
165×65
1600×1500×900
255
F-NTU18
2.00 1000
165×65
1600×1800×900
280
