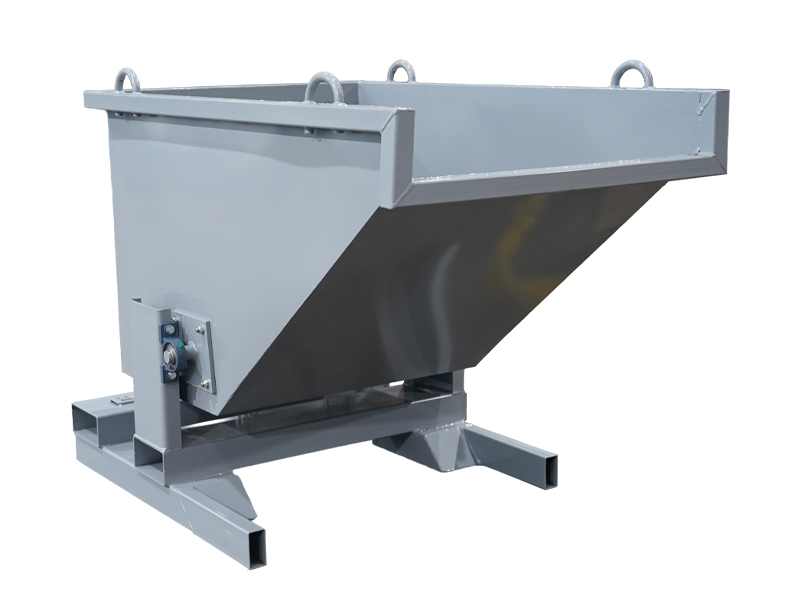

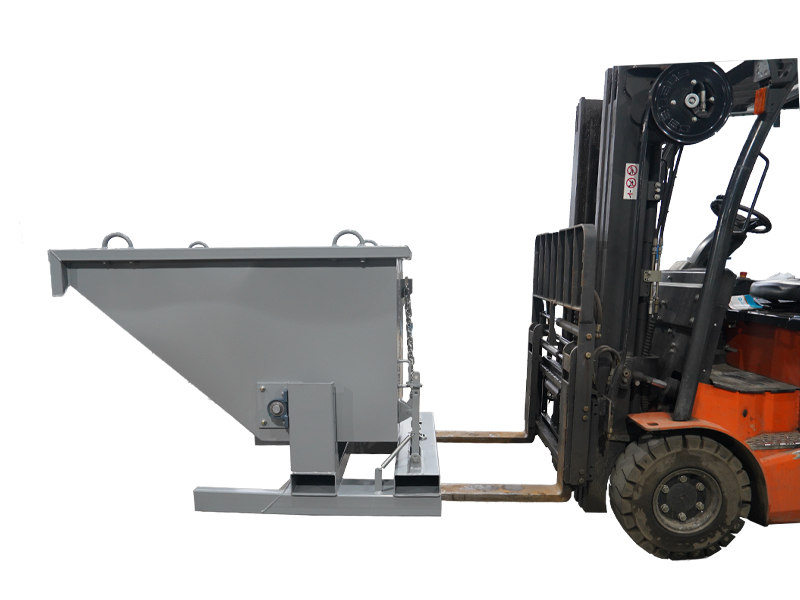

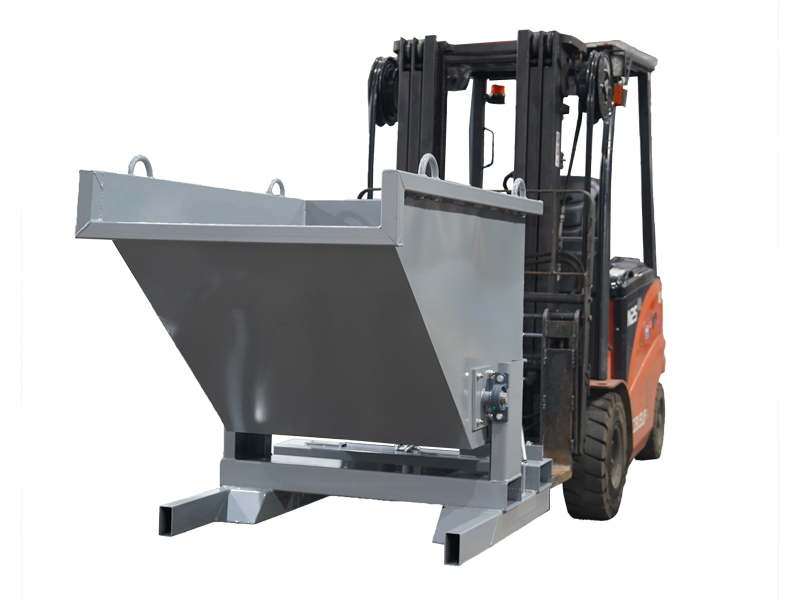

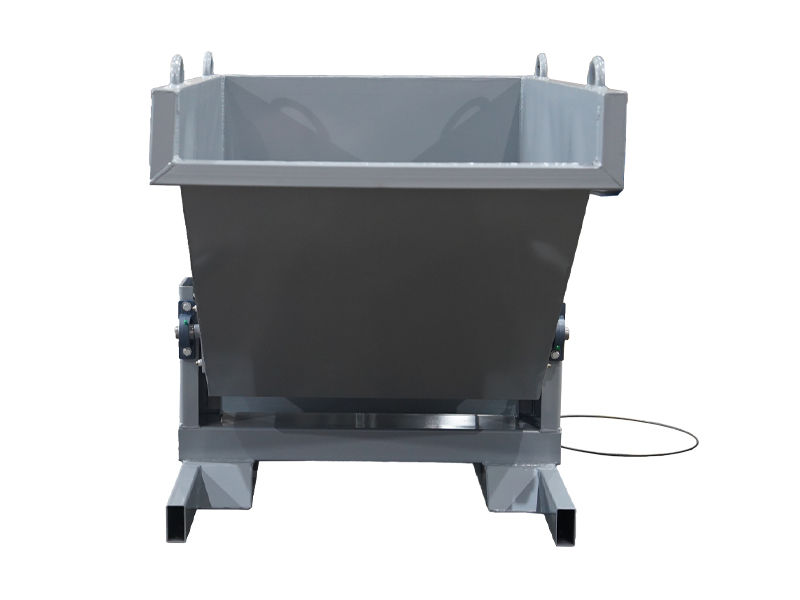

Tipping Bin Attachment, Roll Over Forklift Bin F-ROB9

Tipping Bin Attachment, Roll Over Forklift Bin F-ROB9

F-ROB9 Roll Over Bin is designed for a smooth tipping action with minimal impact during emptying.

  • Type:

    F-ROB9
  • Products Code:

    03.01.03.0035
  • Surface Treatment:

    Galvanizing or As Request
  • Product Details

F-ROB9 Roll Over Bin is designed for a smooth tipping action with minimal impact during emptying.

- Side bearings prevent the bin being dislodged during tipping as is common with the roll over style bins.

- The cut away front design makes this bin ideal for tipping liquids. The release mechanism is activated by the

- Forklift operator pulling the pull chord from the driver's seat.

- Four-way fork pocket allows entry for sideways tipping action.

- These bins are standard in H.D. Galvanised finish.


Specifications

· Code: 03.01.03.0035

· Pocket size 185 x 65mm

· Pocket Centres - 850mm

· Working Load Limit (WLL) - 1500kg

· Unit Weight - 235kg

· Volume Capacity - 0.77m3

· HCG 605mm

· VCG 415mm

Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

related products

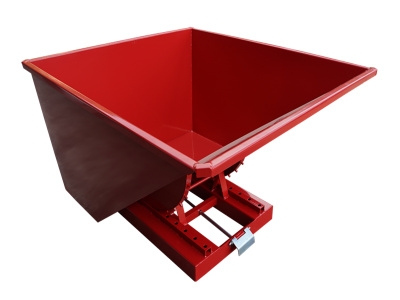

Heavy Duty Steel Self-Dumping Hoppers
