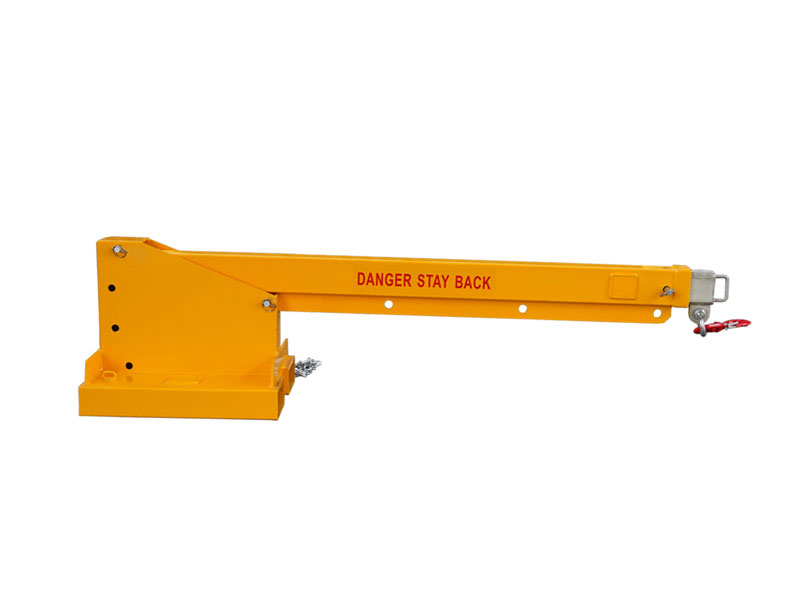

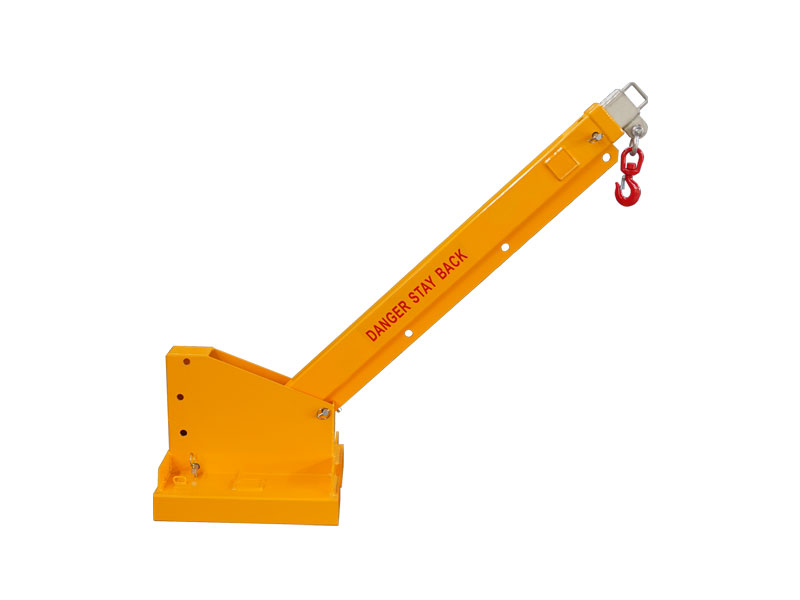

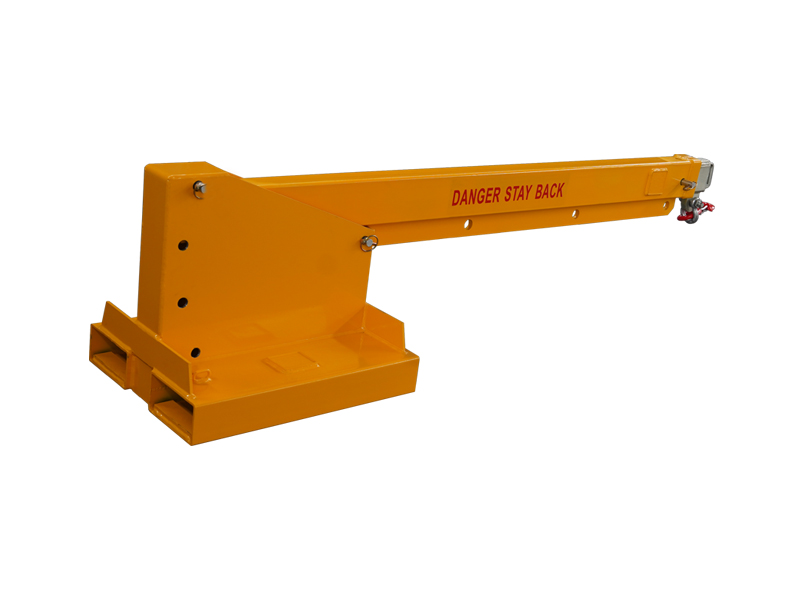

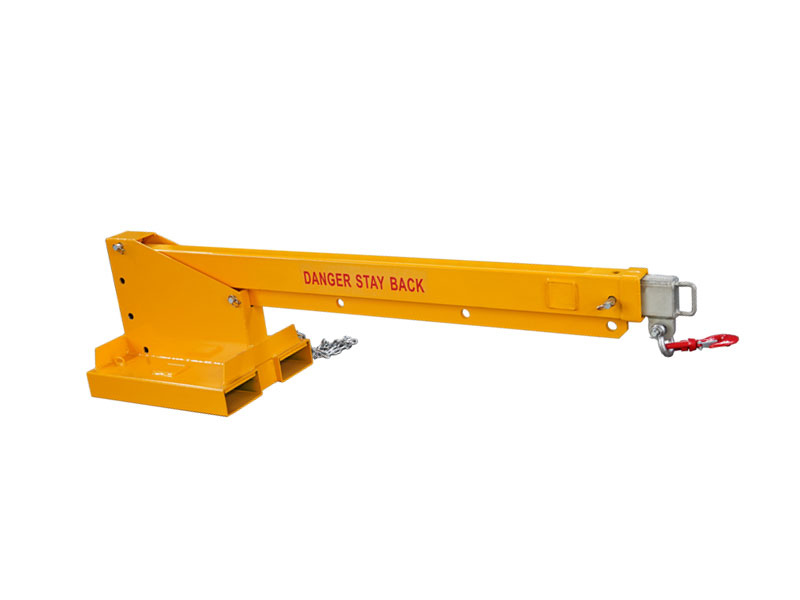

Lifting 2.5T Extendable Forklift Jib F-TJL2.5

Lifting 2.5T Extendable Forklift Jib F-TJL2.5

Type F-TJL2.5 is extremely versatile, 8 hook positions available, as well as 3 different angle positions.

  • Type:

    F-TJL2.5
  • Products Code:

    03.01.04.0024
  • Surface Treatment:

    Galvanizing or As Request
  • Product Details

Type F-TJL2.5 is extremely versatile, 8 hook positions available, as well as 3 different angle positions.

- With a maximum reach of 3.58 metres and an additional height of 2.4 metres when fully extended,

- Zinc plated finish.


Specifications

• Code: 03.01.04.0024

• Safe Working Load (SWL) 2500kg Max.

• Unit Weight 180kg

• Load Centre 1005mm

• Pocket Size 165 x 65mm

• Pocket Centres 337 mm

• Horizontal C of G 1010mm

• Vertical C of G 225mm

• Dimension(LWH)/mm: 2150×526×556

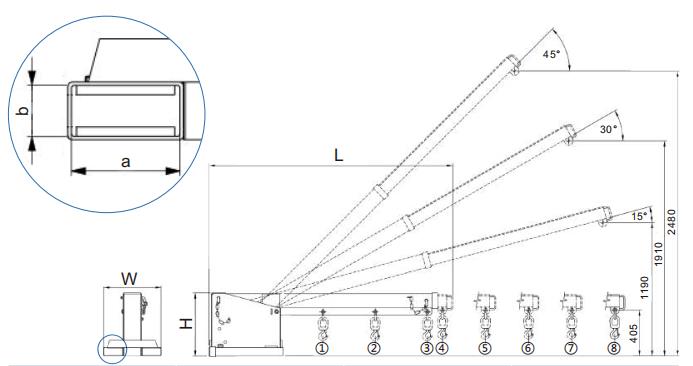

Position
1 2 3 4 5 6 7 8
Extension/mm
1005 1465 1925 2060 2440 2820 3200 3580
SWL/kg
2500 2500 1900 1650 1250 650 380 240
