Hydraulic Forward Bulk Bin Tipper WLL 1000kg F-FBT-SH

Hydraulic Forward Bulk Bin Tipper WLL 1000kg F-FBT-SH

This Bin Tipper is ideal for handling and emptying bins in agricultural and manufacturing industries.

  • Type:

    F-FBT-SH
  • Products Code:

    03.01.18.0006
  • Surface Treatment:

    Grey Painting or As Request
  • Product Details

This Bin Tipper is ideal for handling and emptying bins in agricultural and manufacturing industries.

- This slip on attachment requires only one hydraulic function.

- A purpose built hydraulic sequencing valve eliminates the potential to drop the bin as rotation will not commence until the bin is secured into position, while the gentle action of the clamp arms prevents damage to the bins.

- The standard FBT-SH will suit bins up to 1200mm square, with a height range of 675 to 925mm.

- Non standard size and capacity attachments can be custom manufactured.

- Enamel paint finish.


Specifications

• Code: 03.01.18.0006

• Safe Working Load (SWL) 1000kg

• Unit Weight 290kg

• Load Centre 880mm

• Lost Load 300mm

• Pocket Size 155 x 55mm

• Pocket Centres 540mm

• Horizontal C of G 600mm

• Vertical C of G 75mm

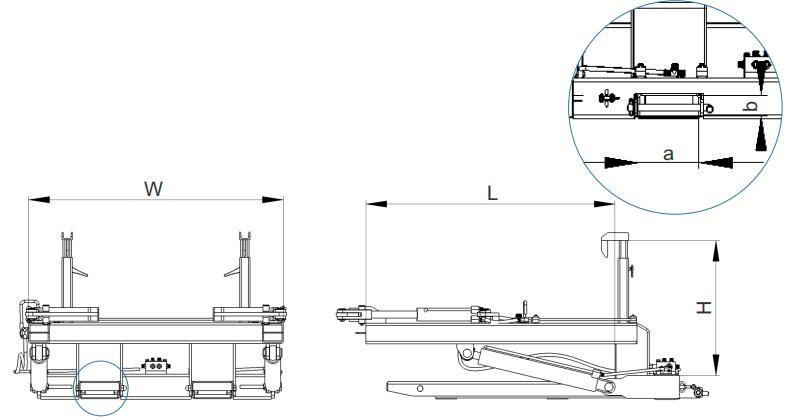

• Dimension(L*W*H)/mm:1200×1220×60
