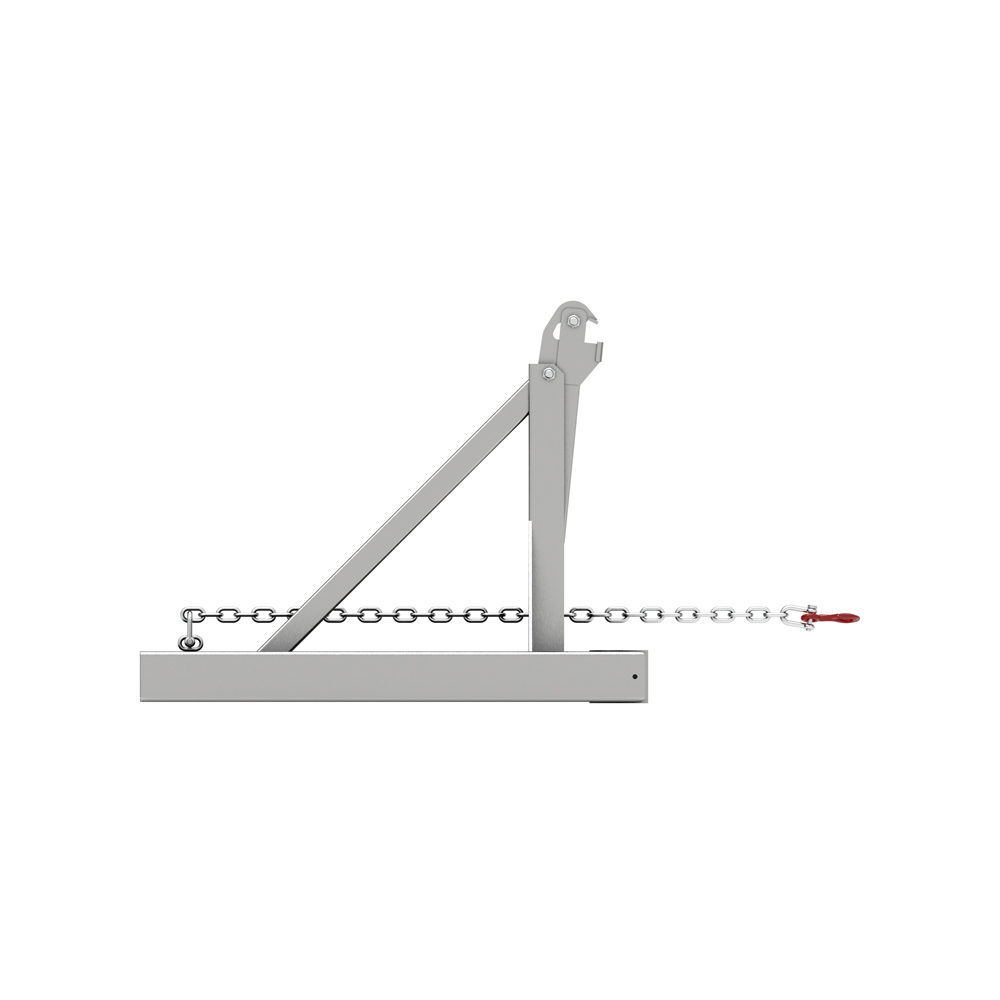

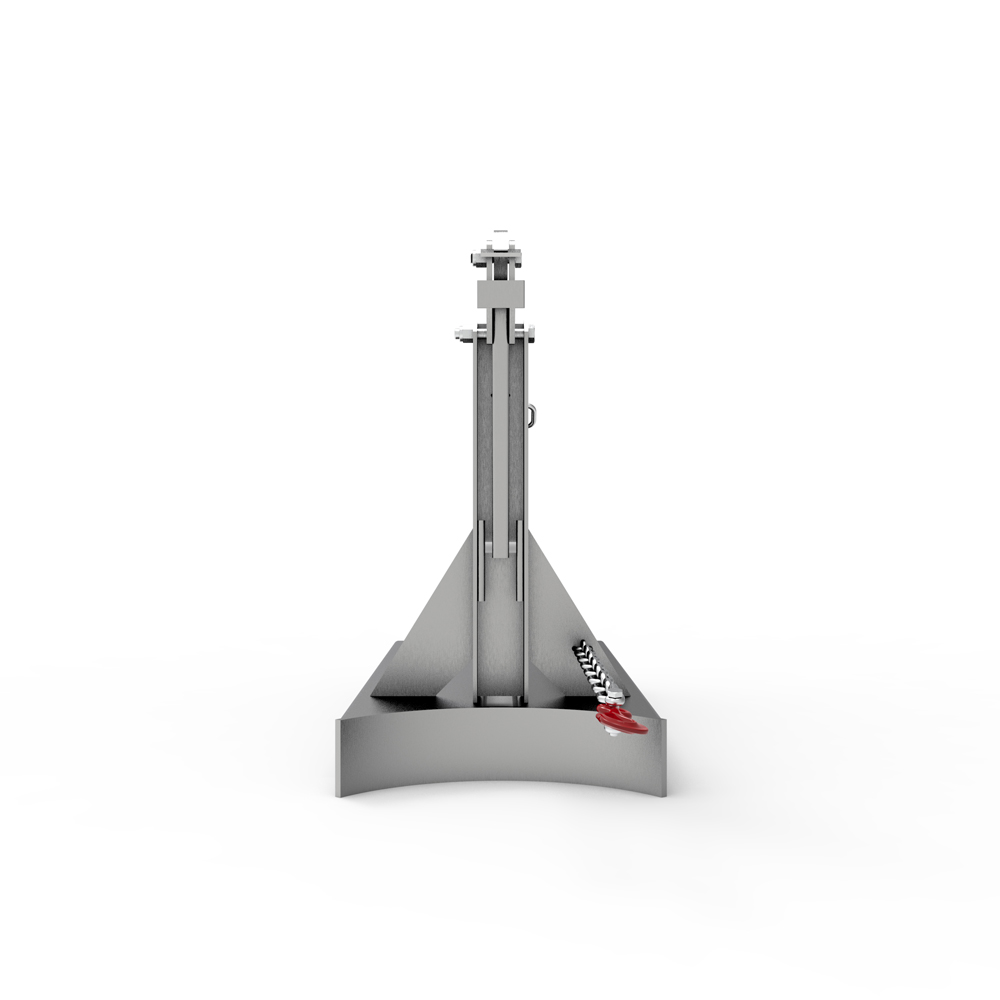

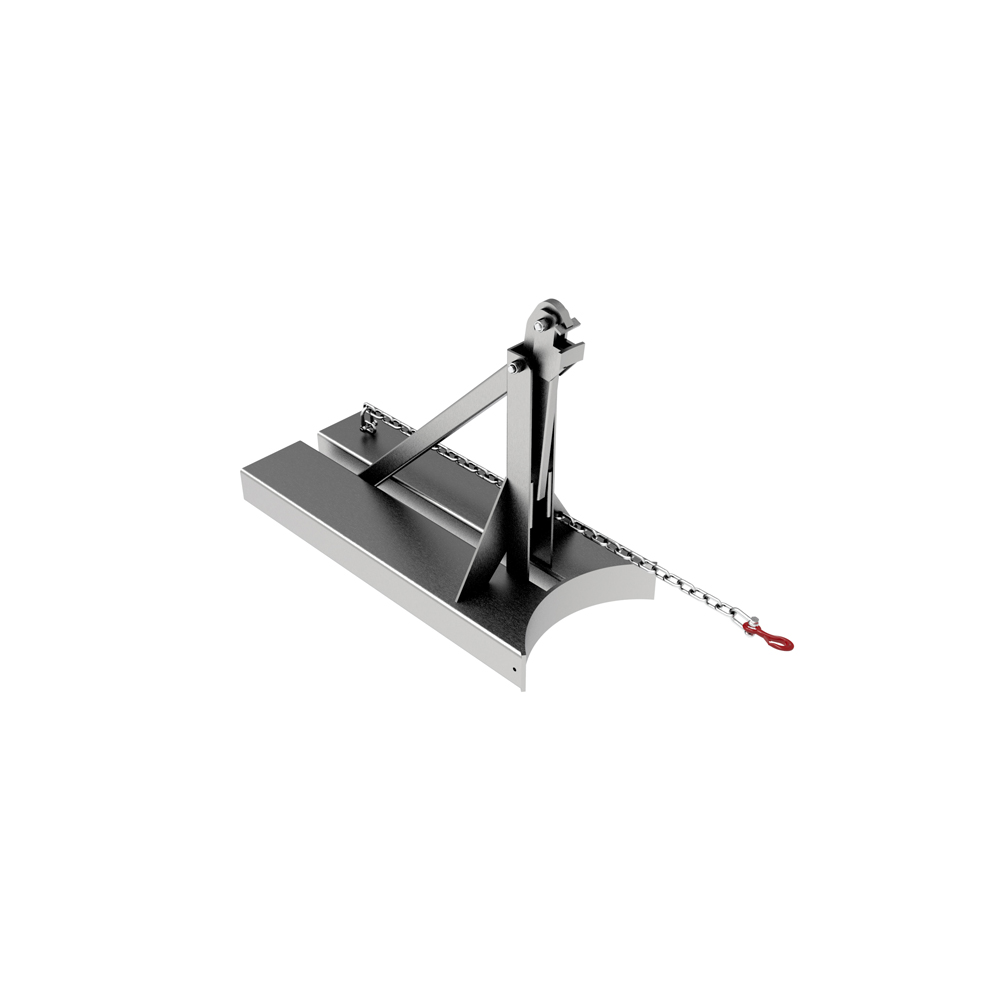

Beak Type Forklift Drum Lifter Attachment F-BGN1

Beak Type Forklift Drum Lifter Attachment F-BGN1

Parrot Beak Drum Lifters make drum handling easy, suitable for both steel and plastic 210 litre drums.

  • Type:

    F-BGN1
  • Products Code:

    03.01.24.0003
  • Surface Treatment:

    Galvanizing or As Request
  • Product Details

Parrot Beak Drum Lifters make drum handling easy, suitable for both steel and plastic 210 litre drums.

- A good field of vision allows the operator to continually observe the drum being handled.

- The operator does not leave the Driver’s seat.

- The unique beak design provides a high clamping force, even when travelling over uneven ground.

- With few moving parts this attachment requires no down time for repairs.

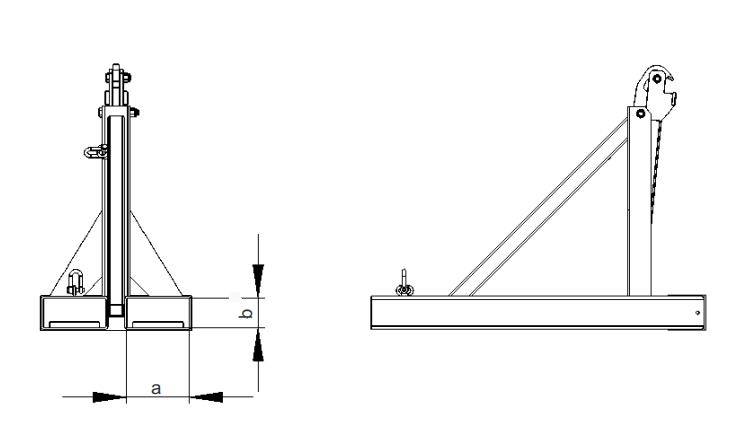

Specifications

• Code: 03.01.24.0003

• Pocket Size 185 x 60mm

• Pocket Centres 250mm

• Safe Working Load (SWL) 1000kg

• Unit Weight 74kg

• Load Centre 1210mm

• HCG 560mm

• VCG 130mm

• Zinc Plated Finish
