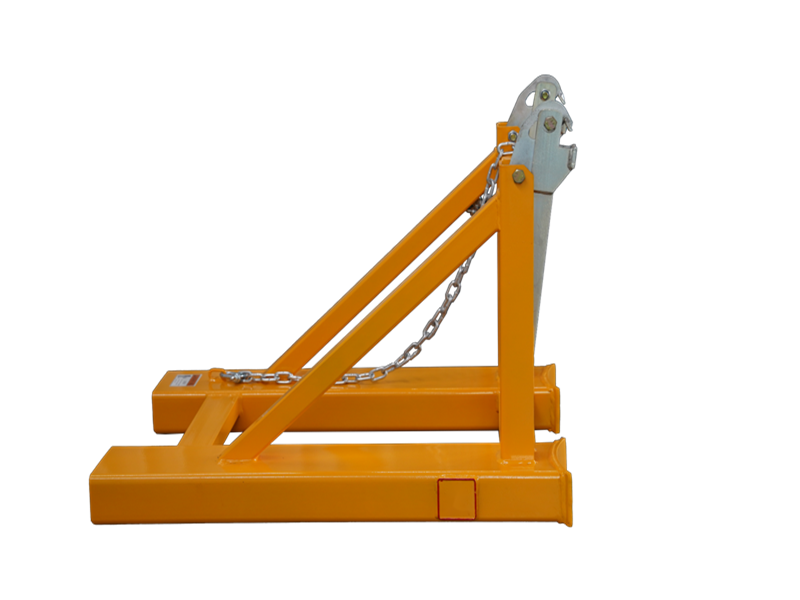

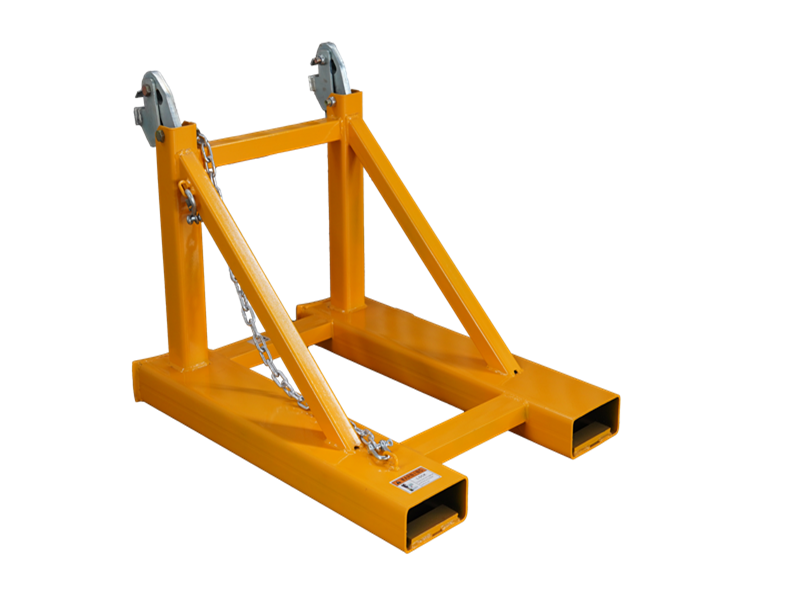

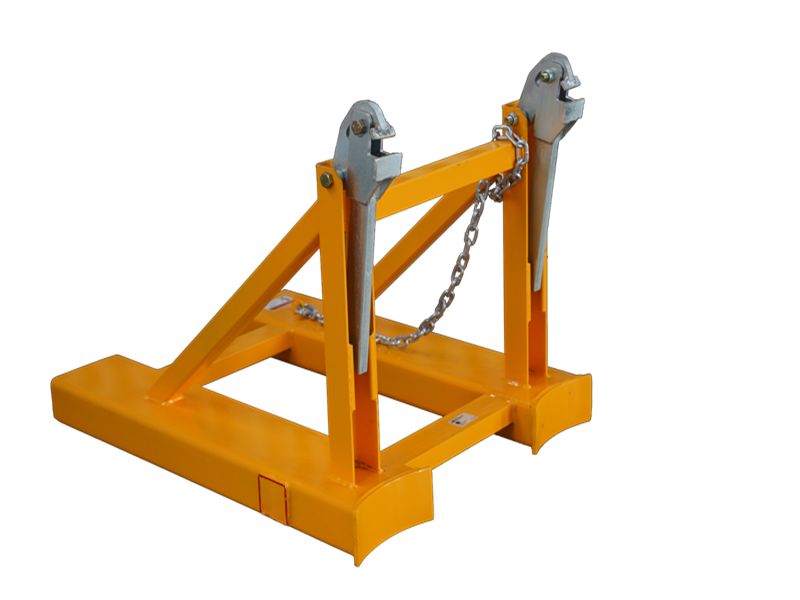

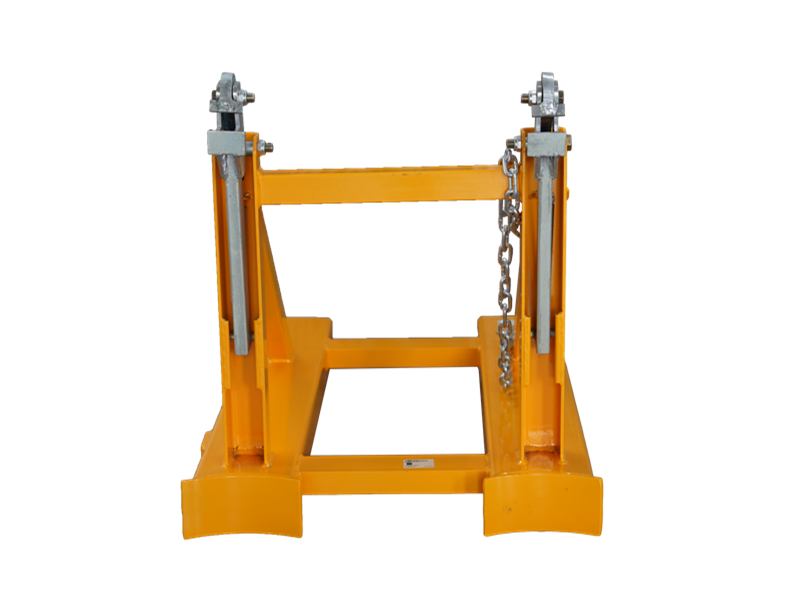

Drum Handling Equipment, Beak Drum Grip Lifter F-BGN2

Drum Handling Equipment, Beak Drum Grip Lifter F-BGN2

This F-BGN2 Beak Drum Lifters make drum handling easy, can safely lift 2 drums at a time.

  • Type:

    F-BGN2
  • Products Code:

    03.01.24.0004
  • Surface Treatment:

    Galvanizing or As Request
  • Product Details

This F-BGN2 Beak Drum Lifters make drum handling easy, can safely lift 2 drums at a time.

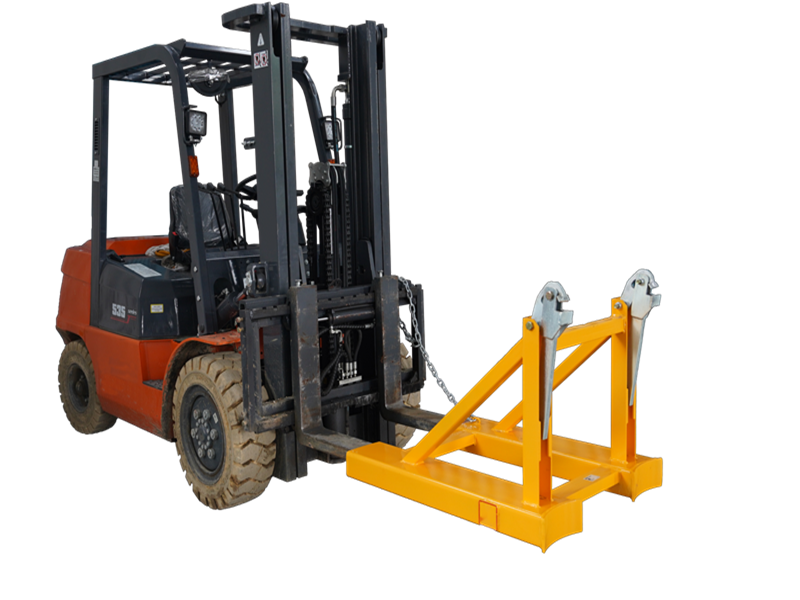

- A good field of vision allows the operator to continually observe the drums being handled.

- The operator does not leave the drivers seat.

- The unique beak design provides a high clamping force, even when travelling over uneven ground.

- Suitable for standard 205 litre steel and plastic drums,

- Available as a single or a two drum unit.

- A contoured rest acts at a point low enough down the drum to prevent damage to the drum.

- Zinc plated finish.

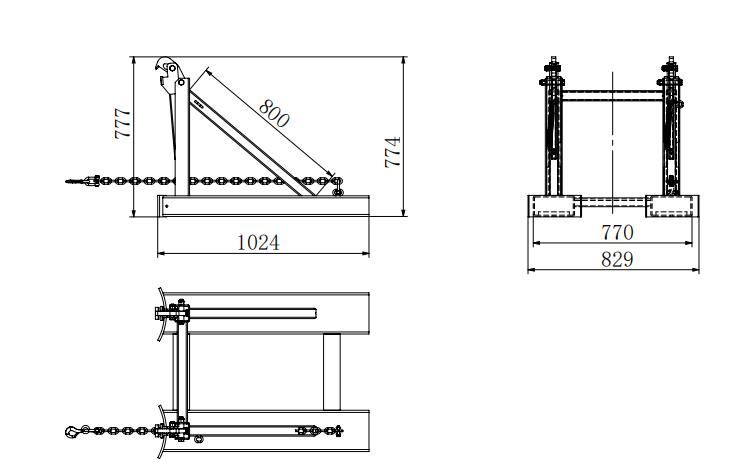

Specifications

• Code: 03.01.24.0004

• Pocket Size 185 x 60mm

• Pocket Centres 600mm

• Safe Working Load (SWL) 1500kg

• Unit Weight 95kg

• Load Centre 1250mm
