Hydraulic Drum Handling Lifter, Lifter and Rotater F-DC-GR2

Hydraulic Drum Handling Lifter, Lifter and Rotater F-DC-GR2

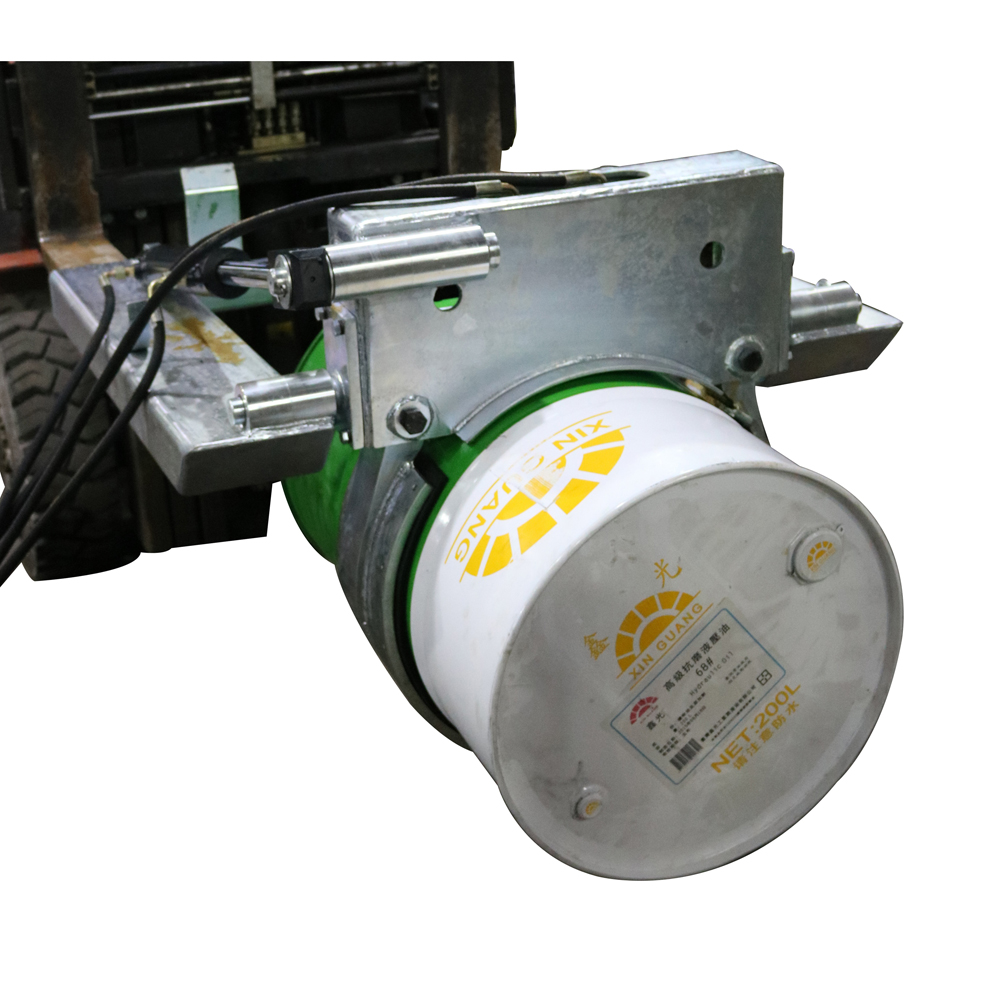

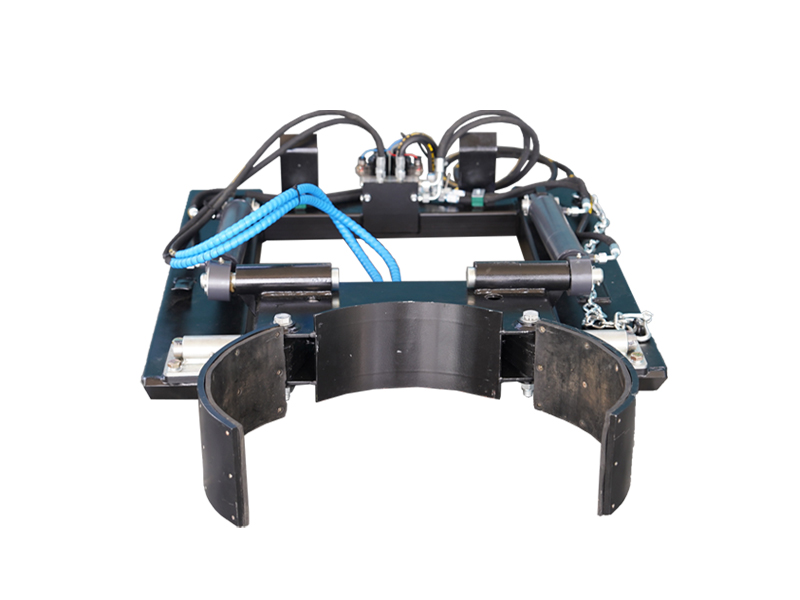

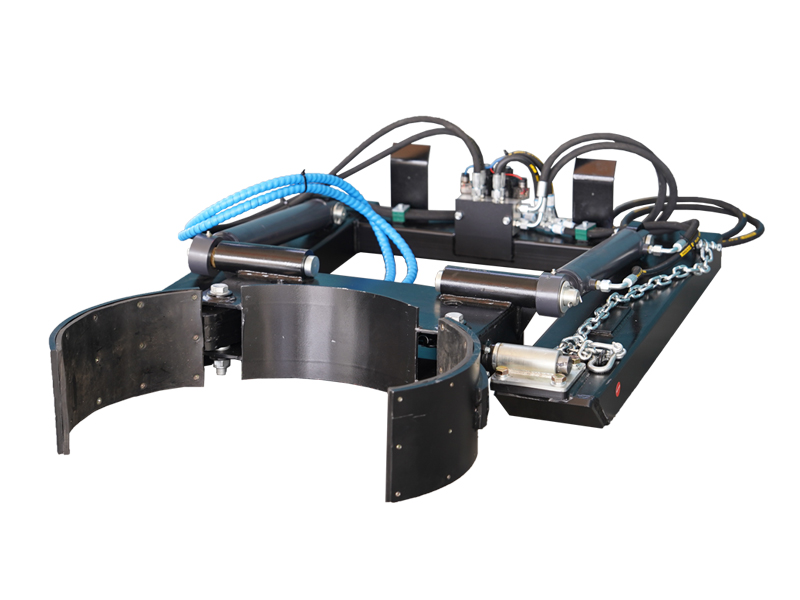

The type F-DC-GR2 Hydraulic Drum Rotator is a heavy duty 205 litre Drum Lifter with hydraulic grab/rotation ability.


  • Type:

    F-DC-GR2
  • Surface Treatment:

    Galvanizing or As Request
  • Product Details

The type F-DC-GR2 Hydraulic Drum Rotator is a heavy duty 205 litre Drum Lifter with hydraulic grab/rotation ability.

- With 1 tonne lift capacity, this attachment is ideal for the recycle industry and for mining applications.

- This lifter is able to pick a single drum from a pallet of 4 without disturbing the other 3 drums.

- This unit is fitted with quick connect couplings for connection to the 3rd and 4th Forklift hydraulic valves.

- The standard finish is galvanized.

Specifications

- Safe Working Load (SWL) 1000kg

- Load Centre/mm: 1330

- Load Centre 1307.5mm

- Pocket Size 185 x 65mm

- Pocket Centres 874mm

- Horizontal C of G 700mm

Type
Cylinder No.
SWL/kg
Pocket Centres/mm
Pocket Size (ab)/mm
Load Centre/mm
Weight/kg
F-DC-R2
2 1000 874
185×65
1330 202
F-DC-GR2
3 1000 874
185×65
1330 226
