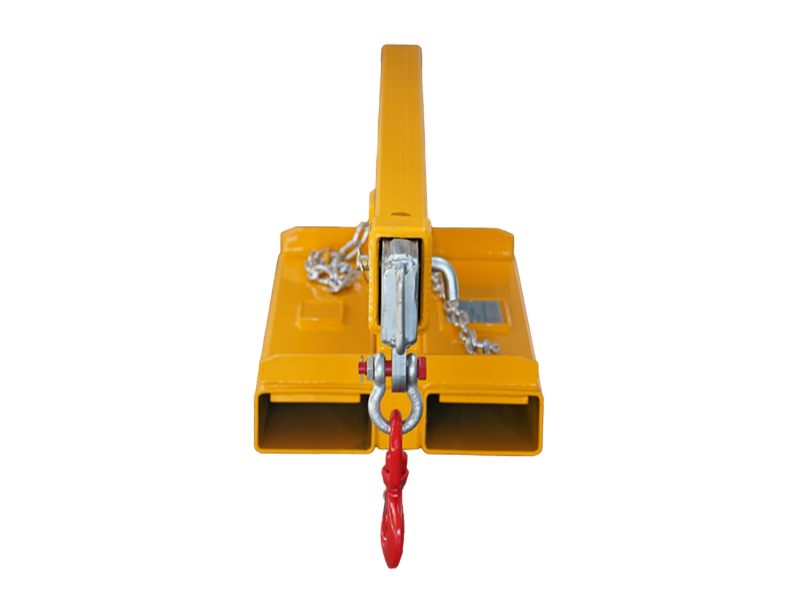

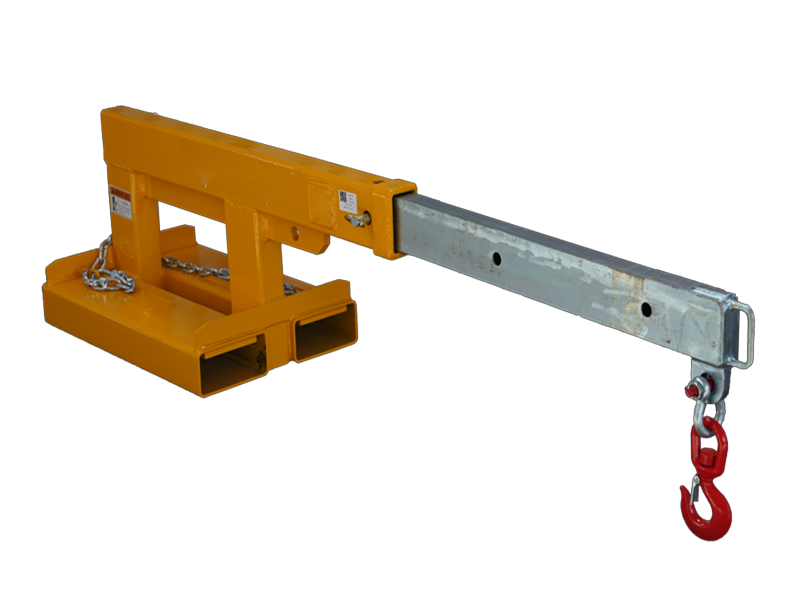

Jib allows for additional lifting height with the extension beam being raised above the fork pockets.
Type:
F-FJS2.5Products Code:
03.01.04.0006Surface Treatment:
Galvanizing or As RequestJib allows for additional lifting height with the extension beam being raised above the fork pockets.
- The overall length when retracted is 1.3 metres, and when extended is 2 metres.
- Zinc plated finish.
Specifications
• Code: 03.01.04.0006
• Safe Working Load (SWL) 2500kg Max.
• Unit Weight 100kg
• Load Centre 790mm
• Pocket Size 185 x 65mm
• Pocket Centres 275 mm
• Horizontal C of G 630mm
• Vertical C of G 135mm

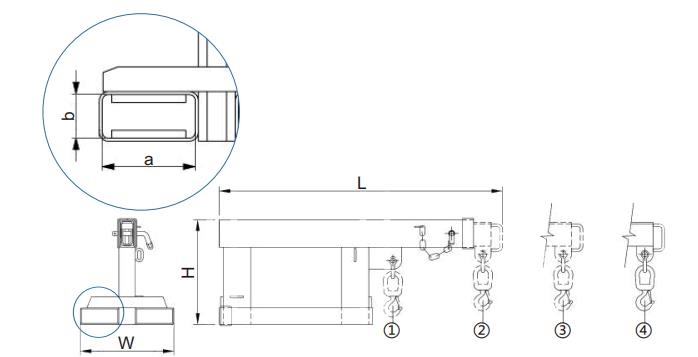

• Dimension(LWH)/mm: 1300×440×475
|
Position
|
1 | 2 | 3 | 4 |
|
Extension/mm
|
790 | 1200 | 1580 | 1960 |
|
SWL/kg
|
2500 | 1200 | 900 | 750 |
