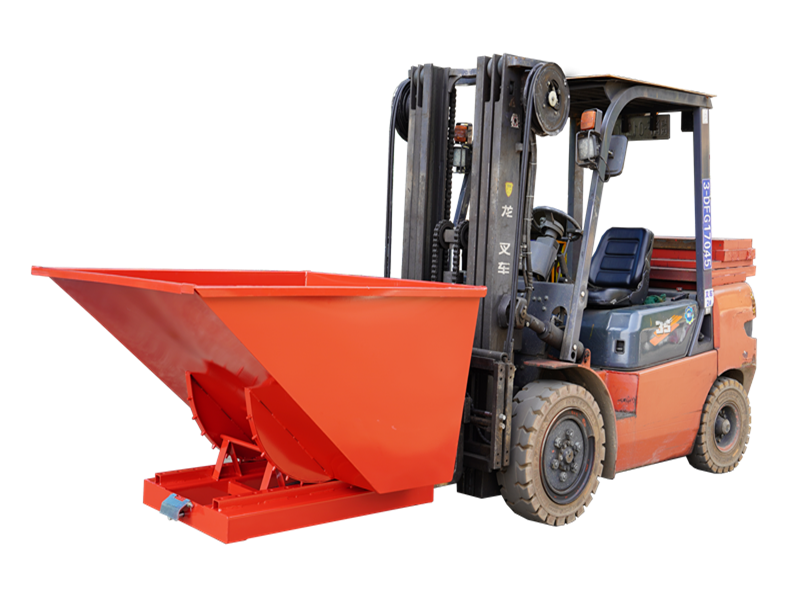

Heavy Duty Steel Self-Dumping Hoppers, Tipping Bin F-TS

Heavy Duty Steel Self-Dumping Hoppers, Tipping Bin F-TS

Tipping containers are the industry’s best tool for waste sorting, waste and material handling.

  • Type:

    F-TS
  • Surface Treatment:

    Galvanizing or As Request
  • Product Details

Tipping containers are the industry’s best tool for waste sorting, waste and material handling.
- Designed, reinforced and powder coated to provide maximum safety and service life.
- Spring pressure plate on the base frame for automatic emptying.
- Also with manual tipping.
- Other sizes are manufactured on request.

TIPPO have reinforcements in the right places in order to deal with rough truck handling.
- Corner reinforcements raise the stiffness of the containers.
- Reinforced fork channels.
- The stop lug is well dimensioned in order to deal with the forces it can be exposed to.
- The automatic tipping function does not only provide greater efficiency, it also raises safety during emptying at greater heights as TIPPO cannot slide from the forks.
- Tipping containers are exceptionally suited to waste sorting.
- They can be supplied in colours as recommended by the public waste collection service.

Specification

Type Code Volume SWL Fork Pocket Size LxWxH Weight
F-TS15
03.01.03.0016
0.15cu.m
1200kg
200 x 100mm
815x760x580mm
99.14kg
F-TS30
03.01.03.0023
0.30cu.m
1500kg
200 x 100mm
1235x840x750mm
110kg
F-TS60
03.01.03.0024
0.60cu.m
2000kg
200 x 100mm
1525x865x870mm
125kg
F-TS90
03.01.03.0013
0.90cu.m
2000kg
200 x 100mm
1525x1215x870mm
140kg
F-TS110
03.01.03.0014
1.10cu.m
2000kg
200 x 100mm
1700x1215x1045mm
170kg
F-TS160
03.01.03.0025
1.60cu.m
2000kg
200 x 100mm
2073x1066x1248mm
256kg
F-TS200
03.01.03.0026
2.00cu.m
2000kg
200 x 100mm
2073x1316x1248mm
250kg
F-TS250
03.01.03.0027
2.50cu.m
2000kg
200 x 100mm
2073x1566x1248mm
269kg
F-TS300
03.01.03.0028
3.00cu.m
2000kg
200 x 100mm
2073x1866x1248mm
297kg
